900W Plug-In Solar Kit with APsystems EZ1 Microinverter + Philadelphia Solar 450W Bifacial Panels + IntegraRack | Home Solar Kit

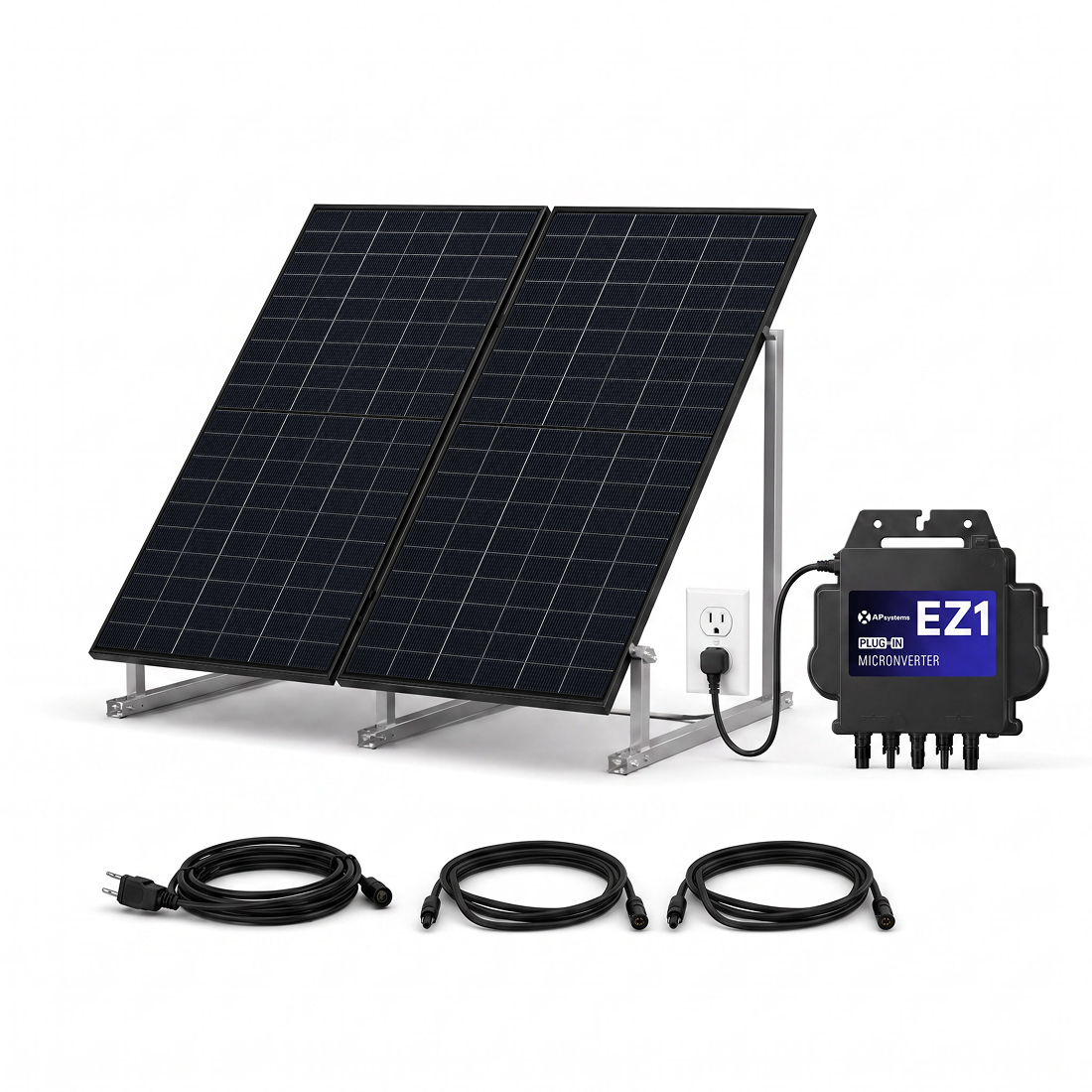

Complete panel, microinverter and ground-mount racking package. This kit pairs two Philadelphia Solar 450W Nexus N-Type bifacial solar panels with the APsystems EZ1 plug-in microinverter, three IntegraRack IR-30 fixed-tilt ballast frames and two Hoymiles 1-meter DC extension cables.

Need zero export? Shop the APsystems APMeter. This accessory monitors your home's electricity usage and adjusts the EZ1's output in real time to help limit excess solar power from being exported to the utility grid. Utility acceptance and local requirements must still be verified.

This Kit Includes

• (2) Philadelphia Solar 450W Bifacial Solar Panels, Nexus N-Type All Black
• (1) APsystems EZ1-LV-NA Plug-In Microinverter w/cord
• (2) Hoymiles 1M DC Extension Cables
• (3) IntegraRack 30° Single Frame BallastRack, Mill IR-30RF1030

Not Included: 1" steel conduit to join frames.

Will this work in your state? Check current plug-in solar requirements here.

900W Plug-In Solar Kit with Ground-Mount Racking

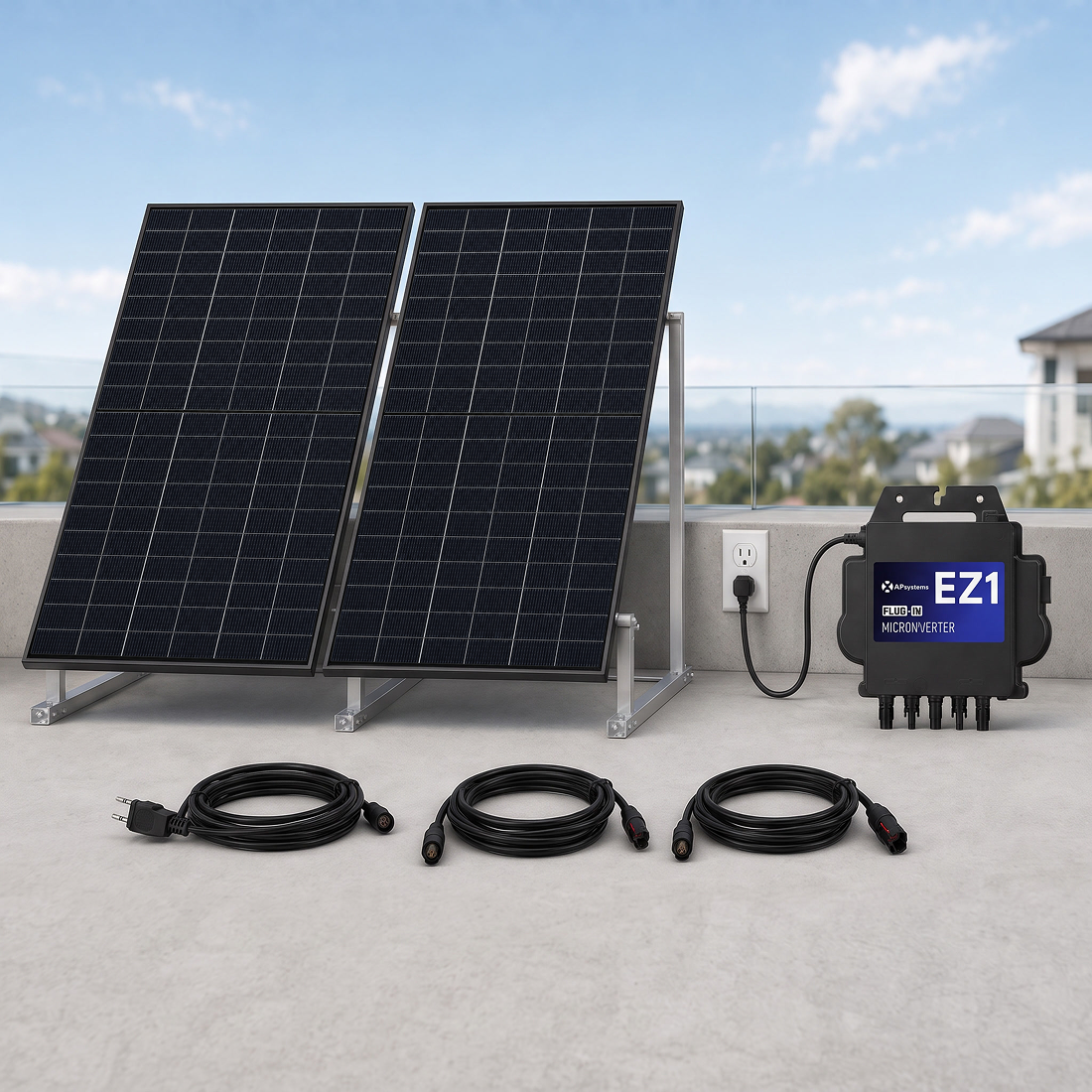

Start generating your own solar power with a compact package that combines two high-output bifacial solar panels, a plug-in microinverter, DC extension cables and ground-mount frames in one convenient kit. (Not included: 1" conduit pipe to join racking).

The included APsystems EZ1-LV-NA microinverter connects to both solar panels through two independent PV inputs and converts their DC power into 120V AC. With a maximum continuous output of 900VA AC, the EZ1 is well matched to this 900W DC two-panel array.

Two Hoymiles 1-meter DC extension cables are included to provide additional cable length between the solar modules and microinverter for greater flexibility when positioning the equipment.

The kit also includes three IntegraRack IR-30 frames for mounting the two panels together in a single row on an appropriate ground or structurally approved flat surface.

IntegraRack IR-30 Mounting System Included

The included IntegraRack IR-30 BallastRack Single Frames provide a simple fixed-angle mounting solution for compatible ground installations, concrete surfaces and other structurally approved flat surfaces.

• Three frames included: The kit includes three IR-30 frames for the two-panel array.
• Fixed 30-degree tilt: Positions the modules at a permanent 30-degree angle without requiring seasonal adjustment.
• INCLUDED HARDWARE
  ( 4 ) IR-F2 Flange Clamp Bonding Brackets
  ( 4 ) M8-1.25x90mm Carriage Bolts
  ( 4 ) M8-1.25 Serrated Nuts
  ( 4 ) M8-1.25x16mm Thread Cutting Bolts

Important: The 1-inch EMT/conduit used to connect the frames is not included and must be sourced locally. It is not required when mounting the frames directly to concrete. Ballast, anchors, foundations and other site-specific installation materials are also not included unless expressly stated.

Optional Accessories

• APMeter for zero export

• IntegraRack IR EarthBallast Mounting Kit For IR-30


Perfect For

• Homeowners exploring small-scale plug-in solar
• Supplemental daytime energy offset
• Backyards and compatible ground-mounted installations
• Garages, workshops, sheds and cabins
• Concrete patios or structurally approved flat surfaces
• Customers who want panels, microinverter, DC extensions and mounting frames in one package
• Customers who want app-based solar monitoring

APsystems EZ1 Plug-In Microinverter Features

The APsystems EZ1-LV-NA converts DC power from the two included Philadelphia Solar panels into 120V AC power. Each panel connects to its own independent input and MPPT channel.

Key advantages include:

• Two independent PV inputs and MPPT channels
• Maximum continuous AC output of 900VA
• 120V nominal AC output
• 27V to 45V MPPT voltage range
• 60V maximum DC input voltage
• 18A maximum input current per channel
• Built-in Wi-Fi and Bluetooth
• AP EasyPower app monitoring
• Rapid shutdown compliance support
• 12-year manufacturer warranty

Philadelphia Solar 450W Bifacial Solar Panels

• 450W rated power per panel
• 900W total DC nameplate capacity
• N-type solar cell technology
• Bifacial module design
• All-black

Product Specifications

Important Installation Notes

The equipment can be installed where the project complies with the electrical code, building code, permitting, interconnection and utility requirements that apply at the installation address.

• Grid-tied operation only. This kit does not include a battery and will not provide backup power during a utility outage.
• Three IR-30 frames are included. They are intended for the two panels when installed together in a single-row configuration according to IntegraRack requirements.
• 1" steel conduit is not included. Steel conduit used to join the IntegraRack frames must be sourced separately.
• Ballast and site-specific materials may still be required. The appropriate ballast, anchoring or foundation method depends on the installation site and applicable structural requirements.
• Two Hoymiles 1M DC extension cables are included. Confirm cable routing, connector compatibility and installation requirements before assembly.
• Local plug-in solar requirements apply. Installation may require utility notification or approval, a permit, a dedicated circuit, a smart meter or a licensed electrician.
• Do not mount the system to a balcony railing. The IR-30 is a ballast-base frame and should not be represented as a railing-mounted balcony system.
• Best for supplemental power. This system is not intended to offset an entire home's electricity consumption.

This kit is best suited for customers familiar with basic electrical and mounting practices or customers working with a qualified installer. Always verify current requirements before installation or connection.

Frequently Asked Questions

Click a question to view the answer.

Product specifications, racking requirements, wind and snow ratings, utility rules and local codes can change. Always follow current manufacturer instructions and verify the proposed installation with the appropriate professionals and authorities.
