IntegraRack IR-30 Fixed 30° BallastRack Ground-Mount Frame | IR-30RF1030

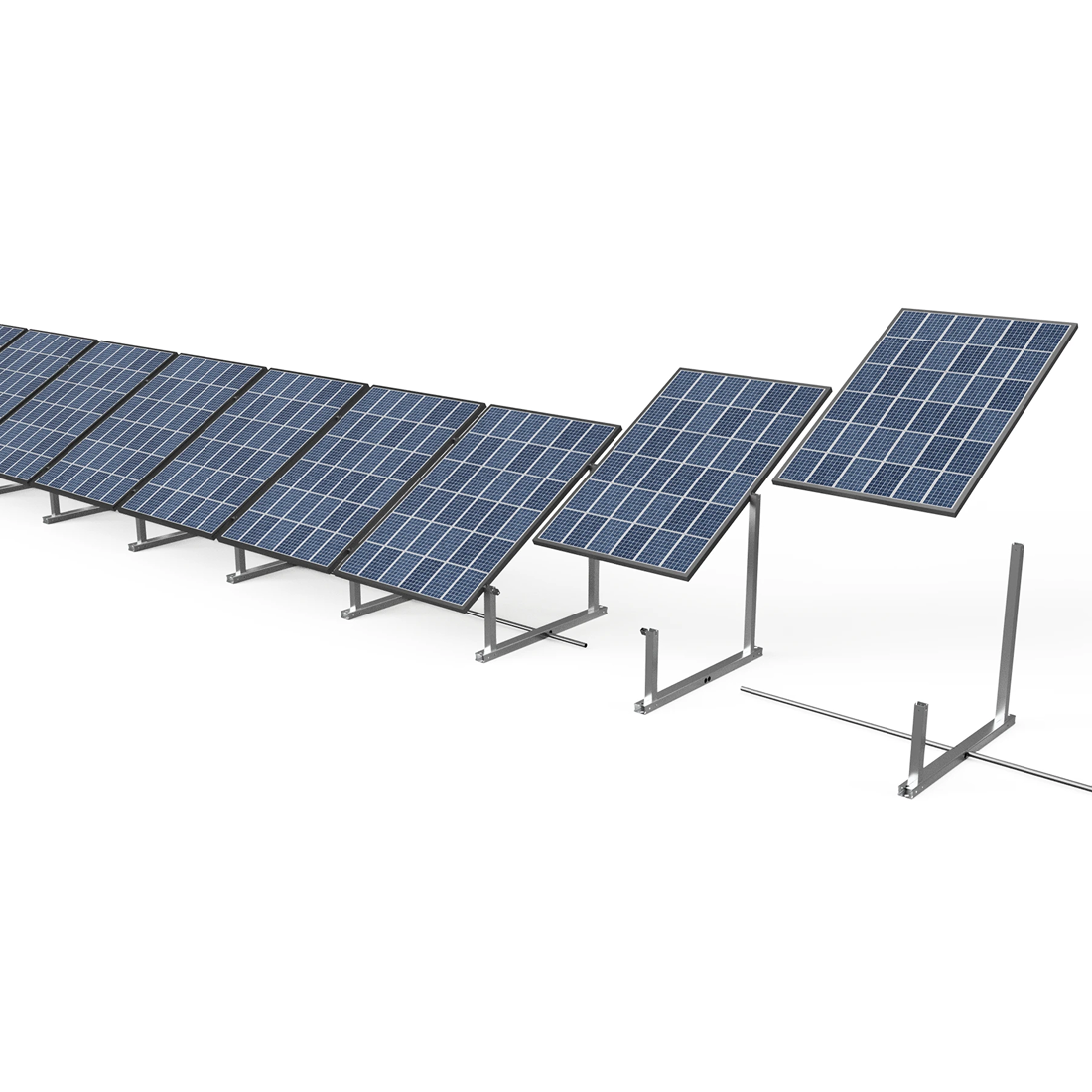

Sold as one frame section. A complete row requires one IR-30 frame per solar panel plus one additional frame at the beginning of the row. For example, two panels installed together in one row require three frames.

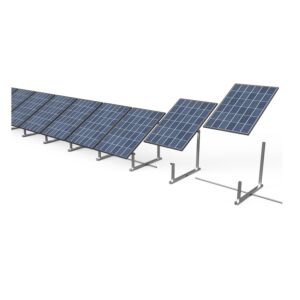

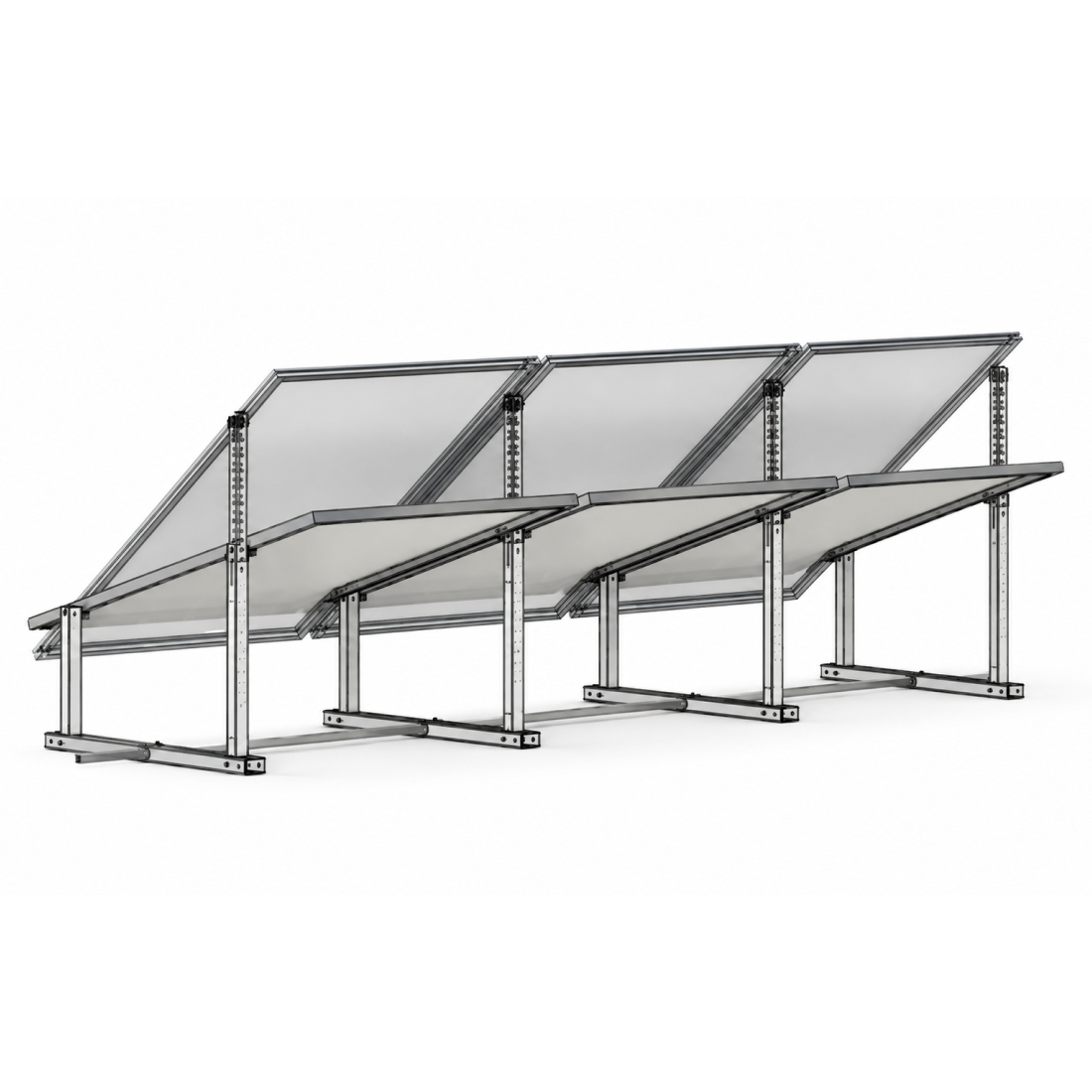

The IntegraRack BallastRack IR-30 is a lightweight, fixed 30-degree ground-mount frame designed for fast, rail-free solar panel installation. The universal frame supports multiple panel sizes and can be installed using compatible ballasted, EarthBallast™, AnchorSpike™ or bolted foundation methods.
Each frame weighs approximately 10 lb and is constructed from corrosion-resistant 6061-T6 aluminum with steel IR-F2 module bonding clamps. The IR-30 is designed for residential, agricultural and light commercial ground-mount arrays where straightforward installation and flexible foundation options are important.
Solar panels, ballast and foundation accessories are not included. Select the foundation method and required components according to the current IntegraRack instructions, project design, soil conditions, module size and local requirements.
Key Benefits
- Fixed 30-degree tilt for a simple, consistent ground-mount layout
- Lightweight 10 lb frame for easier handling and staging
- Rail-free module mounting using the included IR-F2 flange clamp bonding brackets
- Multiple foundation options for different terrain and project requirements
- Universal module design that supports a wide range of solar panel sizes
- Up to 2 feet of ground clearance, depending on module size and placement
- Made in the USA with aircraft-grade aluminum
- 25-year limited manufacturer warranty
What Is Included

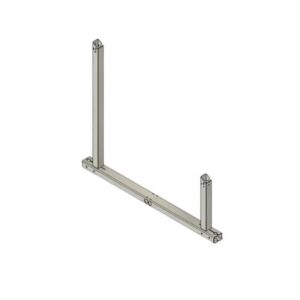

- (1) IR-30 base tube
- (1) IR-30 long leg
- (1) IR-30 short leg
- (4) IR-F2 solar module flange clamp bonding brackets
- (4) M8-1.25 x 90mm carriage bolts
- (4) M8-1.25mm serrated nuts
- (4) M8-1.25 x 16mm thread-cutting bolts
Not included: Solar panel, ballast, curb stops, EarthBallast™ materials, AnchorSpike™ components, concrete foundations, electrical grounding equipment and installation tools unless specifically stated elsewhere in the order.
Foundation Options
- Base Frame Ballasted: Uses approved ballast such as compatible curb stops or other methods specified by IntegraRack.
- IR EarthBallast™: Uses the approved mesh system with compacted native soil or rock to provide hold-down weight.
- IR AnchorSpike™: Uses compatible barbed anchors in suitable compacted soil. Soil and frost-depth limitations apply.
- Base Frame Bolted: Attaches the frame to an appropriately designed concrete slab or footing and provides the highest published wind rating.
Foundation selection and ballast requirements are site-specific. Always use the current IntegraRack engineering tables and installation instructions for the selected module size, wind speed, snow load and site conditions.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | IntegraRack |
| Model / MPN | IR-30RF1030 |
| Product Type | Single fixed-angle ground-mount frame section |
| Tilt Angle | 30° fixed |
| Frame Weight | Approximately 10 lb |
| Material | 6061-T6 aircraft-grade aluminum frame with steel IR-F2 flange clamps |
| Finish | Mill aluminum |
| Module Size Guidance | Published load tables include modules up to 24 sq. ft. and up to 32 sq. ft.; reduced ratings apply to the larger module category |
| Frame Quantity | One frame per module plus one additional frame at the beginning of each row |
| Reference Row Spacing | 12 ft. 6 in. on-center at 30°; actual spacing depends on module dimensions, terrain, latitude and project design |
| Ground Clearance | Up to approximately 2 ft., depending on module size and placement |
| Foundation Options | Base Frame Ballasted, IR EarthBallast™, IR AnchorSpike™ or Base Frame Bolted |
| Published Wind Ratings | Ratings vary by foundation and module area. See the current IntegraRack engineering tables before design or installation. |
| Published Snow Ratings | Up to 100 psf for modules up to 24 sq. ft. and 65 psf for modules up to 32 sq. ft., subject to current engineering requirements |
| Bonding | Uses IR-F2 module bonding clamps; install according to current IntegraRack bonding and grounding instructions |
| Warranty | 25-year limited manufacturer warranty |
Published wind and snow ratings are maximum reference values, not a site-specific approval. Actual requirements depend on module dimensions, foundation method, ballast or hold-down capacity, exposure category, terrain, local design wind speed, snow load and applicable codes.
Important Ordering and Installation Notes
- This listing is for one frame section. Order the correct quantity for the number of panels and rows in your design.
- Foundation components are selected separately. The required method depends on the site and engineering criteria.
- Confirm panel compatibility. Review module dimensions, frame thickness, clamp zones and the appropriate load category before ordering.
- Follow current manufacturer documents. Installation drawings, engineering tables and bonding instructions control over this product summary.
- Check local requirements. Permitting and structural requirements vary by location and installation method.
Frequently Asked Questions
Is this a complete rack for one solar panel?
No. This listing includes one frame section. IntegraRack specifies one frame per panel plus one additional frame at the beginning of each row. One panel in its own row requires two frames, two panels in one row require three frames and six panels in one row require seven frames.
Are ballast and foundation parts included?
No. Ballast, EarthBallast™, AnchorSpike™, concrete foundations and other site-specific installation materials are sold separately. Select the foundation system using the current IntegraRack documentation and the project requirements.
Can the IR-30 support large-format solar panels?
The IR-30 is designed for a wide range of module sizes. Published engineering tables provide separate ratings for modules up to 24 sq. ft. and up to 32 sq. ft. Larger modules receive reduced wind and snow ratings. Confirm the exact module dimensions, clamp zones and applicable engineering before ordering.
How do I confirm that my solar panel is compatible?
Check the panel's overall dimensions, total area, frame thickness and manufacturer-approved clamp zones against the current IntegraRack documentation. Published engineering tables provide separate ratings for modules up to 24 sq. ft. and up to 32 sq. ft. Reduced wind and snow ratings apply to the larger module category. Modules outside the published categories require confirmation from IntegraRack or a qualified project engineer.
Can the IR-30 be installed on a concrete patio?
It may be installed using an approved ballasted or bolted design when the surface and foundation can support the required loads. A qualified professional should confirm structural capacity, attachment or ballast requirements, wind uplift and local approval before installation.
Can I use it on a deck or balcony?
The IR-30 is a ground-mount frame, not a balcony-railing mount. Do not place or attach it on an elevated deck, terrace or balcony unless a qualified professional approves the structure, wind-uplift design, ballast or attachment method, setbacks and local compliance.
Does this installation require a permit?
Requirements vary by location and installation method. Some movable or ballasted installations may be treated differently from systems attached to permanent foundations. Always confirm permitting, structural and electrical requirements with the local Authority Having Jurisdiction before installation.
About IntegraRack
IntegraRack is a U.S.-based manufacturer of rail-free ballasted solar racking for ground and roof applications. Its modular systems are designed for fast assembly, adaptable foundation options and demanding wind and snow conditions when installed according to the applicable engineering.
Why Buy From US Solar Supplier?
US Solar Supplier is an American-founded company based in Kentucky. We work with established solar manufacturers to offer competitive pricing, dependable equipment and manufacturer-backed warranties.
Need assistance?
Call us at 1-800-230-7004. Our team can help with product details, compatible components and ordering questions.
- Expert U.S. support
- Manufacturer-backed products
- Secure online checkout
Specifications and manufacturer requirements can change. Always verify the current IntegraRack installation instructions, engineering tables and warranty terms before ordering or installation.
