1180W Plug-In Solar Kit with APsystems EZ1 Microinverter + HanerSun 590W Panels | Home Solar Kit

Racking is not included. See the optional IntegraRack mounting information below before selecting a mounting solution.

Need zero export? Shop the APsystems APMeter. This accessory monitors your home's electricity usage and adjusts the EZ1's output in real time to help limit excess solar power from being exported to the utility grid. Utility acceptance and local requirements must still be verified.

Free pickup in Houston or Dallas, Texas.

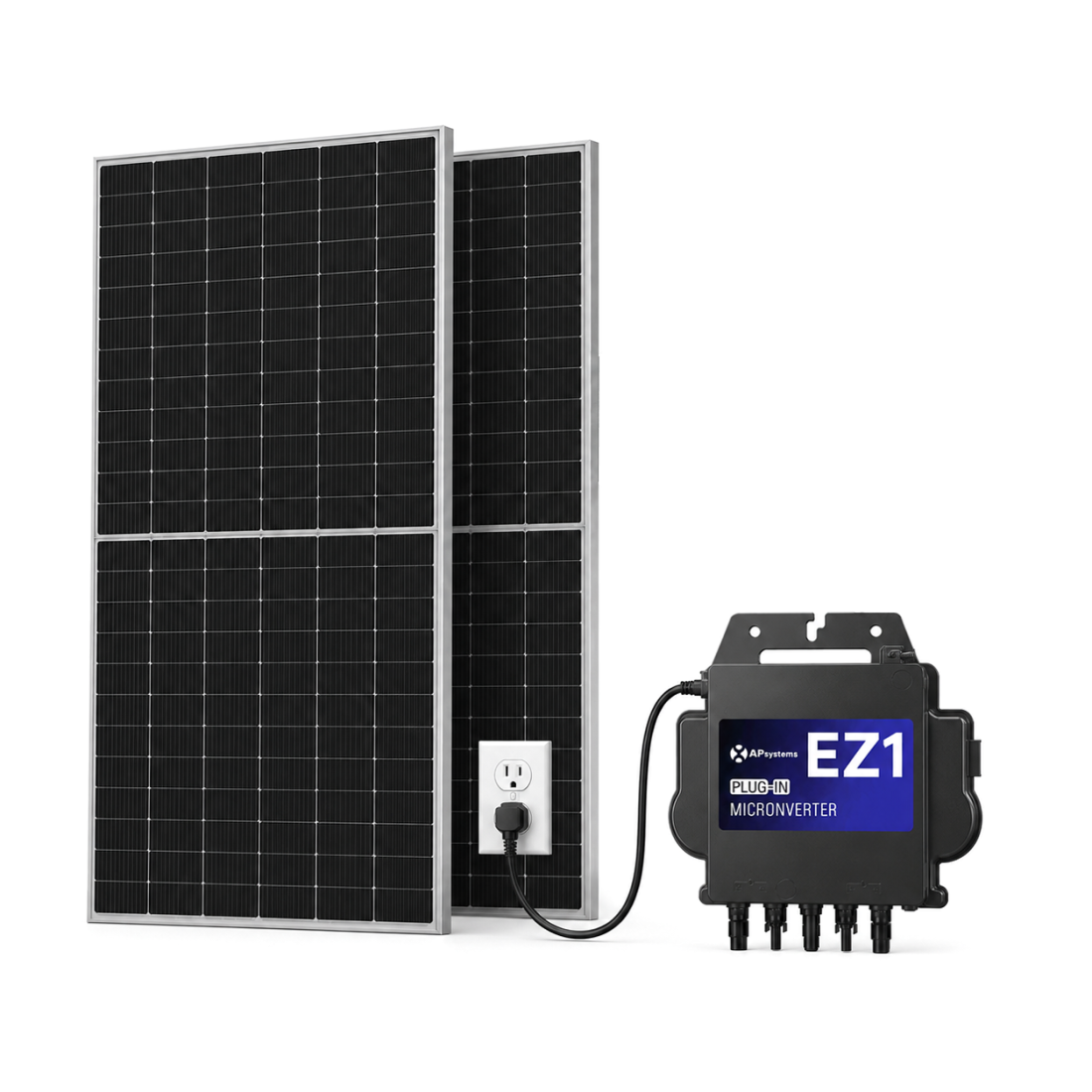

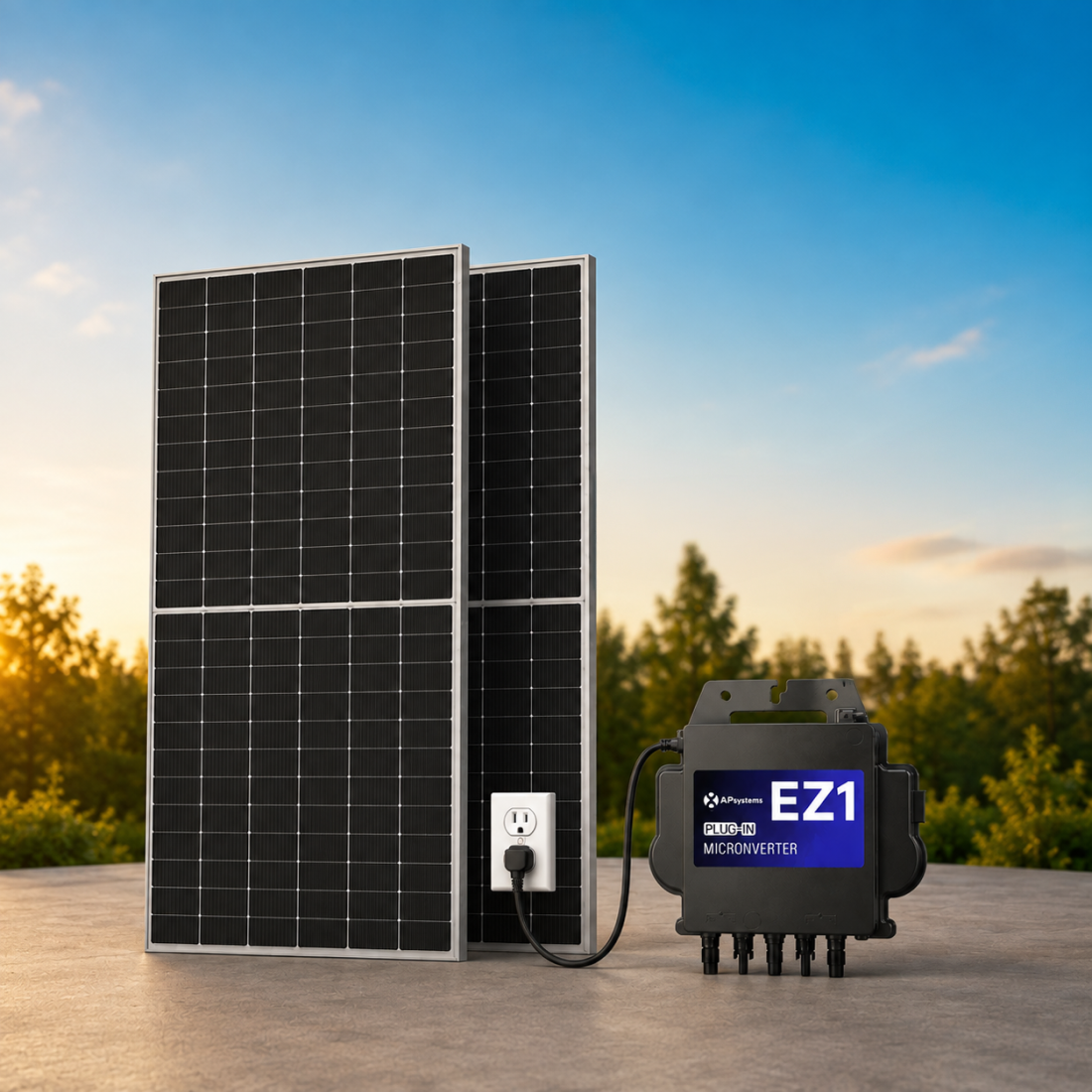

This Kit Includes

• (2) HanerSun 590W HN18N-72HT590W N-Type TOPCon Bifacial Dual-Glass Solar Panels
• (1) APsystems EZ1-LV-NA Plug-In Microinverter
• (1) APsystems EZ1 US Power Cord, 5m, 18AWG
• (2) 1M DC Extension Cables

Will this work in your state? Check current plug-in solar requirements here.

Flexible Home Solar Kit

Looking for a simple way to start generating your own solar power without installing a full-size home system? This 1180W DC Plug-In Solar Kit is designed for homeowners, garages, workshops, sheds and cabins that need a compact system for supplemental daytime energy production.

The two HanerSun 590W panels use N-type TOPCon cells and bifacial dual-glass construction. Their bifacial design can capture additional reflected light from the rear when mounting and site conditions allow.

The solar panels provide a combined nameplate rating of 1180W DC. The APsystems EZ1 microinverter has a maximum continuous output of 900VA AC, so output from the AC connection will not exceed the inverter rating.

Racking is sold separately, giving customers the ability to select an appropriate roof, ground or approved flat-surface mounting system for the property.

Optional IntegraRack Mounting

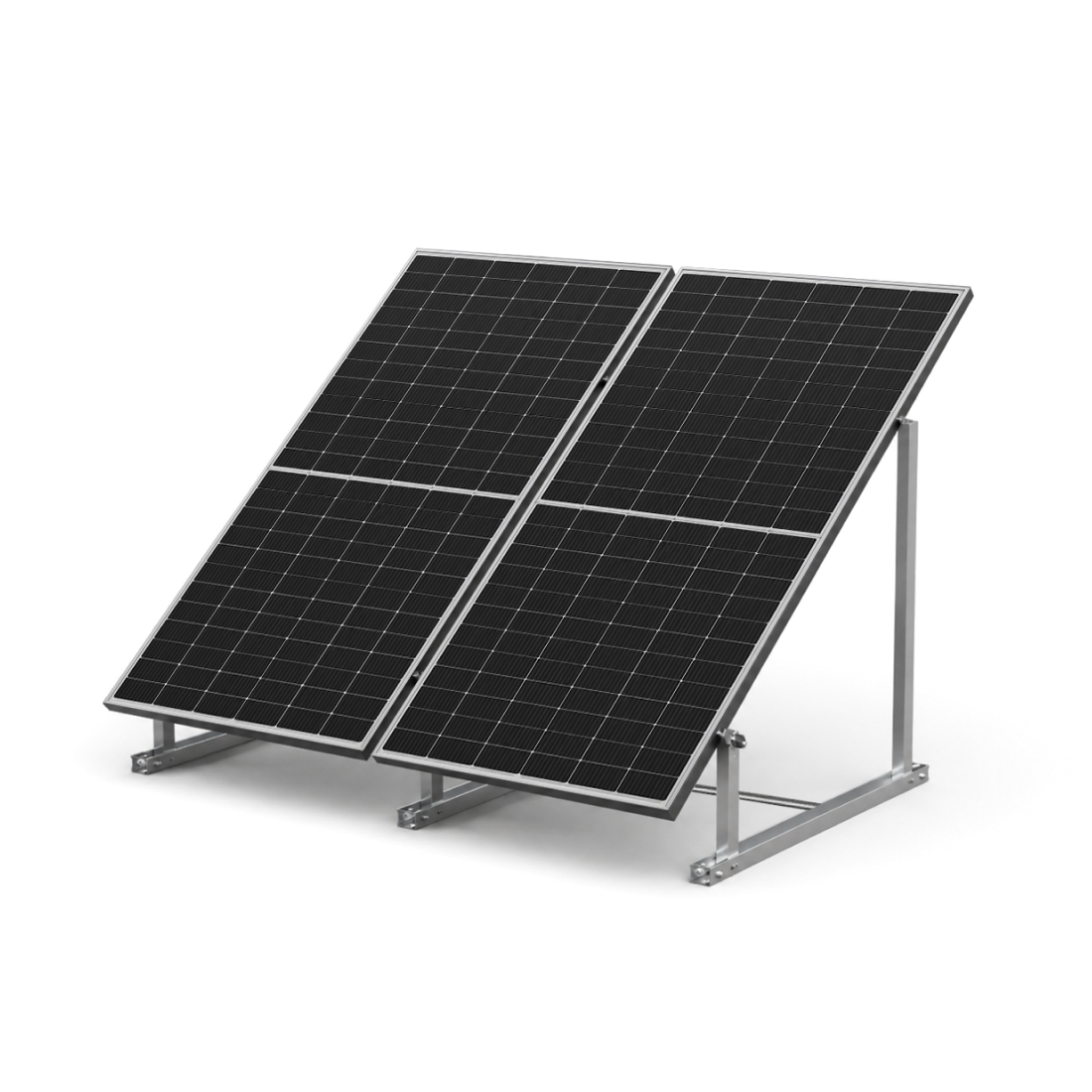

For ground installations, concrete patios or other structurally approved flat surfaces, consider the IntegraRack IR-30 BallastRack Single Frame. Its fixed 30-degree design is the simpler, lower-profile option for this kit.

• Panel size compatibility: Each HanerSun panel measures approximately 28.2 sq. ft., which falls within IntegraRack's published guidance for modules up to 32 sq. ft. Reduced wind and snow ratings apply to larger modules.
• Frame quantity: IntegraRack specifies one IR-30 frame per module plus one additional frame at the beginning of each row. Two panels installed in one row generally require three IR-30 frames.
• Sold separately: Ballast, anchors, foundations and other installation materials are not included with this solar kit and may not be included with a single IR-30 frame.
• Not a balcony-railing mount: The IR-30 should not be presented as a railing-mounted balcony rack.

Want adjustable tilt? The IntegraRack IR-45ASAB Adjustable BallastRack offers 15-degree to 45-degree settings for compatible ground installations. It sits higher and wind ratings decrease as tilt increases, so it is not the better default for a deck or balcony. The HanerSun panel is approximately 28.2 sq. ft., slightly larger than the 28 sq. ft. module category shown in the IR-45ASAB published load table. Confirm compatibility and site-specific ratings with IntegraRack before ordering.

Deck and balcony warning: Do not place or attach this system on a deck, terrace or balcony until a qualified professional confirms structural load capacity, wind-uplift resistance, ballast or attachment requirements, setbacks and local approval. Each HanerSun panel is approximately 89.7 x 44.6 inches and weighs 68.1 lb before racking or ballast is added.

Key Benefits

• 1180W DC solar array using two high-output bifacial panels
• Two-panel HanerSun package without the larger minimum quantity required for standalone panel orders
• 900VA APsystems EZ1 microinverter with two independent panel inputs
• Wi-Fi and app monitoring through the AP EasyPower app
• N-type TOPCon panel technology with 22.8% module efficiency
• Bifacial dual-glass panels for rear-side energy collection when site conditions allow
• Optional APMeter available for approved zero-export configurations
• Racking sold separately so customers can select the correct system for the installation

Perfect For

• Homeowners exploring small-scale plug-in solar
• Supplemental daytime energy offset
• Garages, workshops, sheds and cabins
• Compatible roof or ground-mount systems using separately purchased racking
• Patio or flat-surface installations that have been structurally reviewed and approved
• Customers who want module-level monitoring

APsystems EZ1 Plug-In Microinverter Features

The APsystems EZ1-LV-NA converts DC power from the two solar panels into 120V AC power. Each panel connects to its own independent input and MPPT channel.

Key advantages include:

• Two independent PV inputs and MPPT channels
• Maximum continuous AC output of 900VA
• 120V nominal AC output
• 27V to 45V MPPT voltage range
• 60V maximum DC input voltage
• 18A maximum input current per channel
• Built-in Wi-Fi and Bluetooth
• AP EasyPower app monitoring
• Rapid shutdown compliance support
• 12-year manufacturer warranty

HanerSun 590W Bifacial Solar Panels

The included HanerSun HN18N-72HT590W modules use N-type monocrystalline TOPCon cells with bifacial dual-glass construction for high output and long-term durability.

Panel Highlights

• 590W rated power per panel
• 22.8% module efficiency
• 144 N-type monocrystalline TOPCon cells
• Bifaciality of 80% ± 5%
• 2.0mm front glass and 2.0mm rear glass
• Dimensions: 89.7 x 44.6 x 1.18 in. per panel
• Weight: 68.1 lb per panel
• 15-year product warranty and 30-year linear power warranty

Product Specifications

Important Installation Notes

The equipment can be installed throughout the United States when the project complies with the electrical code, building code, permitting, interconnection and utility requirements that apply at the installation address.

• Grid-tied operation only. This kit does not include a battery and will not provide backup power during a utility outage.
• Racking is not included. Select a mounting system specifically approved for the panels, structure and site conditions.
• Local requirements apply. Installation may require utility notification or approval, a permit, a dedicated circuit, a smart meter or a licensed electrician.
• Best for supplemental power. This system is not intended to offset an entire home's electricity use.

This kit is best suited for customers familiar with basic electrical and mounting practices or customers working with a qualified installer. Always verify requirements before installation or connection.

Frequently Asked Questions

Click a question to view the answer.

Product specifications, racking requirements, wind and snow ratings, utility rules and local codes can change. Always follow current manufacturer instructions and verify the proposed installation with the appropriate professionals and authorities.
