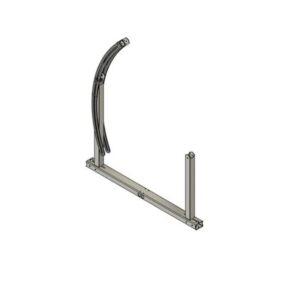

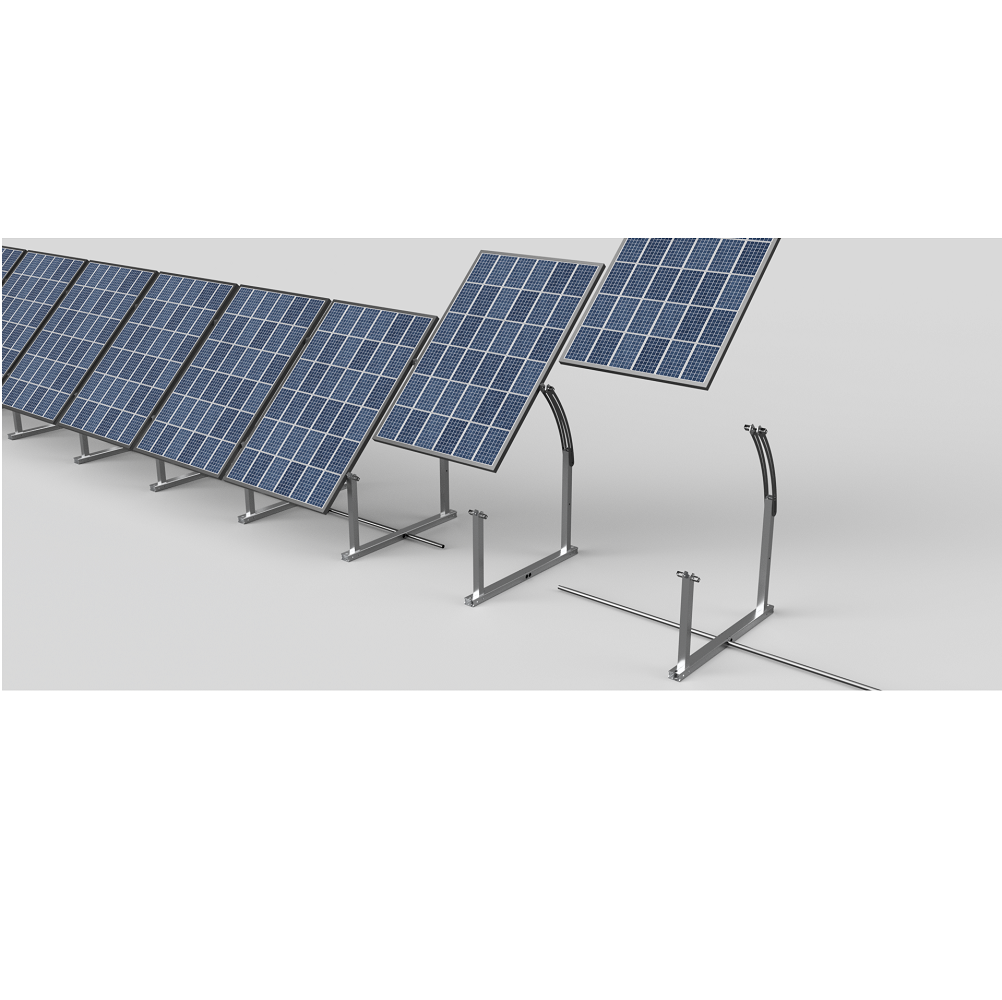

The IntegraRack IR-45ASAB0047 is a tilt-adjustable (15°–45°) ground-mount racking frame designed for high wind/snow regions and rapid deployment. The system supports multiple foundations—bolted, ballasted, EarthBallast™, or AnchorSpike™—with tested wind and snow performance and clear row-spacing guidance for layout planning.
Key Benefits
Flexible Foundations: Choose Base Frame Bolted, Base Frame Ballasted, IR EarthBallast™, or IR AnchorSpike™ to match soil/site conditions.
Wide Tilt Range: Field-adjustable angles from 15° up to 45° to optimize seasonal production and mitigate snow. }
Proven Loads: Published maximum wind speeds by tilt and module size; snow rating up to 100 psf (≤24 ft² modules).
Material Options: 6061-T6 aluminum frame or black-zinc plated high-strength steel variant; stainless/steel brackets as listed.
Special Technology
IR EarthBallast™: Epoxy mesh + native fill creates a high-capacity earthen ballast (≥1200 lb per module) without concrete.
IR AnchorSpike™: Barbed anchors epoxy-bonded in compacted soils (≥1000 lb uplift test per spike) for non-concrete anchoring.
Warranty
The IntegraRack model IR-45ASAB0047 carries a 25-year limited product warranty.
Best Uses
Residential, Agricultural & Light C&I: Sites needing adjustable tilt, multiple foundation choices, and verified wind/snow performance.
Specifications Table
| Specification | Data |
|---|---|
| Model | IR-45ASAB0047 |
| Tilt Angle (Adjustable) | 15°, 20°, 25°, 30°, 35°, 40°, 45° positions |
| Materials | 6061-T6 Aluminum frame; Black-zinc plated high-strength steel (ASAB) option |
| Foundation Options | Base Frame Bolted; Base Frame Ballasted; IR EarthBallast™; IR AnchorSpike™ |
| Minimum Hold-Down (per module / section) | EarthBallast™: ≥1200 lb per module; Base Frame Ballasted: ≥525 lb per module (3×175 lb curbs); Base Frame Bolted: ≥1200 lb per frame section; AnchorSpike™: 2 spikes per section; ≥1000 lb uplift test per spike |
| Maximum Wind Speed (examples) | At 15°: up to 160 mph (≤24 ft²) with EarthBallast™/AnchorSpike™/Bolted; Ballasted frame up to 100 mph (≤24 ft²). Values vary by tilt and module area—see table below. |
| Maximum Snow Load | ≤24 ft² modules: 100 psf; ≤28 ft² modules: 65 psf |
| Row Spacing (on-center) | 15°: 10′-6″; 20°: 11′-2″; 25°: 11′-10″; 30°: 12′-6″; 35°: 12′-10″; 40°: 13′-2″; 45°: 13′-6″ |
| AnchorSpike Hole Spacing | 45.25″ hole-to-hole (template spacing) |
| Representative Module Size (example) | ~44.7″ × 67.8″ used in diagrams; height off ground & inter-frame spacing vary with angle and module size |
| Selected Components | Flange clamp, coupler bracket, adjustable angle brackets; 2″×2″×0.083″ tubes (Al) or 50×50×1.6 mm steel; base tube 3″×2″×0.083″ (Al) or 70×50×2 mm steel |
Wind Speed Reference (by Tilt, Foundation & Module Area)
| Tilt | Foundation | ≤24 ft² Module | ≤28 ft² Module |
|---|---|---|---|
| 15° | Ballasted | 100 mph | 85 mph |
| 15° | EarthBallast™ / AnchorSpike™ / Bolted | 160 mph | 140 mph |
| 20° | Ballasted | 90 mph | 80 mph |
| 20° | EarthBallast™ / AnchorSpike™ / Bolted | 150 mph | 130 mph |
| 25° | Ballasted | 85 mph | 75 mph |
| 25° | EarthBallast™ / AnchorSpike™ / Bolted | 135 mph | 115 mph |
| 30° | Ballasted | 80 mph | 70 mph |
| 30° | EarthBallast™ / AnchorSpike™ / Bolted | 120 mph | 110 mph |
| 35° | Ballasted | 75 mph | 65 mph |
| 35° | EarthBallast™ / AnchorSpike™ / Bolted | 115 mph | 100 mph |
| 40° | Ballasted | 70 mph | 60 mph |
| 40° | EarthBallast™ / AnchorSpike™ / Bolted | 110 mph | 95 mph |
| 45° | Ballasted | 65 mph | 55 mph |
| 45° | EarthBallast™ / AnchorSpike™ / Bolted | 100 mph | 90 mph |
About IntegraRack:
IntegraRack is a U.S.-based manufacturer of high-speed, ballasted solar racking systems for ground and roof installations. Their modular designs offer minimal-to-no concrete or HVAC penetrations, fast assembly, and certified performance in extreme wind/snow conditions.
