Bluetti RV5 RVSolar 48V Power Hub
Compatible Products:
Bluetti B4810 48V Lithium Battery Pack
Bluetti Epanel Distribution Panel (For RV Solar RV5)

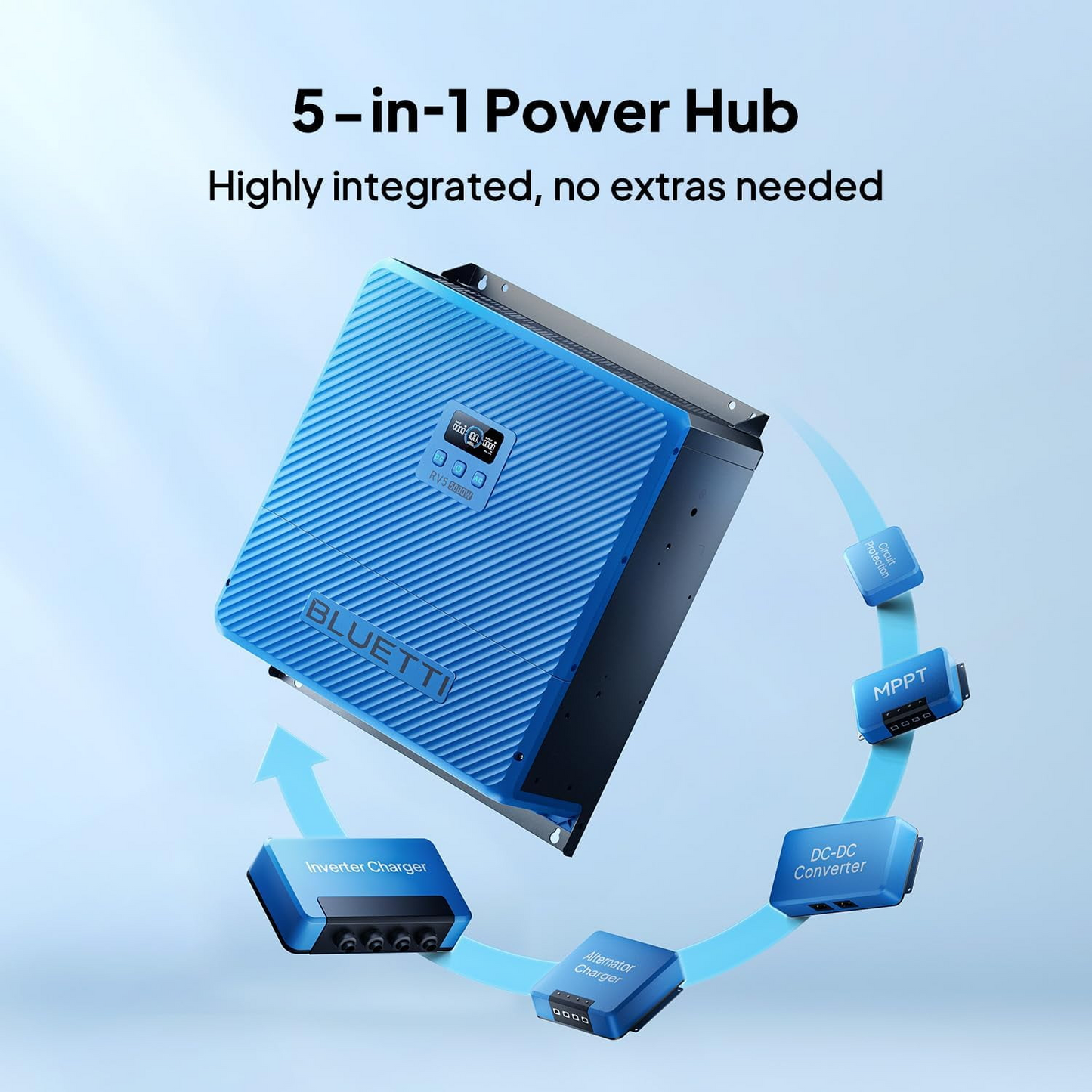

The BLUETTI RV5 is a 5-in-1 power hub that integrates solar MPPT charging, vehicle charging, a 5,000 W inverter/charger, battery charging, and a 48 V DC step-down module into one compact unit—built for RVs, boats, and off-grid systems. It pairs with BLUETTI batteries (e.g., B4810) and the Epanel/Epad for smart distribution and app control.
Key Benefits
All-in-One Hub: Consolidates AC charger/inverter, dual MPPT solar inputs, DC outputs, and 48 V DC-DC module—reducing BOS complexity.
Beefy AC Output: Up to 5,000 W at 120 Vac (≤42 A); ≤20 ms UPS switchover for sensitive loads.
Fast Charging Options: Shore/gen input (120 V) and EV-station input (208/240 V) modes; Turbo charge profile available in app.
High PV Throughput: Two independent PV inputs—each up to 1,800 W (12–50 V, 50 A)—for as much as 3,600 W total solar.
Smart DC Bus: Selectable 12 V (100 A) or 24 V (60 A) DC output for house loads and leveling systems.
App + Display: On-unit LCD plus Bluetooth/Wi-Fi app for setup, modes, current limits, and updates.
Special Technology
Neutral-Ground Bonding Relay: Auto-manages N-G bonding depending on grid presence for proper GFCI/RCD behavior.
Grid Self-Adaption: Mode to stabilize charging with generators or unstable sources; adjustable input limits in app.
Integrated Protection: Built-in DC/AC protections and clear error codes; UL458 certification listed.
Warranty
60-month (5-year) limited warranty from the date of original purchase for defects in material and workmanship when purchased new from an authorized seller.
Best Uses
RVs & Marine: 120 V AC + 12/24 V DC distribution with shore/gen/EV-station charging.
Off-Grid Cabins/Vans: High PV intake (up to 3.6 kW) with fast charge profiles and app control.
Specifications Table
| Specification | Data |
|---|---|
| Model | RV5 Power Hub |
| System Voltage | 48 V battery system (BLUETTI & compatible third-party packs) |
| AC Input (Shore/Gen) | 120 Vac, up to 42 A; ≤50 A bypass; Standard/Turbo/Silent charge modes |
| EV Charging Input | 208/240 Vac EV station (J1772 via adapter), up to 22 A (no bypass while charging) |
| AC Output | 120 Vac, up to 5,000 W (42 A), 60 Hz; UPS switchover ≤ 20 ms |
| PV Inputs | 2× MPPT, each 12–50 V, 50 A, 1,800 W (3,600 W total) |
| Vehicle Charging (PV2) | 12 V: 600 W max; 24 V: 1,200 W max; 50 A max current |
| DC Output | 12 V 100 A (1,360 W) or 24 V 60 A (1,620 W), selectable |
| Controls & Comms | LCD, Bluetooth, Wi-Fi; CAN & Ethernet ports for Epanel/Epad/B4810 integration |
| Neutral-Ground Bonding | Automatic relay (enabled via app) |
| Operating Temperature | −20°C to +45°C (load derating to +55°C) |
| Dimensions (W × H × D) | 17.72 × 19.69 × 6.30 in |
| Weight | 30.86 lb |
| Certification | UL458 (and regional compliance as listed) |
