BLUETTI Epad Central Control Screen for RV5/Epanel Systems

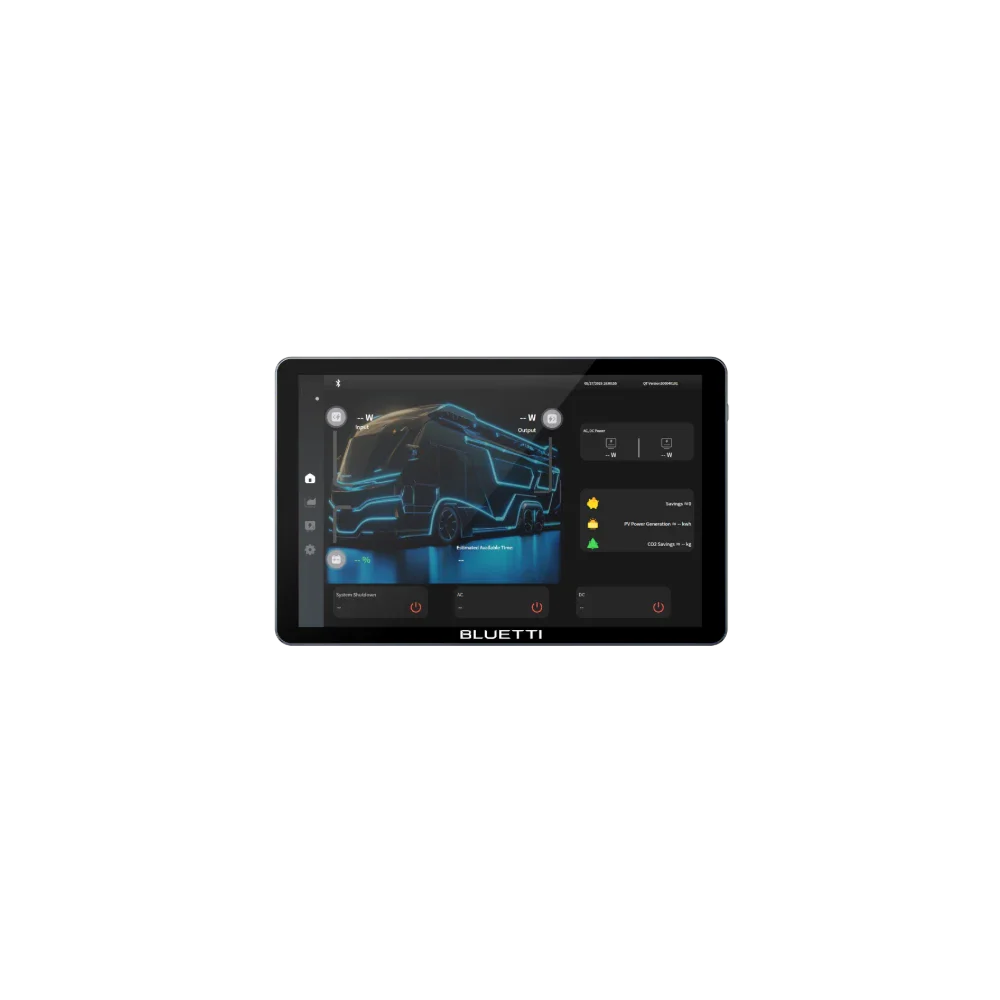

The BLUETTI Epad is a 10.1″ central control touch screen that powers, monitors, and manages BLUETTI RV5 based energy systems. With built-in CAN power/communications, dual dry-contact relays, sensor inputs, Wi-Fi/Bluetooth, and an Ethernet port, Epad delivers real-time insights and simple, app-ready control for whole-home, RV, and light-commercial installs.
Key Benefits
One-Touch System Control: 10.1″ capacitive LCD (1280×800) with ambient-light auto-brightness for a clear, responsive UI.
Powered via CAN or USB-C: Receives power from RV5/Epanel through BLUETTI CAN, or use 5 V/3 A USB-C as auxiliary power.
Built-In Automation: Two onboard relays (NC/NO/COM) support scheduling and device control (e.g., generator start).
Sensor-Ready: Inputs for NTC temperature probes and resistive liquid-level sensors (EU 0–180 Ω / US 240–30 Ω).
Connected & Updatable: Wi-Fi, Bluetooth 5.2, and Ethernet for app setup, firmware updates, and remote monitoring.
Special Technology
BLUETTI CAN Ports (×2): Non-isolated RJ45 with selectable termination for stable power + data to RV5/Epanel.
Local I/O Expansion: Dual dry contacts (30 V DC/3 A or 125 V AC/3 A), digital inputs, and analog channels for NTC and tank sensors.
Edge Storage & USB: microSD (SDHC, ≤32 GB) and dual USB-A (5 V/1.5 A total) for local logs/files and peripherals.
Warranty
Manufacturer Warranty (see BLUETTI terms).
Best Uses
RV5-Based ESS: Central HMI for BLUETTI RV5 + Epanel + B4810 battery stacks.
RV/Marine & Off-Grid: Monitor temps, tank levels, and automate loads via onboard relays.
Light Commercial: Ethernet-backed connectivity for local networks and dashboards.
Installation
Recessed (Wood) or Wall-Mount (Concrete): Includes brackets A/B, wood screws, wall anchors, drilling template. Leave ventilation clearance; enable CAN termination as required.
Specifications Table
| Specification | Data |
|---|---|
| Model | Epad (Central Control Screen) |
| Display | 10.1″ color LCD, 1280 × 800, capacitive touch; ambient light sensor |
| Power | Via BLUETTI CAN (from RV5/Epanel) or USB-C 5 V, 3 A max |
| Typical Consumption | ~6 W (screen on) / ~2.5 W (screen off) |
| Ports — BLUETTI CAN | 2 × RJ45 (non-isolated), selectable termination; power + comms |
| Networking | Wi-Fi 2.4 GHz; Bluetooth 5.2; Ethernet 10/100 Mbps (auto-negotiation) |
| Relays (Dry Contact) | 2 × (NO/NC/COM); 30 V DC/3 A; 125 V AC/3 A load capacity |
| Sensor Inputs | NTC temperature (R25=10 kΩ default; B25/85=3435 K), liquid-level (EU 0–180 Ω / US 240–30 Ω) |
| USB | USB-A ×2 (5 V/1.5 A total; flash drives ≤32 GB/port); USB-C input power |
| Storage | microSD (SDHC, ≤32 GB) |
| Protection Rating | IP20 (indoor) |
| Operating / Storage Temp | −10 °C to 55 °C / −20 °C to 55 °C |
| Dimensions (L × W × H) | 9.72 × 6.22 × 1.35 in, without brackets |
| Weight | 1.48 lb |
