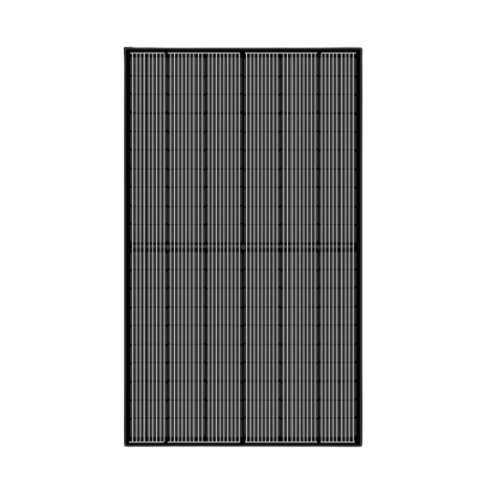

ZNShine Solar ZXM6-NH120-365-M 365Watt 120 1/2 Cells BoW Monocrystalline 35mm Black Frame Solar Panel

ZNShine Solar ZXM6-NH120-365-M 365Watt 120 1/2 Cells BoW Monocrystalline 35mm Black Frame Solar Panel

Regular price $273.50
Sale price $273.50 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: ZXM6-NH120-365-M

ZNShine Solar ZXM6-NH120-365-M 365Watt 120 1/2 Cells BoW Monocrystalline 35mm Black Frame Solar Panel

ZNShine Solar ZXM6-NH120-365-M 365Watt 120 1/2 Cells BoW Monocrystalline 35mm Black Frame Solar Panel

No reviews
Leave a Review
Regular price $273.50
Sale price $273.50 Regular price

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Znshine Solar
Weight
45.19 lb
Dimension
(LxWxH): 69.09 x 40.86 x 1.37 Inches
ZNShine Solar ZXM6-NH120-365-M 365Watt 120 1/2 Cells BoW Monocrystalline 35mm Black Frame Solar Panel

Made with selected materials and components to grant quality, duration, efficiency and through outputs, the ZXM6-NH120 monocrystalline modules by ZNShine Solar, represent a highly flexible solution for diverse installation types, from industrial rooftop plants to small home PV systems or large ground surfaces. This allows you to produce clean energy while reducing your energy bill. Excellent Cells Efficiency - 9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase Better Weak Illumination Response - More power output in weak light condition, such as haze, cloudy, and morning 25 Years Power Warranty - After 25 years our solar panel keeps at least 80% of its initial power output





ZNShine Solar's Specification

Model Znshinesolar 9BB HALF-CELL Black Mono PERC PV Module
Series ZXM6-NH120
Manufacturer ZNShine


MECHANICAL

Specification Data
Cell Type Mono-crystalline
Cell Arrangement 166×83mm 120(6×20)
Dimensions 1755×1038×35
Weight 20.5 kg
Front / Back Glass High transparency,low iron,tempered Glass 3.2 mm (AR-coating)
Frame Anodized aluminium alloy
J-Box IP68, 3 diodes
Cable 4 mm² ,350 mm
Cable Length (Including Connector) 350mm MC4-compatible*


ELECTRICAL

Nominal Max. Power (Pmax) 365 W
Opt. Operating Voltage (Vmp) 34.0 V
Opt. Operating Current (Imp) 10.74 A
Open Circuit Voltage (Voc) 40.8 V
Short Circuit Current (Isc) 11.33 A


Warranty

  • linear power output 25 years warranty
  • enhanced product 12 years warranty on materials and workmanship

* Refer to warranty document for terms and conditions

Documentation

Data Sheet


Detailed Information

ZNSHINE SOLAR’S ZXM6-NH120 Monocrystalline solar modules are tested and approved by international acknowledged laboratories, so that we can offer our customers a reliable and price-quality optimized product. The linear warranty on product outputs further ensures increased security and return on investments over time.

High reliability

Certified to withstand the most challenging environmental conditions 5400 Pa snow load 2400 Pa wind load

Graphene Coating Graphene coating modules can increase power generation and self-cleaning, also can save maintenance cost

Quality and certifications

IEC61215/IEC61730/IEC61701/IEC62716/UL61730

ISO 9001: Quality Management System

ISO45001: Occupational Health and Safety Management System

ISO 14001: Environmental Management System
