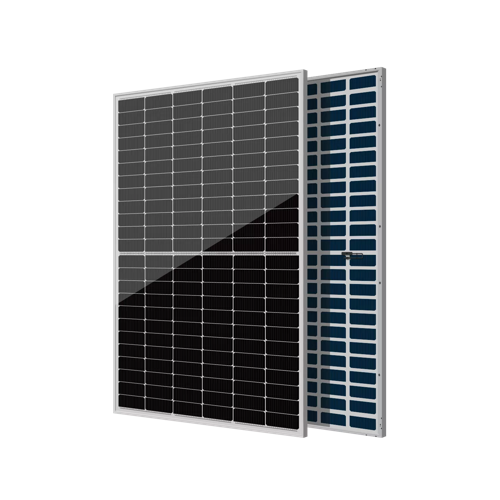

ZnShine 595W N-Type TOPCon Bifacial Solar Panels

Pallet of 36 | Double Glass | ZXM7-UHLDD144-595W

595W per Panel | 21.42kW DC per Pallet | 23.03% Module Efficiency
Build a high-output solar array with 36 ZnShine 595W panels featuring N-type TOPCon cells, bifacial energy production, and double-glass construction. Sold by the full pallet.

This Pallet Includes

• 36 × ZnShine ZXM7-UHLDD144-595W solar panels
• 595W front-side rated output per panel
• 21,420W / 21.42kW total front-side rated DC capacity

Inverters, batteries, racking, and other installation equipment are sold separately.

High-Output Solar for Larger Projects

The ZnShine ZXM7-UHLDD144-595W combines N-type TOPCon cells with a 144 half-cell layout and 16-busbar technology. With 595W of front-side rated output and 23.03% module efficiency, it provides high power output for commercial rooftops, ground-mounted arrays, and larger solar installations.

Each pallet provides 21.42kW of front-side rated DC capacity. These large-format modules are suited to projects where the mounting structure and electrical equipment can accommodate their dimensions, weight, and output.

The bifacial rear surface captures reflected sunlight, allowing additional energy production when the installation provides suitable rear-side exposure.

Product Highlights

• 595W front-side rated output per panel
• 36 panels per pallet for 21.42kW of rated DC capacity
• 23.03% module efficiency
• N-type TOPCon monocrystalline cells
• 144 half-cells in a 6 × 24 layout
• 16-busbar technology for efficient current collection
• Bifacial double-glass construction
• 2.0mm front glass and 2.0mm rear glass
• Designed to resist potential-induced degradation
• IP68-rated junction box with three bypass diodes
• 12-year product warranty
• 30-year linear power output warranty

Perfect For

• Commercial and industrial rooftop solar
• Ground-mounted solar arrays
• Agricultural buildings and farm solar projects
• Utility-scale solar installations
• Compatible solar tracker systems
• Engineered solar carports and canopy structures
• Larger residential projects with suitable mounting space

Bifacial Production from Both Sides

The 595W nameplate rating measures front-side output under standard test conditions. Reflected sunlight reaching the rear surface can provide additional production beyond that rating.

Rear-side gains depend on mounting height, row spacing, shading, and ground reflectivity. Elevated arrays with open rear exposure can make better use of the bifacial design than panels mounted close to a roof.

The datasheet includes a reference scenario with 25% rear-side power gain, listing approximately 743W of combined output for the 595W model. This is an illustrative test scenario, not a guaranteed field output.

The 80% ±10% bifacial factor describes the rear side’s response relative to the front under comparable illumination. It does not mean the panel produces 80% more energy.

N-Type TOPCon and Half-Cell Technology

N-type TOPCon cells, a half-cell layout, and 16-busbar connections support efficient power collection within the module. The design reduces the distance current travels through the cell’s collection grid, helping limit internal electrical losses.

The module also incorporates resistance to potential-induced degradation and is designed to produce electricity under lower-light conditions. Actual production varies with sunlight, temperature, orientation, and shading.

Double-Glass Construction for Outdoor Use

The module combines 2.0mm front and rear glass with an anodized aluminum frame and an IP68-rated junction box. Its operating temperature range is -40°F to 185°F.

Manufacturer-listed static loading is up to 5,400Pa on the front and 2,400Pa on the rear. Applicable load capacity depends on the approved mounting arrangement and installation requirements.

Product Specifications

Mounting and Equipment Compatibility

Each panel measures approximately 89.69 × 44.65 inches and weighs 69.45 pounds. Select racking that accommodates the module dimensions, 30mm frame, approved clamp locations, and site-specific wind and snow loads.

Inverter and charge controller selection must account for string voltage, operating current, short-circuit current, and installation temperatures. Additional current from rear-side production must also be considered when sizing electrical equipment.

This listing includes solar panels only. Racking, inverters, batteries, extension cables, and other installation materials are sold separately. Confirm the supplied connector type and complete system compatibility before ordering accessories.

Frequently Asked Questions

About ZnShine Solar

ZnShine Solar manufactures photovoltaic modules for residential, commercial, and utility-scale installations. Its product range includes N-type TOPCon modules with bifacial double-glass construction.
