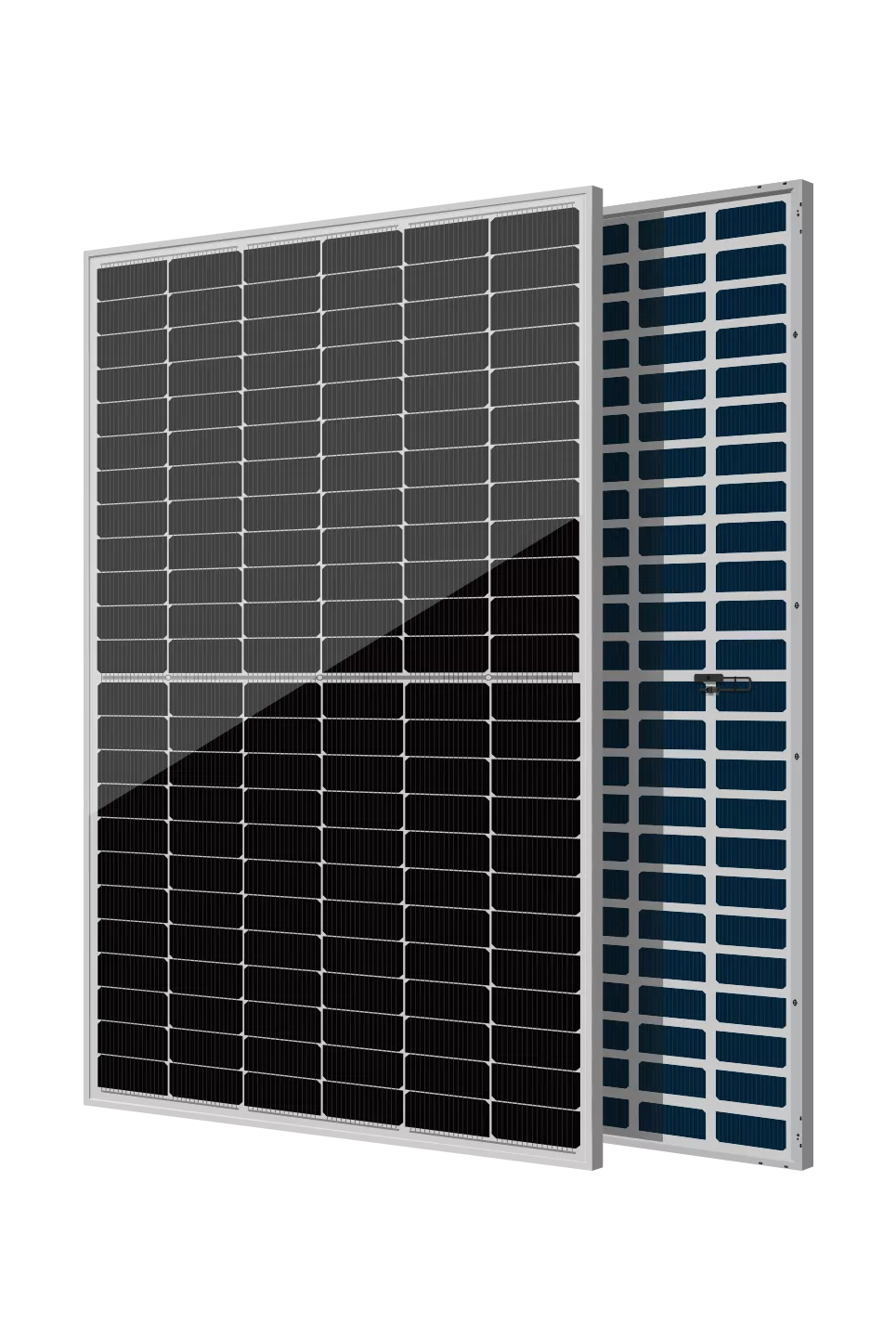

ZNShine 585W N-Type TOPCon Bifacial Silver Frame Solar Panel ZXM7-UHLDD144-585
California Energy Commission (CEC) Listed
Built with 16BB half-cell technology and advanced SMBB design, the module improves current collection and reduces internal resistance for higher power output. The bifacial architecture enables up to 25% additional energy gain from the rear side depending on installation conditions and ground reflectivity.
Key Technology
-
N-Type TOPCon Cell Technology
Provides higher efficiency, better temperature performance, and lower degradation compared to conventional P-type modules. -
16BB Half-Cell Design
Improves current collection and reduces power losses while enhancing module reliability. -
Bifacial Double-Glass Construction
Allows the module to capture reflected light from the rear side, increasing overall system energy production. -
Improved Weak-Light Performance
Generates more power under low-irradiance conditions such as cloudy weather or early morning sunlight. -
Anti-PID Technology
Ensures long-term stability and reliability by minimizing potential-induced degradation. -
Designed for Harsh Environments
Resistant to salt mist, ammonia, sand, humidity, and high-temperature conditions.
Best Uses
-
Utility-Scale Solar Farms
High power output reduces balance-of-system costs and improves project economics. -
Commercial Solar Installations
Ideal for large rooftop and ground-mounted PV systems requiring high energy density. -
Bifacial Ground-Mount Systems
Rear-side power gain increases total system output when installed over reflective surfaces.
Warranty
- Product Warranty: 12 years
- Performance Warranty: 30-year linear power output guarantee
- Annual Degradation: 0.40% per year
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | ZNShine Solar |
| Model | ZXM7-UHLDD144-585 |
| Cell Technology | N-Type TOPCon Monocrystalline |
| Cell Configuration | 144 Half-Cells (6 × 24) |
| Maximum Power (Pmax) | 585 W |
| Module Efficiency | 22.65% |
| Maximum Power Voltage (Vmp) | 43.00 V |
| Maximum Power Current (Imp) | 13.61 A |
| Open Circuit Voltage (Voc) | 51.70 V |
| Short Circuit Current (Isc) | 14.41 A |
| Temperature Coefficient (Pmax) | -0.30% / °C |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C to +85°C |
| Maximum Series Fuse Rating | 30 A |
| Dimensions | 89.69 × 44.65 × 1.18 inches |
| Weight | 69.45 lb |
| Glass | 2.0 mm + 2.0 mm high-transmission tempered double glass |
| Junction Box | IP68 rated with 3 bypass diodes |
| Connector | MC4-EVO2 |
| Cable Length | 4 mm², 400 mm or customized |
| Bifaciality | 80% ±10% |
| Front Load Capacity | Up to 5400 Pa |
| Rear Load Capacity | Up to 2400 Pa |
| Packaging | 36 modules per pallet / 720 modules per 40' HQ container |
About ZNShine Solar:
ZNShine Solar is a global photovoltaic manufacturer known for advanced module technologies and high-quality production standards. With automated manufacturing and global distribution across more than 60 countries, the company is recognized as a Tier 1 solar module supplier delivering reliable and high-performance PV solutions for residential, commercial, and utility-scale solar projects.
High-Power Bifacial Module for Large Solar Projects
The ZNShine ZXM7-UHLDD144-585 combines advanced N-type TOPCon technology, bifacial energy production, and durable double-glass construction to deliver exceptional performance and long-term reliability for modern photovoltaic systems.
