ZNShine 570W 144 Series N-Type TOPCon Bifacial Solar Panel ZXM7-UHLDD144

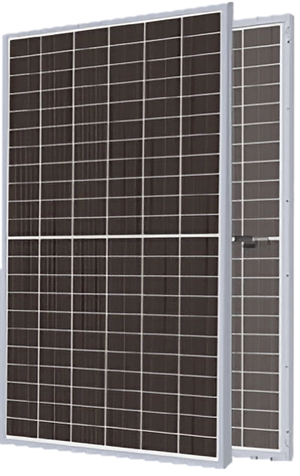

The ZNShine ZXM7-UHLDD144-570 is a high-performance N-type TOPCon bifacial double-glass solar module from the ZXM7-UHLDD144 series. Engineered for commercial and utility-scale solar installations, this module delivers 570W of output power with high efficiency, strong durability, and excellent long-term energy yield.
Built with advanced 16BB half-cell technology, the module improves current collection while reducing resistive losses. The bifacial design allows additional energy production from the rear side of the panel, increasing overall system performance depending on installation conditions.
Key Technology
-
N-Type TOPCon Cell Technology
Improves efficiency and reduces long-term degradation compared with conventional P-type modules. -
16BB Half-Cell Architecture
Optimized busbar structure improves electrical performance and reliability. -
Bifacial Double-Glass Construction
Captures reflected light from the rear side of the module to increase energy production. -
Excellent Weak-Light Performance
Generates higher power output during cloudy weather, haze, and early morning conditions. -
Anti-PID Protection
Advanced cell manufacturing process ensures resistance to potential-induced degradation. -
Harsh Environment Durability
Designed to withstand salt mist, ammonia, sand, high humidity, and high-temperature conditions.
Best Uses
-
Utility-Scale Solar Farms
High module power helps reduce BOS costs and increase overall system efficiency. -
Commercial Solar Installations
Ideal for large rooftop or ground-mounted PV systems. -
Bifacial Ground-Mount Systems
Rear-side energy gain increases system output when installed over reflective surfaces. -
Harsh Outdoor Environments
Durable construction supports installations in demanding climates.
Warranty
- Product Warranty: 12 Years
- Performance Warranty: 30-Year Linear Power Output Warranty
- Annual Degradation: 0.40% per year
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | ZNShine Solar |
| Model | ZXM7-UHLDD144-570 |
| Cell Technology | N-Type Monocrystalline TOPCon |
| Cell Configuration | 144 Half Cells (6 × 24) |
| Maximum Power (Pmax) | 570 W |
| Module Efficiency | 22.06% |
| Maximum Power Voltage (Vmp) | 42.40 V |
| Maximum Power Current (Imp) | 13.45 A |
| Open Circuit Voltage (Voc) | 51.00 V |
| Short Circuit Current (Isc) | 14.18 A |
| Temperature Coefficient (Pmax) | -0.30% / °C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 25 A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature | 44 ± 2°C |
| Dimensions | 89.72 × 44.65 × 1.18 inches |
| Weight | 31.5 kg |
| Glass | 2.0 mm + 2.0 mm high-transmission AR-coated tempered glass |
| Junction Box | IP68 rated with 3 bypass diodes |
| Connector | MC4 compatible |
| Cable | 4 mm², 350 mm with connectors |
| Front Load Capacity | Up to 5400 Pa |
| Rear Load Capacity | Up to 2400 Pa |
| Packaging | 36 modules per pallet / 720 modules per 40' HQ container |
About ZNShine Solar:
ZNShine Solar is a global Tier 1 photovoltaic manufacturer with more than three decades of experience in solar technology development. The company produces high-efficiency solar modules used in residential, commercial, and utility-scale solar projects across more than 60 countries worldwide.
High-Power Bifacial Module for Large Solar Projects
The ZNShine ZXM7-UHLDD144-570 combines advanced N-type TOPCon technology, high-power output, and durable double-glass construction to deliver reliable long-term performance for modern photovoltaic systems.
