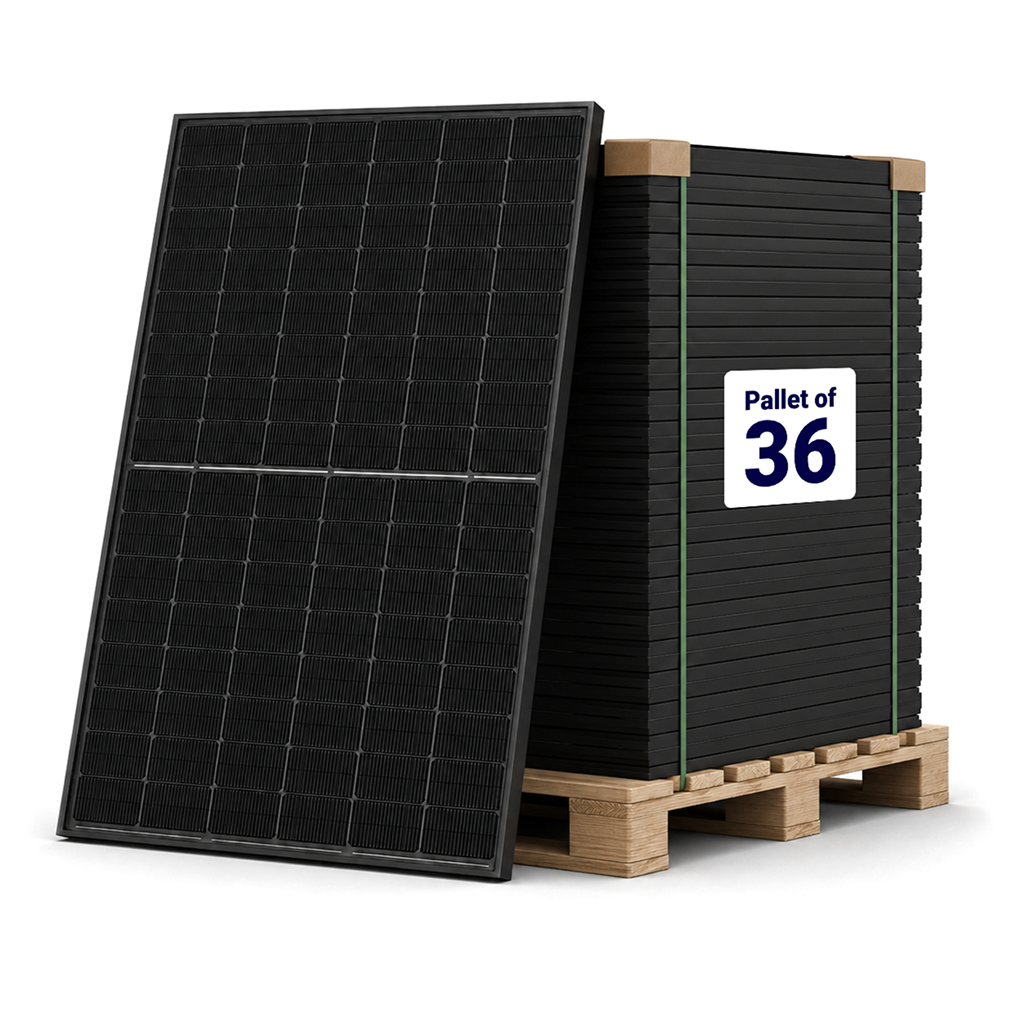

Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass ZXMR-UHLDD96-450N
MPN No: ZXMR-UHLDD96-450N
Expected ship date Mar 11 - 18
In Stock
$5,163.75
Pallet
Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass ZXMR-UHLDD96-450N
Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass ZXMR-UHLDD96-450N
Regular price
$5,163.75
$0.31/watt
Sale price
$143.43/per panel
New
52 IN STOCK
Pallet
Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass ZXMR-UHLDD96-450N
Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass ZXMR-UHLDD96-450N
Available
MPN No: ZXMR-UHLDD96-450N
Regular price
$5,163.75
$0.31/watt
Sale price
$143.43/per panel
Expected ship date Mar 11 - 18
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$5,163.75
Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass ZXMR-UHLDD96-450N
MPN No:
ZXMR-UHLDD96-450N
Expected ship date Mar 11 - 18
≥ 21

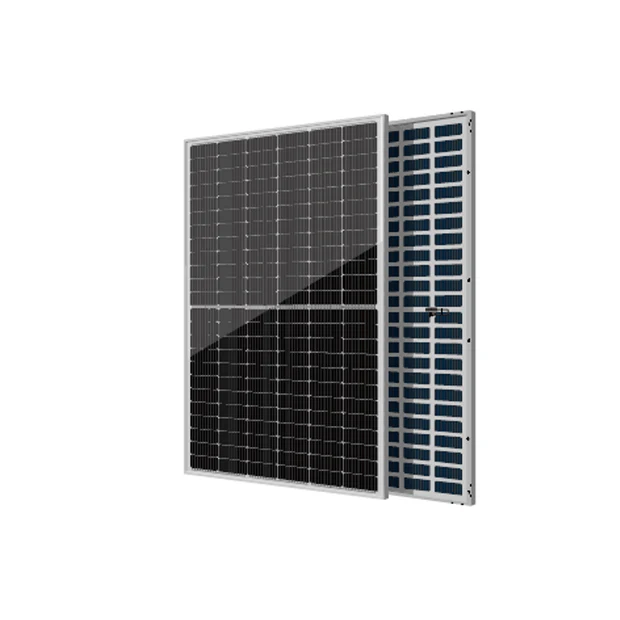

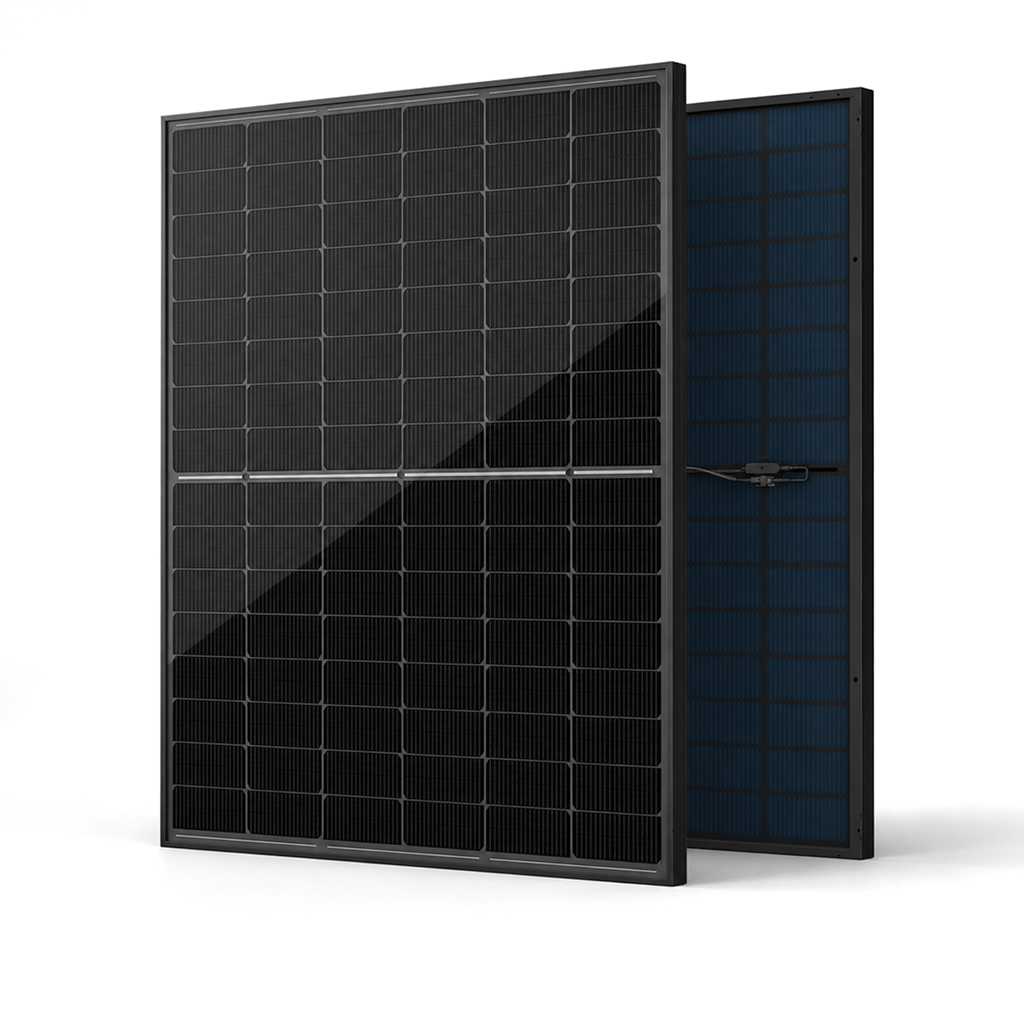

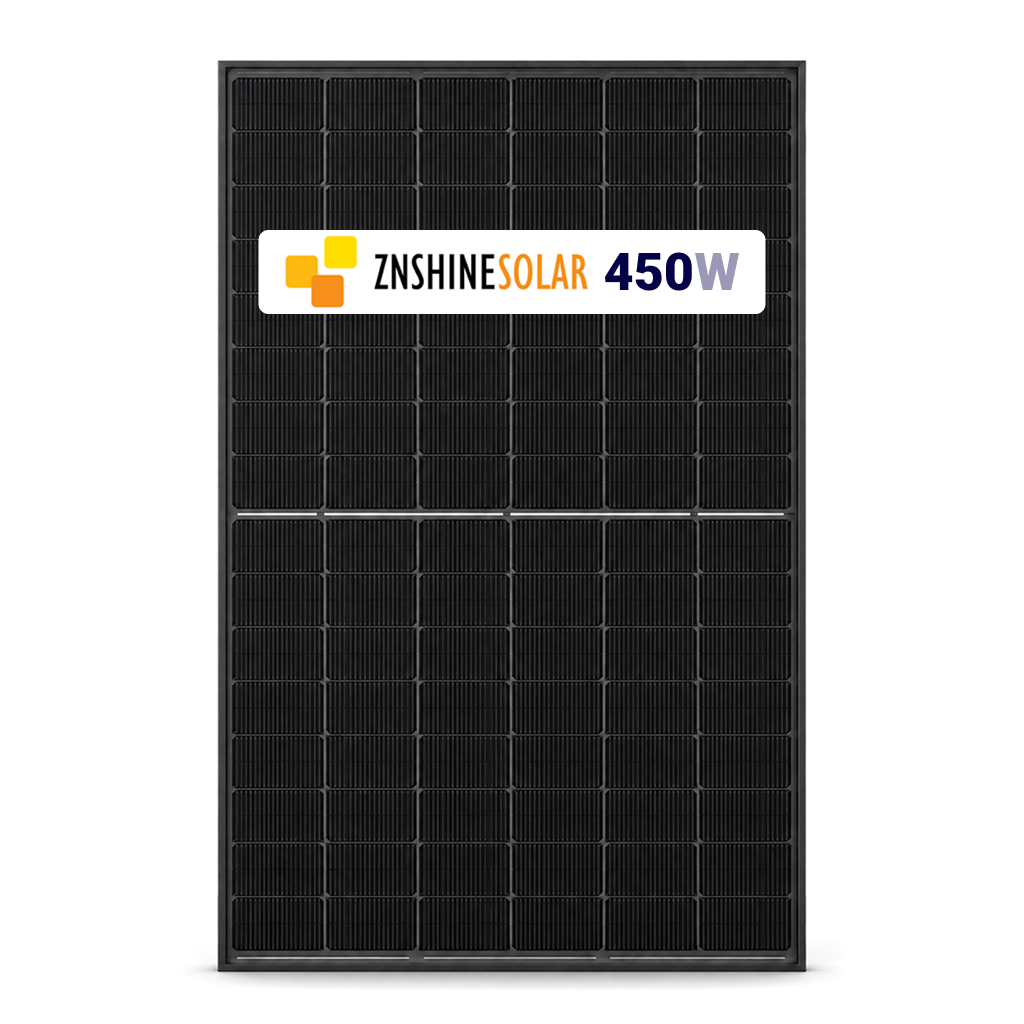

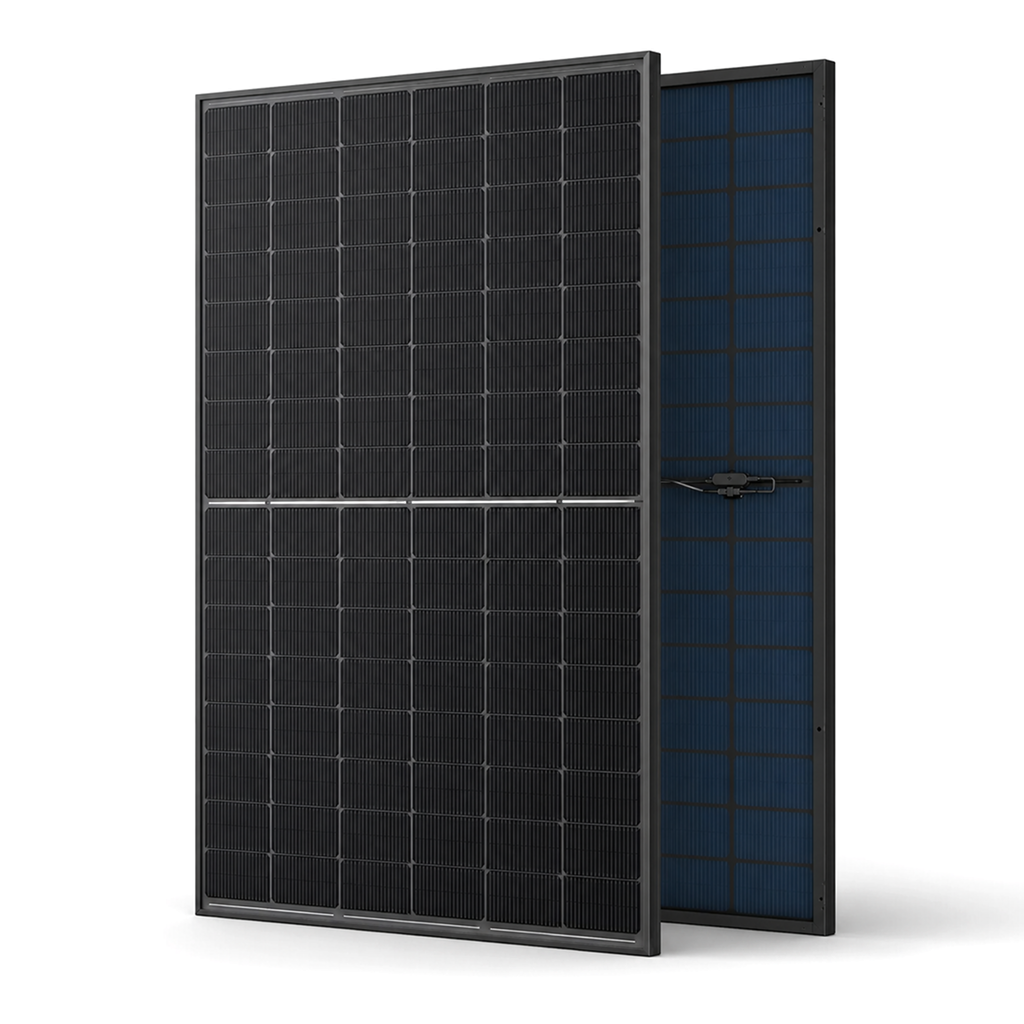

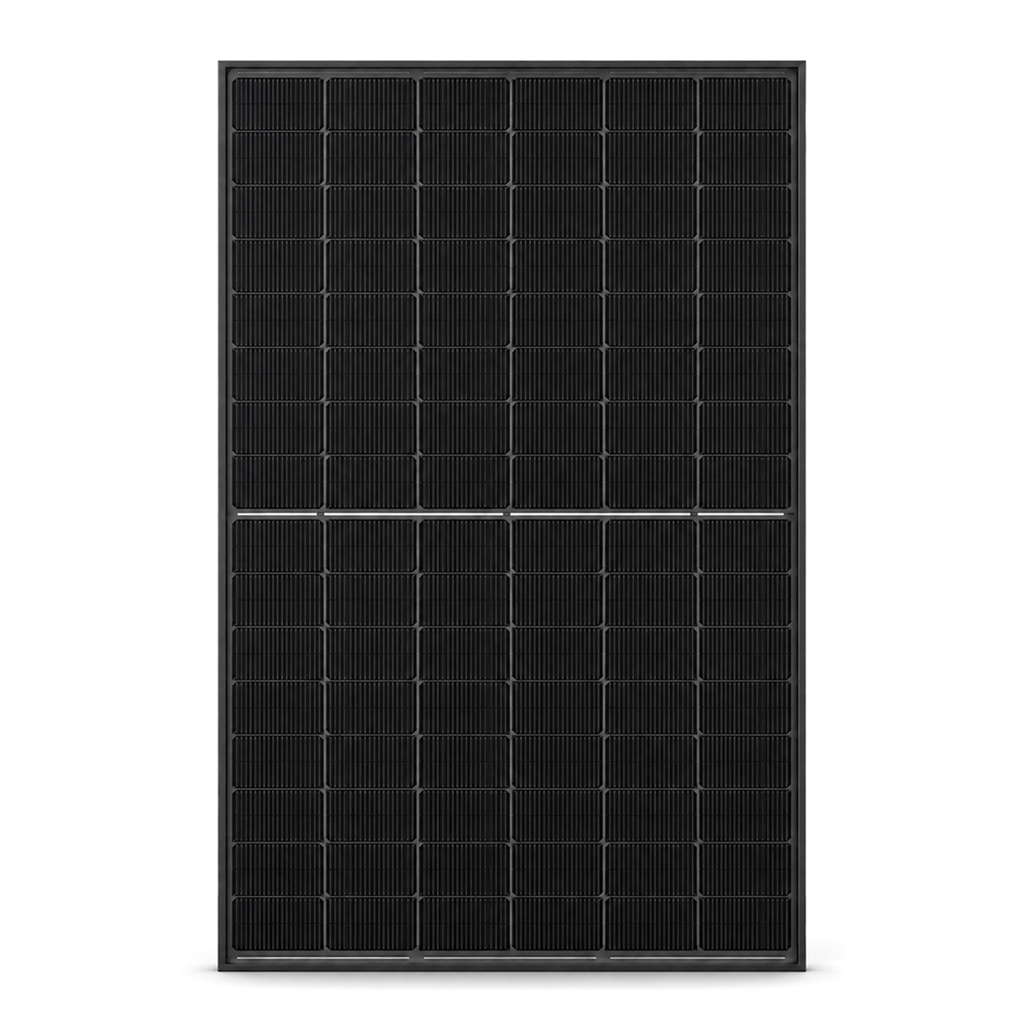

Znshine 450W (Pallet of 36) N-Type Bifacial Double Glass Mono ZXMR-UHLDD96-450N
The ZXMR-UHLDD96-450N from ZNShine Solar’s UHLDD96 Series is a high-efficiency SMBB half-cell N-type bifacial double-glass module delivering 450W of front-side power with up to 22.52% module efficiency.
Key Technology
-
N-Type SMBB Half-Cell Technology
Improves light trapping and current collection, reducing resistive losses and increasing power output. -

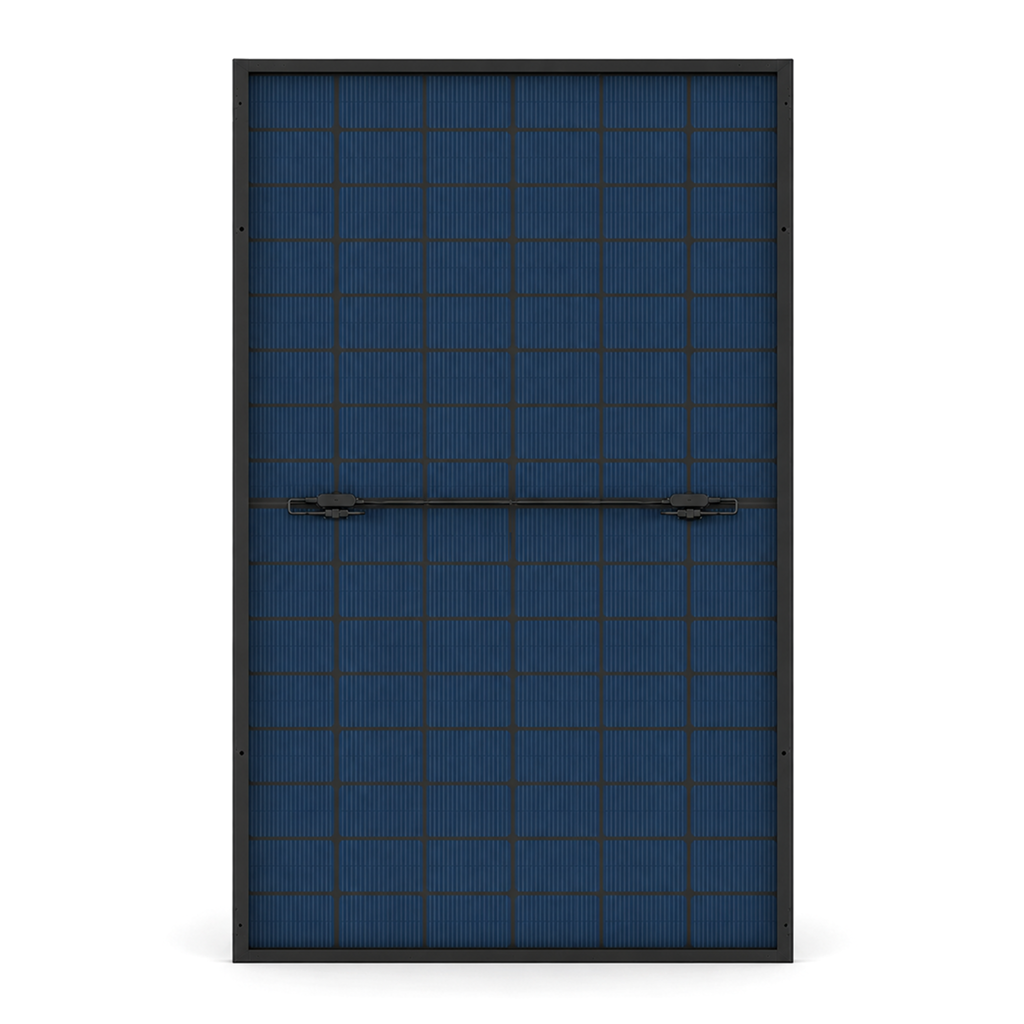

Bifacial Double Glass Construction
Up to 25% additional rear-side gain depending on albedo and mounting design. -
Anti-PID Protection
Enhanced resistance to potential induced degradation through strict material and production controls. -
Excellent Weak-Light Performance
Delivers higher energy yield under cloudy, hazy, and early-morning conditions. -
Harsh Environment Resistance
Resistant to salt mist, ammonia, sand, high humidity, and extreme temperatures.
Best Uses
-
Residential Rooftop Systems
High 22.52% efficiency maximizes energy density in limited roof space. -
Commercial & Industrial Installations
Optimized for distributed generation and high-yield rooftop arrays. -
Bifacial Installations
Enhanced performance over reflective surfaces such as white roofs or light-colored ground.
Warranty
- Product Warranty: 12 Years
- Performance Warranty: 30-Year Linear Output Guarantee
- Annual Degradation: 0.40%
- Guaranteed Output at Year 30: 87.4%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | ZNShine Solar |
| Model | ZXMR-UHLDD96-450N |
| Cell Type | N-type Monocrystalline, Rectangular Cells |
| Cell Configuration | 96 (6 × 16) |
| Maximum Power (Pmax) | 450 W |
| Module Efficiency (STC) | 22.52% |
| Maximum Power Voltage (Vmp) | 29.80 V |
| Maximum Power Current (Imp) | 15.11 A |
| Open Circuit Voltage (Voc) | 35.50 V |
| Short Circuit Current (Isc) | 16.03 A |
| Power Tolerance | ±3% |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C ~ +85°C |
| Maximum Series Fuse Rating | 30 A |
| NMOT | 44°C ±2°C |
| Temperature Coefficient (Pmax) | -0.28% / °C |
| Temperature Coefficient (Voc) | -0.23% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Bifacial Factor | 80% ±10% |
| Dimensions | 69.37 × 44.65 × 1.18 in |
| Weight | 57.3 lb |
| Glass | 2.0 mm + 2.0 mm High Transmission AR-Coated Heat Strengthened Glass |
| Junction Box | IP68, 3 diodes |
| Cables | 4 mm², 350 mm (with connectors) |
| Connector | MC4-EVO2 Compatible |
| Front Side Static Load | Up to 5400 Pa |
| Rear Side Static Load | Up to 2400 Pa |
| Packaging | 36 pcs/box; 936 pcs/40’HQ |
About ZNShine Solar:
Founded in 2006, ZNShine Solar is a Bloomberg Tier 1 global PV manufacturer with over 10GW production capacity. With ISO 9001, ISO 14001, and ISO 45001 certified manufacturing systems, ZNShine delivers reliable, high-efficiency modules for residential, commercial, and utility-scale markets worldwide.
High-Efficiency 450W N-Type Bifacial Module for Rooftop & C&I Solar
The ZXMR-UHLDD96-450N combines strong 22.52% efficiency, bifacial energy gain potential, and durable dual-glass construction in a compact 96-cell format. Ideal for high-performance residential and commercial solar installations seeking long-term energy production and reliability.
