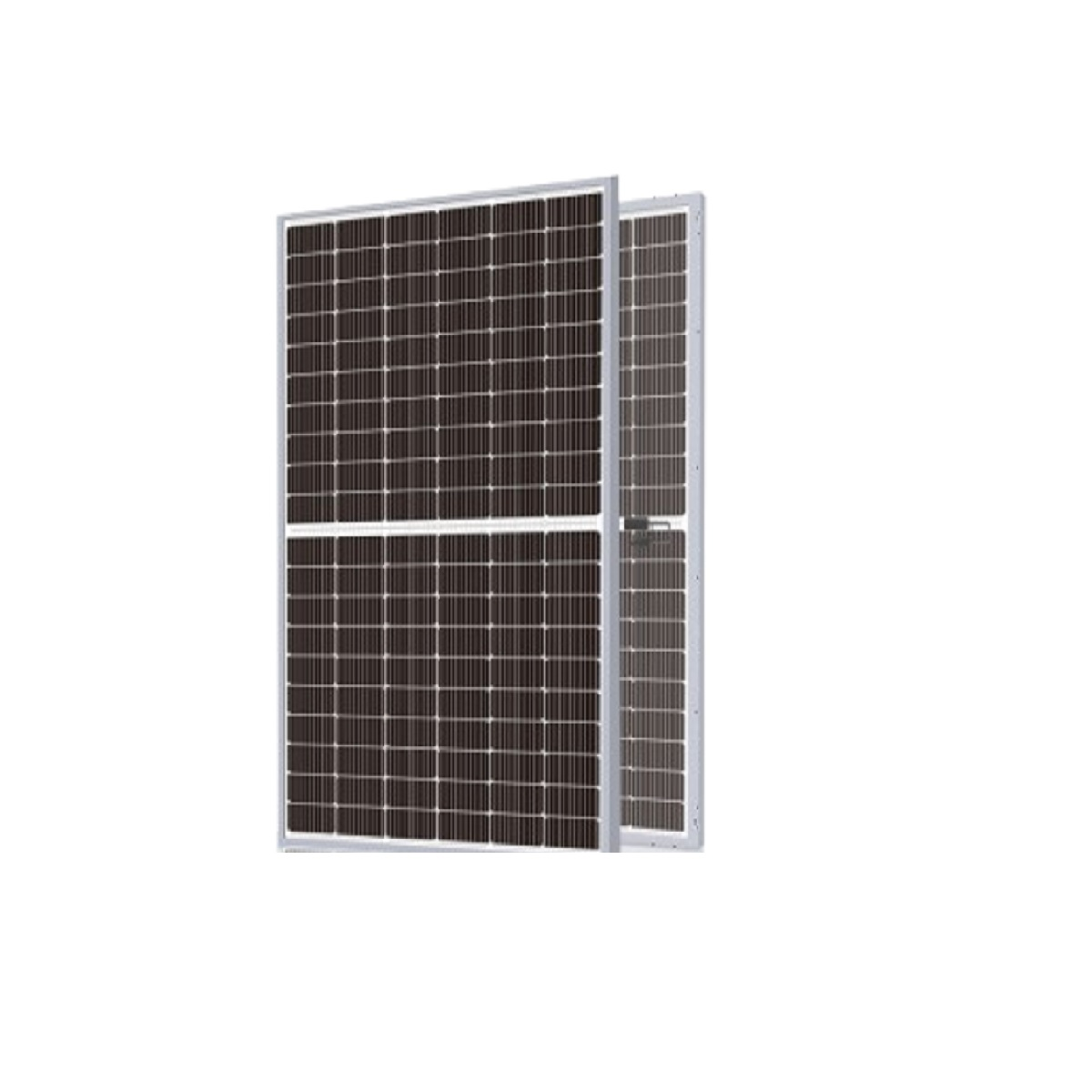

Znshine 450W P Type Double Glass Bifacial Mono PERC Solar Panel ZXM7-SHLDD120

Znshine 450W P Type Double Glass Bifacial Mono PERC Solar Panel ZXM7-SHLDD120

Regular price $152.99
Sale price
$0.33/watt
250 IN STOCK
Leave a Review

Znshine 450W P Type Double Glass Bifacial Mono PERC Solar Panel ZXM7-SHLDD120

Znshine 450W P Type Double Glass Bifacial Mono PERC Solar Panel ZXM7-SHLDD120

ZNShine
MPN No: ZXM7-SHLDD120 450
In Stock
Regular price $152.99
Sale price
$0.33/watt

1
2
3
4
5
6

The minimum order quantity is 6 units. Orders less than 6 units will be canceled and not fulfilled.

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Expected ship date Sep 09 - 16 About shipping

Payment

We offer multiple secure payment options for your convenience

View full details
Regular price $152.99
Sale price
$0.33/watt

Specifications

.PDF
Documents
.PDF
Documents
Data Sheet

Znshine 450W P Type Double Glass Bifacial Mono PERC Solar Panel ZXM7-SHLDD120

Tier 1 Solar Panel

    • Exceptional Bifacial Power Generation: Harness up to 25% additional power gain from the backside of the panel by utilizing reflected light (albedo), significantly boosting your overall energy yield and project economics. This makes it perfect for installations over reflective surfaces like white roofs, sand, or snow.
    • High 450W Output: Achieve impressive energy production with a substantial 450W nominal power output, leading to fewer panels needed for your desired system size and reduced installation costs.
    • Double Glass Durability: The innovative double-glass design provides enhanced mechanical strength, superior fire resistance, and improved protection against micro-cracks and PID (Potential Induced Degradation), ensuring a longer lifespan and consistent performance.
    • Advanced Mono PERC Technology: Benefit from industry-leading PERC (Passivated Emitter Rear Cell) technology, which optimizes light capture and conversion efficiency, especially in low-light conditions.
    • Half-Cell Design (10BB): The 10BB Half-Cell configuration minimizes resistive losses, reduces hot spot risk, and improves shade tolerance, contributing to higher overall energy yield.
    • Tier 1 Bankability: Invest with confidence in a Bloomberg Tier 1 listed manufacturer, signifying strong financial health, advanced automated manufacturing, and proven track record of reliable product quality.
    • Excellent Low-Light Performance: Designed to perform efficiently even in challenging conditions like haze, cloudy skies, and early mornings, ensuring consistent power generation throughout the day.
    • Robust Weather Resistance: Built to withstand harsh environments, including high temperatures, humidity, salt mist, and ammonia, with high wind and snow load resistance (up to 5400 Pa snow load).

    Warranty:

    • 12-Year Product Warranty: Guarantees against manufacturing defects.
    • 30-Year Linear Power Output Warranty: Ensures that your panel will retain at least 84.95% of its initial power output after 30 years, with a low annual degradation rate of 0.45%.

    Best Uses:

    • Residential Rooftop Installations: Maximize energy production on your home, especially with reflective roofing materials or lighter-colored surfaces.
    • Commercial Buildings: Ideal for businesses looking to significantly reduce energy costs and achieve sustainability goals on large rooftops.
    • Utility Projects: Its high power output and bifacial gains make it an excellent choice for optimizing energy yield in utility-scale ground-mounted installations.
    • Carports & Awnings: Leverage the bifacial capability to generate power from both sides, increasing the system's overall efficiency.
    • Areas with Snow or Light-Colored Ground: Benefits greatly from the high albedo (reflectivity) of snow or light surfaces, adding considerable extra power.

    Special Technology:

    • Bifacial Technology: Unlike traditional solar panels that only capture sunlight from the front, bifacial modules absorb light from both the front and rear sides. This is achieved through a transparent backside material (double glass) that allows reflected and diffused light to be converted into electricity, leading to higher energy yields per square foot.
    • PERC (Passivated Emitter Rear Cell) Technology: An enhancement to standard monocrystalline cells, PERC technology adds a dielectric passivation layer on the backside of the cell. This layer reduces electron recombination and reflects unabsorbed light back into the cell, increasing efficiency, particularly in low-light conditions.
    • 10BB Half-Cell Design: This module features 10 Busbars (10BB) within each half-cut cell. By cutting the cells in half, the current flowing through each busbar is reduced, minimizing resistive power losses. This design also improves performance under shaded conditions and reduces the risk of hot spots.
    • Double Glass Structure: Replacing the traditional backsheet with another sheet of tempered glass provides superior protection against environmental degradation, mechanical stress, and potential-induced degradation (PID). This results in a more robust and longer-lasting module.


    Technical Specifications:

    Feature Specification
    Model ZXM7-SHLDD120
    Rated Power Output (Pmax) 450Wp
    Cell Type Monocrystalline PERC, Bifacial
    Cell Orientation 10BB, Half-Cell (120 cells)
    Module Efficiency Up to 20.85% (at STC)
    Bifaciality Up to 25% additional power gain from backside (depending on albedo)
    Dimensions (L x W x D) 1903 x 1134 x 30 mm (74.92 x 44.65 x 1.18 inches) (With Frame)
    Weight 26.5 kg ( 58.42 lbs)
    Glass Double Glass, Anti-reflection Coating (2mm thickness each)
    Junction Box IP68 Rated, 3 Diodes
    Cables 4 mm² cable, 350 mm length
    Connector Type MC4 compatible
    Maximum System Voltage 1500 V DC
    Operating Temperature -40°C to +85°C (-40°F to +185°F)
    Maximum Series Fuse Rating 30 A
    Front Side Max. Static Loading 5400 Pa
    Rear Side Max. Static Loading 2400 Pa
    Pmax Temperature Coefficient -0.35 %/°C
    Voc Temperature Coefficient -0.29 %/°C
    Isc Temperature Coefficient 0.05 %/°C
    PID Resistance Yes
    Certifications IEC 61215/IEC 61730/IEC 61701/IEC 62716, ISO 9001, ISO45001, ISO 14001



    What Does Tier 1 Mean?

    A Tier 1 solar panel refers to panels produced by manufacturers that are ranked as Tier 1 by independent industry analysts. These manufacturers meet strict criteria, including:

    • Proven Track Record: Companies must demonstrate consistent product quality and financial stability over several years.
    • Vertical Integration: Tier 1 manufacturers control the production process from raw materials to finished panels, ensuring higher quality standards.
    • Investment in Research and Development: They invest heavily in R&D to continually improve panel efficiency and durability.
    • Bankability: Panels from Tier 1 manufacturers are highly trusted by financial institutions, making them a preferred choice for large-scale commercial and utility projects.

    Choosing a Tier 1 panel like ZNShine ensures you’re getting a reliable, high-quality product backed by a reputable company with a proven history.





    ZNShine Solar is a global leader in the solar industry, known for producing high-efficiency solar panels that cater to both DIY homeowners and large-scale commercial installations. With over 30 years of experience, ZNShine provides top-quality solar products that are easy to install, reliable, and built to last.

    Our advanced solar panels utilize cutting-edge technologies like bifacial modules and monocrystalline PERC cells to ensure maximum energy efficiency. Whether you're looking to power your home with a DIY setup or aiming to install large-scale solar projects for businesses, ZNShine offers the perfect solution.

    As a Tier 1 solar manufacturer, ZNShine panels are designed to deliver superior performance, withstand harsh weather conditions, and reduce energy costs. We are committed to helping customers transition to clean, renewable energy with products that are environmentally friendly and cost-effective.

    Why Choose ZNShine Solar?

    • High-Efficiency Panels: Designed to maximize energy production, ideal for rooftops and larger installations.
    • DIY Friendly: Easy-to-install solar panels for homeowners looking to take control of their energy needs.
    • Commercial-Grade Durability: Robust panels engineered to perform in a variety of environmental conditions.
    • Sustainable and Reliable: ZNShine panels help reduce carbon footprints while providing long-term energy savings.

    Trust ZNShine Solar for your DIY solar projects or commercial energy solutions—backed by years of innovation and a commitment to sustainability.
