Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440
MPN No: ZXM7-UHLDD108-440
Expected ship date Nov 28 - Dec 05
In Stock
$182.99
Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440
Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440
Regular price
$182.99
Sale price
$0.41
/watt
New
1090 IN STOCK
Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440
Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440
In Stock
MPN No: ZXM7-UHLDD108-440
Regular price
$182.99
Sale price
$0.41
/watt
Expected ship date Nov 28 - Dec 05
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$182.99
Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440
MPN No:
ZXM7-UHLDD108-440
Expected ship date Nov 28 - Dec 05
In Stock
Znshine 440W All N Type Bifacial Double Glass Black Solar Panel ZXM7-UHLDD108-440

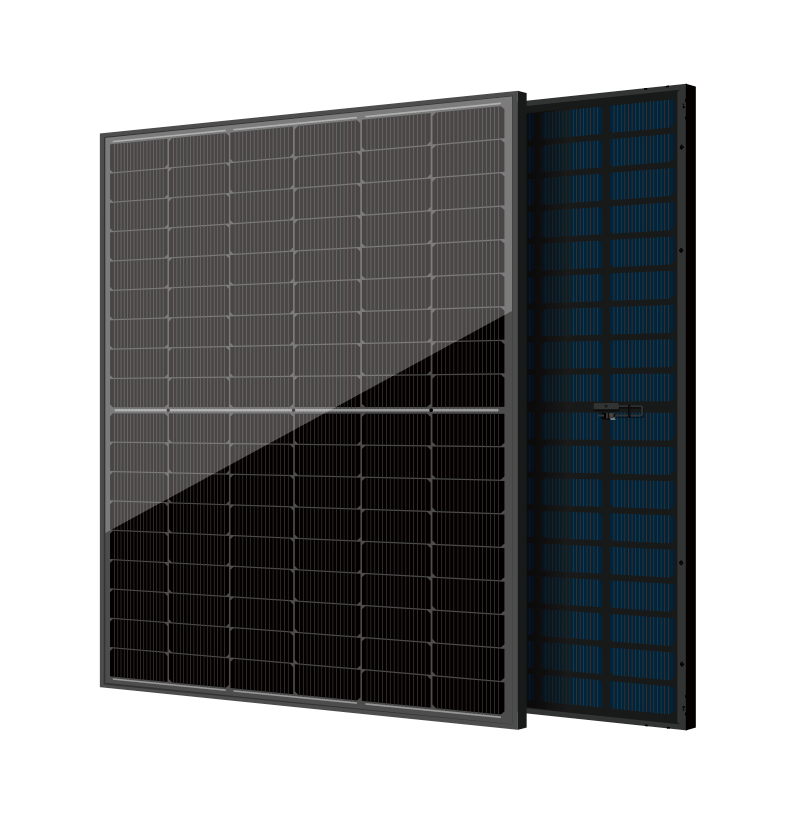

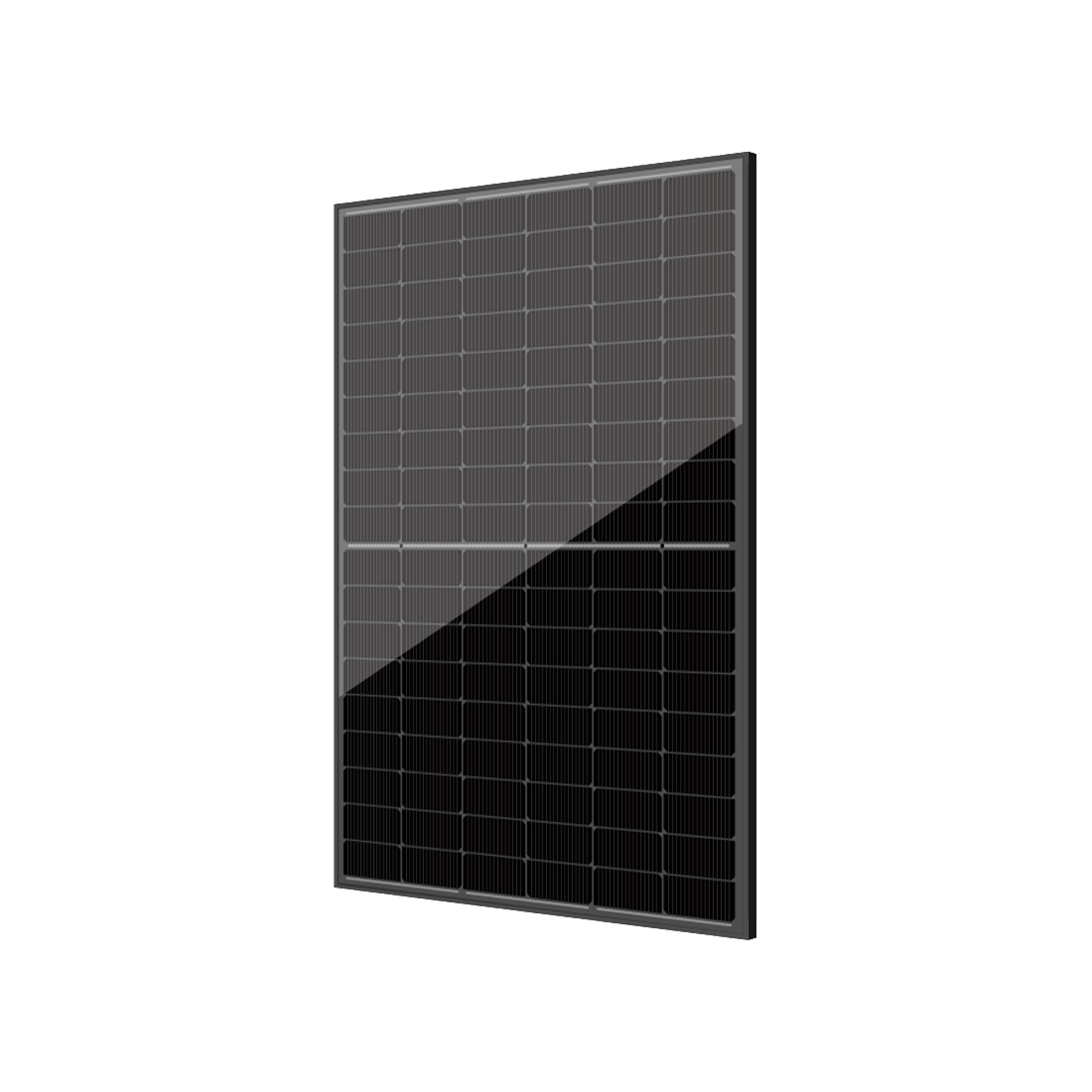

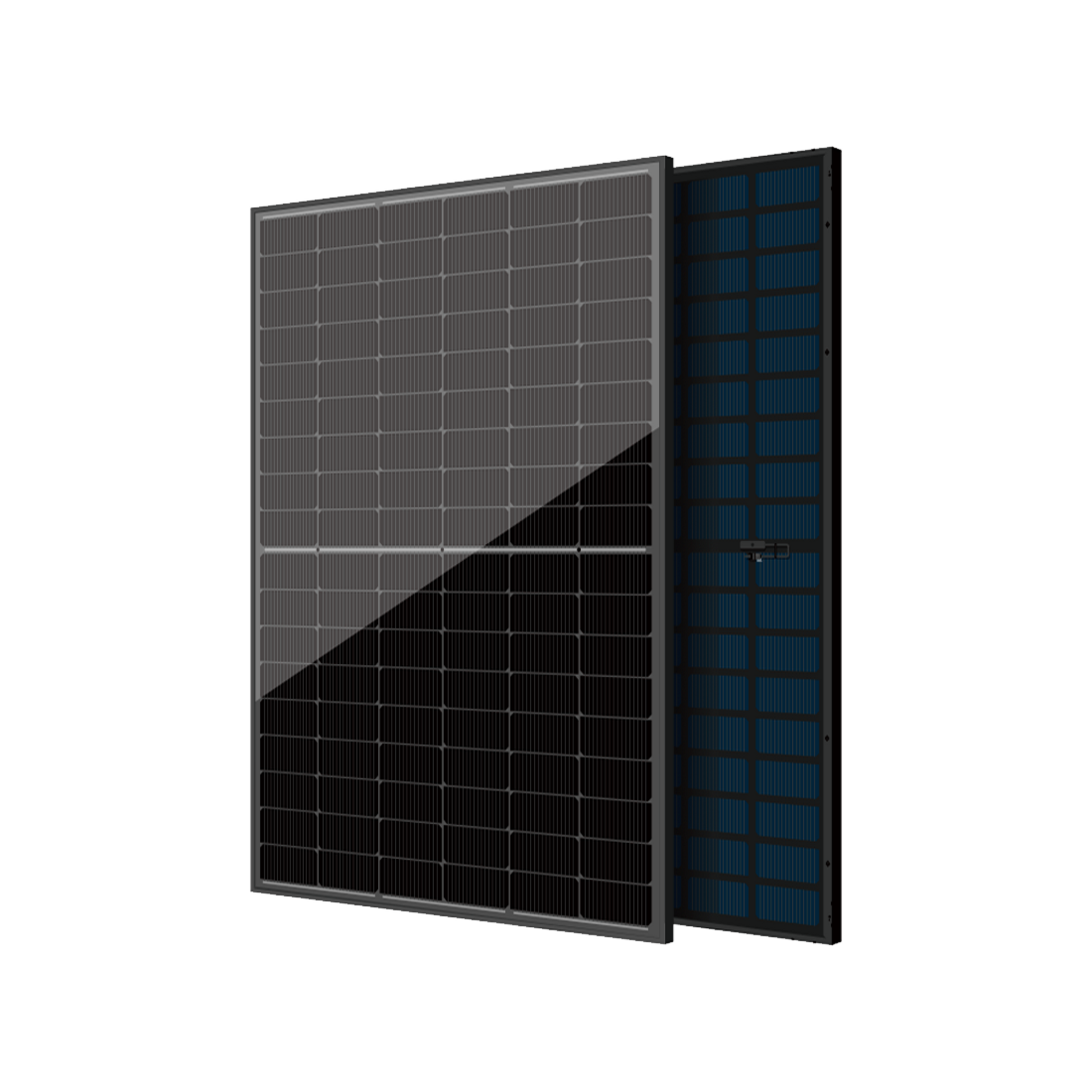

The Znshine 440W all-black N-Type bifacial double-glass solar panel delivers high efficiency, long-term durability, and powerful bifacial energy gains—making it an excellent choice for residential, commercial, and ground-mount solar installations. Built with N-Type monocrystalline half-cell technology and SMBB busbar architecture, this module provides superior performance, reduced degradation, and exceptional aesthetics for clean, modern system designs.
Key Technical Features
• N-Type monocrystalline technology for higher efficiency and lower degradation over time
• Bifacial double-glass module with up to 25% backside power gain depending on albedo
• SMBB (16 busbar) half-cell layout increases light capture and reduces electrical resistance
• Excellent low-light performance in haze, clouds, and early/late sun conditions
• High durability with resistance to PID, salt mist, ammonia, sand, humidity, and heat
• All-black finish for premium residential curb appeal
• Tier 1 global manufacturer with advanced automated production lines
• 1500V DC system voltage rating for large-scale system compatibility
• Robust static load performance—ideal for harsh climates and high-wind regions
Warranty
• 12-year product workmanship warranty
• 30-year linear power output guarantee
• Low annual degradation rate of 0.40% per year
Product Specification Table
Electrical Characteristics (STC)
| Specification | Value |
|---|---|
| Rated Power (Pmax) | 440W |
| Module Efficiency | 22.53% |
| Voltage at Pmax (Vmp) | 32.30V |
| Current at Pmax (Imp) | 13.63A |
| Open-Circuit Voltage (Voc) | 38.80V |
| Short-Circuit Current (Isc) | 14.39A |
Electrical Characteristics (NMOT)
| Specification | Value |
|---|---|
| Pmax (NMOT) | 333.50W |
| Vmp (NMOT) | 30.20V |
| Imp (NMOT) | 11.03A |
| Voc (NMOT) | 36.60V |
| Isc (NMOT) | 11.61A |
Bifacial Gain (Up to 25% Rear-Side Power)
| Rear-Side Gain | Total Power | Vmp | Imp | Voc | Isc |
|---|---|---|---|---|---|
| 25% | 550W | 32.40V | 16.98A | 38.90V | 17.92A |
Mechanical Specifications
| Specification | Value |
|---|---|
| Dimensions | 67.80 in × 44.65 in × 1.18 in |
| Weight | 54 lbs |
| Cell Type | N-Type Mono, 108 cells (6×18) |
| Glass | 2.0mm + 2.0mm AR-coated, heat-strengthened |
| Junction Box | IP68, 3 diodes |
| Cables | 4 mm², 350 mm |
| Connectors | MC4-compatible |
| Frame | Black |
| Front Load Rating | Up to 5400 Pa |
| Rear Load Rating | Up to 2400 Pa |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
Packaging
| Packaging | Value |
|---|---|
| Panels per Pallet | 36 |
| Container (40HQ) | 936 pcs |
