Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
MPN No: FUSEBYPASS-PVI-36-60TL
Expected ship date Nov 26 - Dec 03
In Stock
$97.50
Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
Regular price
$97.50
LESS THAN 50
Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
In Stock
MPN No: FUSEBYPASS-PVI-36-60TL
Regular price
$97.50
Expected ship date Nov 26 - Dec 03
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$97.50
Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
MPN No:
FUSEBYPASS-PVI-36-60TL
Expected ship date Nov 26 - Dec 03
In Stock
Yaskawa Solectria Fuse Bypass Kit FUSEBYPASS-PVI-36-60TL
Key Features
- DC Fuse Bypass: Allows combining DC inputs externally, enabling connection with one or two combined inputs.
- Enhanced Flexibility: Supports various PV system configurations by accommodating external DC input combinations.
- Simplified Installation: Reduces internal wiring complexity within the inverter, streamlining setup and maintenance.
Best Applications
- Commercial and Utility-Scale PV Systems: Ideal for large-scale installations requiring customized DC input configurations.
- Ground-Mount and Rooftop Arrays: Suitable for systems where external DC input combining is preferred.
Installation & Compatibility
- Compatible Inverters: Designed specifically for Yaskawa Solectria Solar's PVI 50TL and PVI 60TL three-phase transformerless inverters.
-

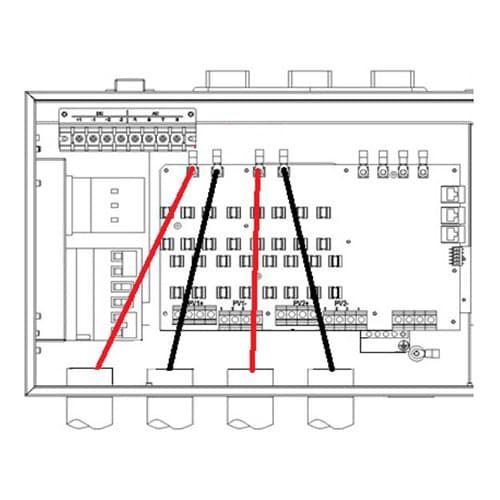

Installation Process:
- Remove the protection cover.
- Use a No. 2 Phillips head screwdriver to install the bypass input terminals (3 sets), with a torque value of 14 in-lbs (1.6 N·m).
- Use a No. 10 wrench to secure DC input cables to the bypass input terminals, with a torque value of 50 in-lbs (6.0 N·m).
- Reinstall the protection cover.
About Yaskawa Solectria Solar
Yaskawa Solectria Solar is a leading provider of grid-tied photovoltaic inverters for residential, commercial, and utility-scale solar systems. Known for their reliability and efficiency, their products are designed to meet the evolving needs of the solar industry.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | DC Fuse Bypass Option |
| Model Number | FUSEBYPASS-PVI-36-60TL |
| Compatible Inverters | PVI 50TL & PVI 60TL |
| Installation Torque (Bypass Terminals) | 14 in-lbs (1.6 N·m) |
| Installation Torque (DC Input Cables) | 50 in-lbs (6.0 N·m) |
| Installation Tools Required | No. 2 Phillips head screwdriver, No. 10 wrench |
| Manufacturer | Yaskawa Solectria Solar |
