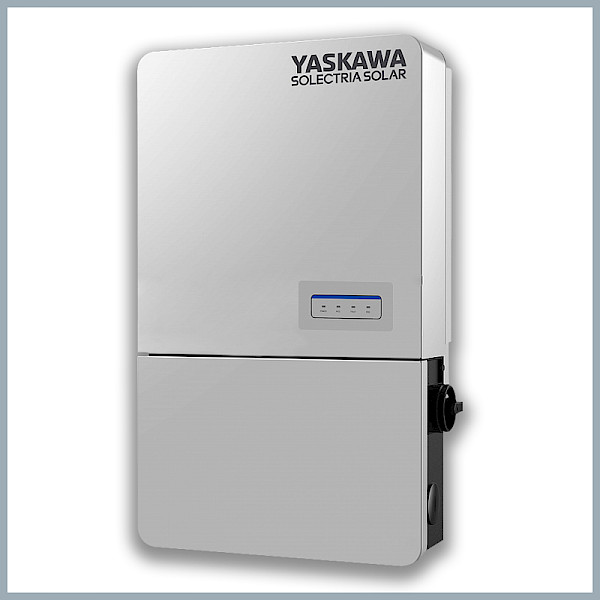

Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
MPN No: PVI-25TL-480-APS25
Expected ship date Mar 01 - 08
In Stock
4,865.49
-9%
$4,390.24
Sale
Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
Regular price
$4,865.49
-9%
$4,390.24
10% OFF
LESS THAN 50
Sale
Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
Available
MPN No: PVI-25TL-480-APS25
Regular price
$4,865.49
-9%
$4,390.24
Expected ship date Mar 01 - 08
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$4,865.49
-9%
$4,390.24
Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
MPN No:
PVI-25TL-480-APS25
Expected ship date Mar 01 - 08
Sale
Yaskawa Solectria 25kW Three-Phase String Inverter (480V) PVI-25TL-480-APS25
Enclosure
Rating: NEMA 4X
Material: Polyester powder-coated aluminum
Dimensions (H x W x D):
Power Head: 15.95 in. x 15.75 in. x 7.875 in
Wirebox: 10.24 in. x 15.75 in. x 7.875 in
Weight:
Power Head: 48.5 lbs
Wirebox: 13.2 lbs
The PVI-25TL-480-APS25 is a compact, transformerless 25kW three-phase string inverter engineered for commercial rooftop, carport, and ground-mount PV systems. , This APS25 model includes a built-in APsmart SunSpec-compliant transmitter, delivering turnkey NEC-compliant module-level rapid shutdown without external hardware.
Designed for modern commercial code requirements, this inverter integrates AC and DC disconnects, dual MPPTs, arc-fault protection, and advanced grid-support functions—making it a dependable choice for installers, EPCs, and facility owners.
Key Benefits
-
25kW Commercial Output (480V, 3-Phase)
Optimized for mid-scale commercial PV systems. -
APS25 Rapid Shutdown Ready
Built-in APsmart SunSpec PLC transmitter—no external transmitter required. -
Dual MPPT Design
Two MPPTs with three fused inputs each support complex array layouts. -
High DC/AC Ratio (1.5)
Enables array oversizing up to 37.5 kW DC. -
Integrated Safety
UL-listed arc-fault protection, AC & DC disconnects included. -
Outdoor-Rated Enclosure
NEMA 4X aluminum housing for long-term outdoor installations. -
Advanced Grid Support
Fully compliant with modern interconnection standards.
Best Use Applications
-
Commercial rooftops
-
Solar carports
-
Small ground-mount PV systems
-
Warehouses, schools, retail centers, municipal buildings
-
480V three-phase utility-interactive installations
Rapid Shutdown & NEC Compliance (APS25)
The APS25 wirebox version includes a factory-integrated APsmart SunSpec-compliant powerline communication transmitter, allowing direct compatibility with APsmart RSD-S and RSD-D devices. This configuration is UL listed as a PV Rapid Shutdown System, simplifying compliance with 2017 & 2020 NEC rooftop rapid shutdown requirements.
Warranty
Standard Limited Warranty: 10 years
Why Choose the PVI-25TL-480-APS25?
This inverter is purpose-built for commercial professionals who need code-ready rapid shutdown, high DC oversizing, and bankable grid compliance in a compact footprint. The APS25 configuration eliminates extra shutdown hardware, reducing labor, material cost, and inspection risk—while delivering the reliability Yaskawa Solectria is known for.
Electrical Specifications
DC Input
| Specification | Value |
|---|---|
| Max PV Power | 37.5 kW (22 kW per MPPT) |
| Max DC Voltage | 1000 VDC |
| MPPT Voltage Range | 560 – 850 VDC |
| Operating DC Voltage Range | 200 – 950 VDC |
| Startup Voltage / Power | 330 V / 80 W |
| MPPTs / Inputs | 2 MPPTs / 3 fused inputs per MPPT |
| Max Available PV Current | 90 A total (45 A per MPPT) |
| DC Surge Protection | Type II MOV, 15 kA (8/20 µs) |
AC Output
| Specification | Value |
|---|---|
| Rated AC Power | 25 kW / 25 kVA |
| Rated Output Current | 30.5 A |
| Nominal Voltage | 480 VAC (-12% to +10%) |
| Grid Frequency | 60 Hz (57–63 Hz) |
| Power Factor | >0.99 (adjustable 0.8 lead to 0.8 lag) |
| THD @ Rated Load | < 3% |
| Grid Connection | 3-Phase / PE / N (neutral optional) |
| Max OCPD | 50 A |
| Fault Current Contribution | 31 A (1-cycle RMS) |
Efficiency
| Metric | Value |
|---|---|
| Peak Efficiency | 98.5% |
| CEC Efficiency | 98.0% |
| Night Tare Loss | < 1 W |
Communications & Monitoring
-
Modbus (Proprietary / SunSpec)
-
Bluetooth® via Yaskawa Connect Pro App
-
LED display
-
Optional SolrenView web-based monitoring
-
Ethernet card required for:
-
Remote firmware upgrades
-
Remote diagnostics
-
-
Optional external revenue-grade metering
