Waaree Elite R 625W N-Type Bifacial Solar Panels – Pallet of 36

22.5kW Solar Panel Pallet with Dual-Glass Construction and 23.14% Efficiency

Shipping Notice for 600W+ Solar Panels

All solar panels rated 600W and above exceed liftgate size restrictions and cannot be unloaded via liftgate. Residential deliveries require the customer to provide appropriate unloading equipment (forklift, skid steer, or equivalent) at the delivery location. Failure to provide equipment may result in unloading by hand or re-delivery fees assessed by the carrier.

625W Per Panel | 36 Panels Per Pallet | 22.5kW Total | 23.14% Efficiency

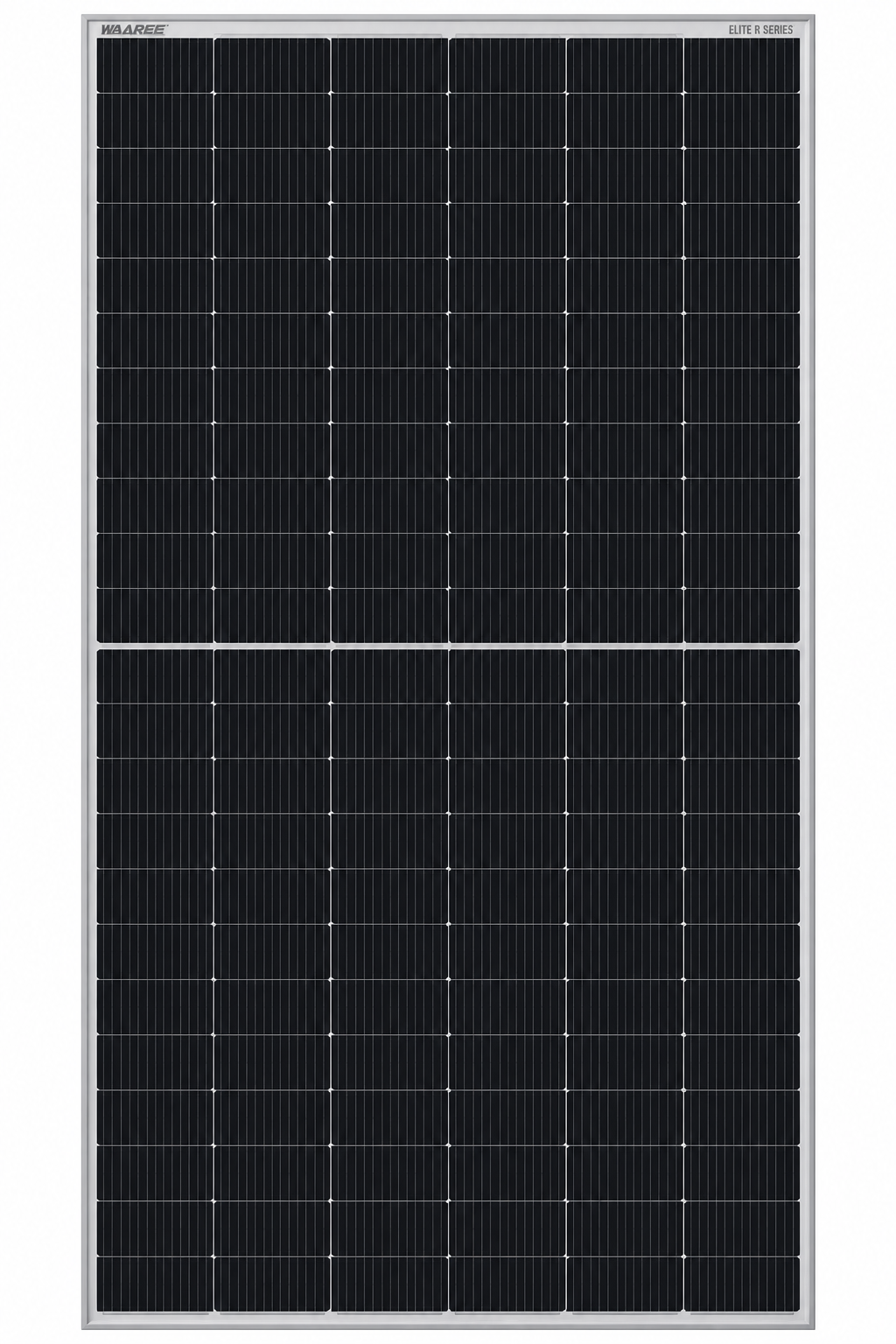

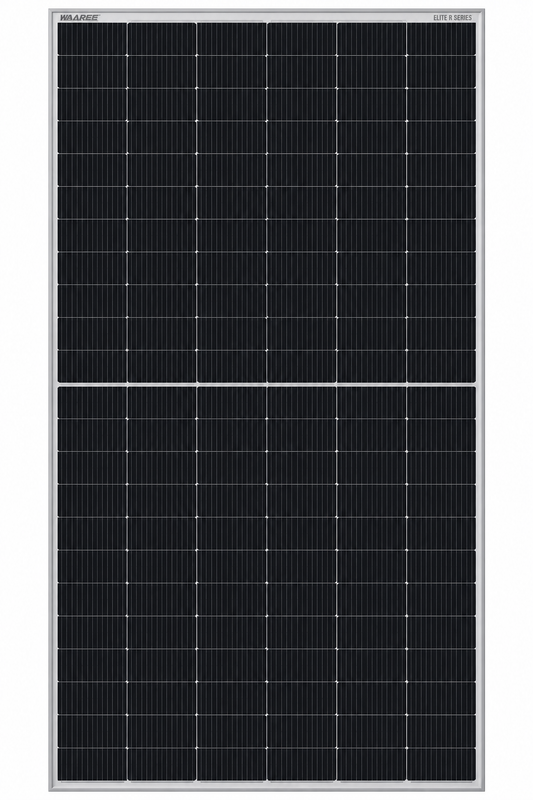

The Waaree Elite R BiN-21-625 is a high-efficiency N-type bifacial solar panel designed for commercial, industrial, agricultural, and large residential solar installations. Featuring 132 G12R N-type solar cells, dual-glass construction, and a slim 30mm aluminum frame, these modules deliver high power density, dependable performance, and additional energy generation potential from reflected sunlight.

Sold as a complete pallet of 36 solar panels, this package provides 22,500W (22.5kW DC) of total front-side rated solar capacity. 30mm frame.

Product Highlights

• 625W rated output: High-wattage solar generation from each module.
• 36 panels per pallet: 22.5kW total DC nameplate capacity.
• 23.14% module efficiency: High power output per square foot.
• N-type solar cells: Advanced cell technology designed for strong long-term performance.
• Bifacial power generation: Captures sunlight from the front and reflected light from the rear.
• Dual-glass construction: 2mm front and 2mm rear glass.
• 132-cell configuration: G12R N-type bifacial solar cells.
• 30mm frame: Slim anodized aluminum construction.
• Excellent thermal performance: -0.30%/°C power temperature coefficient.
• High mechanical strength: 5400Pa front and 2400Pa rear load ratings.
• 1500V maximum system voltage: Supports compatible high-voltage solar arrays.
• IP68 junction box: Weatherproof electrical protection with three bypass diodes.
• 12-year product warranty: Manufacturer-published coverage.
• 30-year power warranty: Long-term manufacturer performance coverage.

Manufacturer: Waaree Solar Americas

Series: Elite R

Model: BiN-21-625

SKU / MPN: WSAHU30625W

Frame Thickness: 30mm

Quantity: 36 Solar Panels Per Pallet

High-Output 625W Solar Panels for Large Solar Projects

The Waaree Elite R 625W solar panel combines advanced N-type cell technology with a large-format bifacial module design to deliver substantial solar power output.

Each panel generates 625W under standard test conditions, allowing installers to build high-capacity solar arrays with fewer modules compared with lower-wattage alternatives.

A full pallet contains 36 panels with a combined nameplate capacity of 22.5kW DC, making it suitable for commercial rooftops, ground-mounted solar installations, agricultural properties, and large residential systems.

With 23.14% module efficiency, the Elite R 625W provides high power density for projects where energy production and efficient use of installation space are priorities.

Advanced N-Type Bifacial Solar Technology

The Waaree Elite R BiN-21-625 features 132 G12R N-type bifacial solar cells designed for high-efficiency power generation.

The N-type cell architecture supports strong low-light performance, excellent resistance to potential-induced degradation, and reduced long-term power losses.

N-Type Technology Benefits

• 23.14% module efficiency: Efficient conversion of sunlight into electricity.
• High power density: 625W rated output per module.
• Improved weak-light performance: Supports energy production during reduced irradiance.
• PID resistance: Designed to resist potential-induced degradation.
• Multi-busbar construction: Supports reliable current collection and enhanced crack tolerance.
• Long-term performance: Backed by a 30-year manufacturer power output warranty.

Bifacial Solar Technology for Additional Energy Production

Unlike conventional monofacial solar panels, the Waaree Elite R 625W module generates electricity from both its front and rear surfaces.

The front side captures direct sunlight, while the rear side can convert reflected sunlight from the ground, roofing surfaces, or surrounding materials into additional electricity.

This technology is particularly beneficial for elevated ground-mounted installations, solar carports, and other applications where reflected light can reach the rear of the module.

Manufacturer-Published Bifacial Power Scenarios

Actual rear-side energy production depends on installation height, ground reflectivity, row spacing, and site conditions.

Durable Dual-Glass Construction

The Elite R BiN-21-625 features framed dual-glass construction designed for long-term outdoor performance.

Both the front and rear glass layers are 2mm thick, providing protection for the solar cells while allowing bifacial energy generation.

Construction Features

• 2mm front glass: Low-iron, high-transmittance, anti-reflective semi-tempered glass.
• 2mm rear glass: Low-iron printed semi-tempered glass.
• 30mm aluminum frame: Anodized aluminum alloy construction.
• IP68 junction box: Weatherproof protection with three bypass diodes.
• MC4-compatible connectors: Standard PV electrical connections.
• 4mm² output cables: Factory-installed solar wiring.
• 500mm cable length: Manufacturer-specified module leads.
• PID-free, UV-resistant encapsulation: Designed for long-term module reliability.

Excellent Temperature Performance

The Waaree Elite R 625W module is engineered to maintain strong solar energy production across a wide range of operating temperatures.

Its maximum power temperature coefficient of -0.30%/°C helps reduce the impact of elevated solar cell temperatures on energy production.

Temperature Specifications

• Operating temperature: -40°C to +85°C.
• Power temperature coefficient: -0.30%/°C.
• Voltage temperature coefficient: -0.26%/°C.
• Current temperature coefficient: +0.046%/°C.
• Nominal operating cell temperature: 43°C ±2°C.

High Mechanical Strength for Demanding Installations

The Elite R series is designed to withstand demanding environmental conditions, including heavy snow and wind loads.

Mechanical Load Ratings

• Front-side load rating: 5400Pa.
• Rear-side load rating: 2400Pa.
• Frame: 30mm anodized aluminum alloy.
• Construction: Framed dual-glass bifacial module.

These ratings support use in appropriately engineered commercial rooftops, ground-mounted systems, and other large solar installations.

12-Year Product Warranty and 30-Year Power Warranty

Waaree publishes a 12-year product warranty and a 30-year power output warranty for the Elite R bifacial module series.

The manufacturer's linear performance warranty chart indicates:

• End of Year 1: 99% rated power.
• End of Year 12: Approximately 94.6% rated power.
• End of Year 30: 87.4% rated power.

The long-term performance warranty supports the module's design for reliable solar energy production over decades of operation.

Ideal Solar Applications

• Commercial rooftop solar installations
• Industrial solar arrays
• Large residential solar projects
• Ground-mounted solar systems
• Agricultural and farm solar installations
• Solar carports and elevated structures
• Grid-tied solar installations
• Hybrid solar systems with compatible inverters
• Projects requiring high-efficiency bifacial solar panels

Product Specifications

Pallet Quantity and Shipping Information

Each pallet contains 36 Waaree Elite R 625W N-type bifacial solar panels, providing a total front-side nameplate capacity of 22.5kW DC.

Pallet Details

• Panels per pallet: 36
• Rated power per panel: 625W
• Total rated capacity: 22,500W
• Individual panel weight: Approximately 75 lbs
• Combined panel weight: Approximately 2,699 lbs, excluding pallet and packaging
• Individual panel dimensions: 93.78 × 44.65 × 1.18 inches
• Shipping method: Palletized freight
• Unloading: Forklift or appropriate unloading equipment recommended

Solar Panel and Inverter Compatibility

The Waaree Elite R 625W module can be paired with compatible grid-tied, hybrid, and off-grid solar equipment.

Its high-output design is particularly well suited for string inverter applications with appropriate voltage and current ratings.

Key Electrical Specifications

• Vmp: 40.92V
• Voc: 48.95V
• Imp: 15.28A
• Isc: 16.11A
• Maximum system voltage: 1500V DC
• Maximum series fuse: 30A
• Connector: MC4 Compatible

PV string sizing should account for the inverter's MPPT voltage range, maximum DC input voltage, input current capacity, and local temperature conditions.
