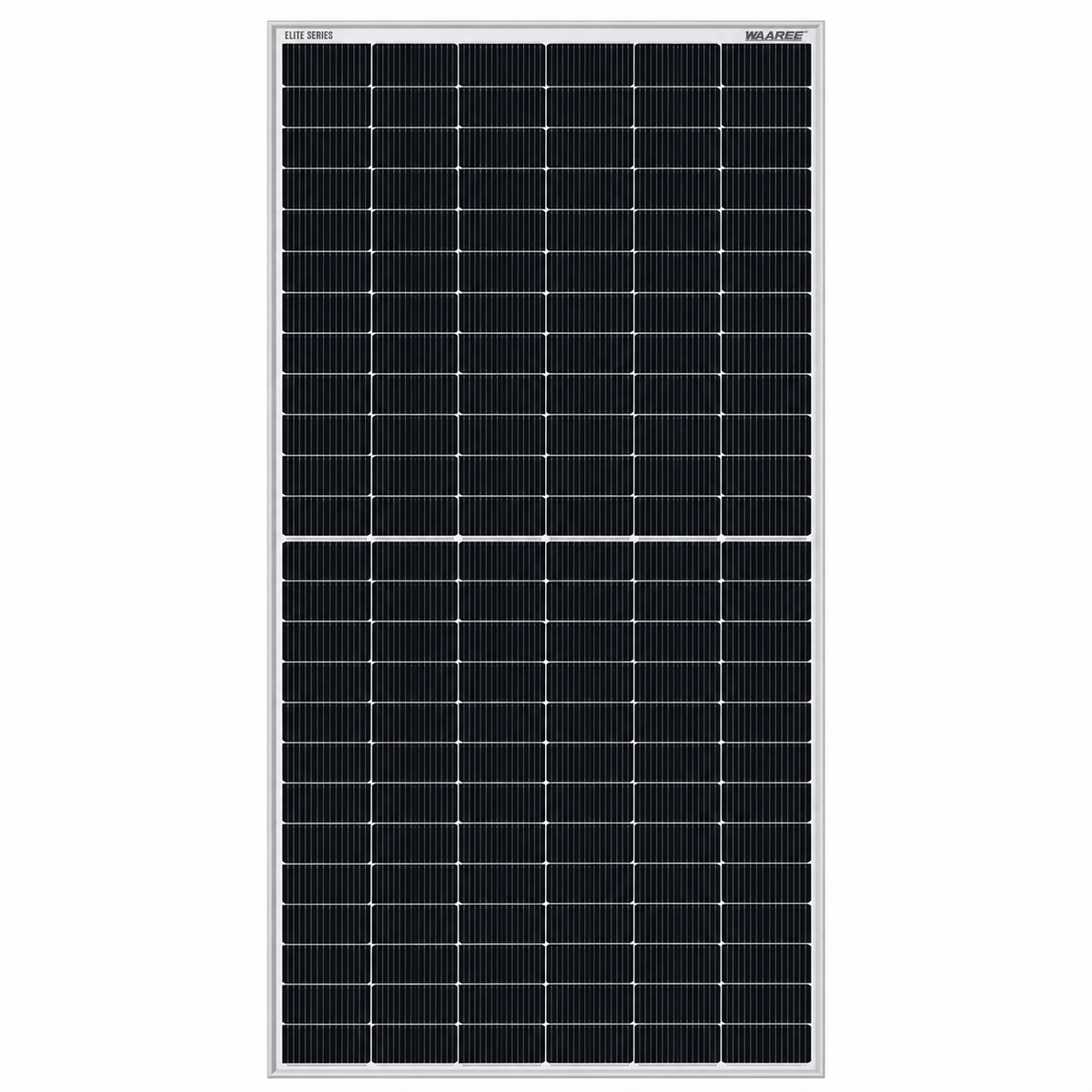

Waaree Elite 595W N-Type Bifacial Solar Panels – Pallet of 33

19.64kW Solar Panel Pallet with 23.03% Efficiency and Dual-Glass Construction

595W Per Panel | 33 Panels Per Pallet | 19.635kW Total | 23.03% Efficiency
The Waaree Elite BiN-08-595 is a high-performance N-type TOPCon bifacial solar panel engineered for commercial, industrial, agricultural, and large residential solar installations. Featuring 144 half-cut monocrystalline cells, durable dual-glass construction, and advanced bifacial technology, these modules deliver high power output with the potential for additional energy generation from reflected sunlight.

Sold as a complete pallet of 33 solar panels, this package provides 19,635W (19.635kW DC) of total rated front-side solar capacity.

Product Highlights

• 595W rated output: High-wattage solar generation from each module.
• 33 panels per pallet: 19.635kW total rated DC capacity.
• 23.03% module efficiency: High-efficiency solar energy conversion.
• N-type TOPCon technology: Advanced cell architecture designed for excellent energy production.
• 144 half-cut cells: M10/M10R N-type bifacial solar cell configuration.
• Bifacial energy generation: Captures direct sunlight and reflected light from the rear.
• Dual-glass construction: 2mm front and 2mm rear glass.
• Multi-busbar design: Enhanced current collection and crack tolerance.
• Excellent temperature performance: -0.30%/°C maximum power temperature coefficient.
• 1500V maximum system voltage: Supports compatible high-voltage solar arrays.
• IP68 junction box: Weather-resistant electrical connections.
• 12-year product warranty: Manufacturer-published coverage.
• 30-year power warranty: Long-term linear power output coverage.

Manufacturer: Waaree Solar Americas

Series: Elite BiN-08

Model: BiN-08-595

MPN: WSAHU33595W

Quantity: 33 Solar Panels Per Pallet

High-Output 595W Solar Panels for Larger Installations

The Waaree Elite 595W solar panel combines advanced N-type TOPCon technology with a high-output module design to deliver exceptional power density.

Each panel produces 595W under standard test conditions, helping installers build higher-capacity solar arrays with fewer modules than lower-wattage alternatives.

A full pallet contains 33 modules, providing 19.635kW of rated DC capacity for commercial rooftops, ground-mounted solar installations, agricultural properties, and larger residential projects.

With 23.03% module efficiency, the Elite 595W is an excellent option for projects prioritizing energy production and efficient use of mounting space.

Advanced N-Type TOPCon Solar Cell Technology

The Waaree Elite BiN-08-595 uses 144 N-type monocrystalline half-cut cells with Tunnel Oxide Passivated Contact (TOPCon) technology.

This advanced cell architecture improves electrical carrier collection and reduces internal energy losses, supporting high conversion efficiency and dependable long-term performance.

N-Type TOPCon Benefits

• High module efficiency: 23.03% rated efficiency.
• Improved low-light performance: Supports energy production under reduced irradiance.
• Excellent PID resistance: Designed to resist potential-induced degradation.
• Multi-busbar technology: Enhances electrical collection and crack tolerance.
• Strong temperature performance: Helps maintain power output in warm conditions.
• Long-term reliability: Supported by a 30-year manufacturer power warranty.

Bifacial Solar Technology for Additional Energy Production

Unlike conventional monofacial solar panels, the Waaree Elite 595W module generates electricity from both its front and rear surfaces.

The front side captures direct sunlight, while the rear side converts reflected sunlight from the ground, roofing materials, or surrounding surfaces into additional electricity.

This technology is particularly beneficial for elevated ground-mounted systems, solar carports, and installations with reflective surfaces.

Manufacturer-Published Bifacial Output Scenarios

Actual bifacial gains depend on installation height, surface reflectivity, array spacing, and site conditions.

Durable Dual-Glass Construction

The Waaree Elite BiN-08-595 features framed dual-glass construction designed for long-term outdoor performance.

The front and rear glass layers are each 2mm thick, providing protection for the solar cells while allowing additional rear-side energy generation.

Construction Features

• 2mm front glass: Low-iron, high-transmittance, anti-reflective semi-tempered glass.
• 2mm rear glass: Low-iron printed semi-tempered glass.
• Anodized aluminum frame: Durable structural support.
• IP68 junction box: Weather-resistant electrical protection.
• MC4-compatible connectors: Standard PV module electrical connections.
• 4mm² output cables: Factory-installed solar wiring.
• 500mm cable length: Manufacturer-specified module leads.
• PID-free, UV-resistant encapsulation: Supports long-term module reliability.

Excellent Performance in High Temperatures

The Elite 595W module is designed to operate across a broad temperature range while maintaining efficient solar energy production.

Its maximum power temperature coefficient of -0.30%/°C indicates a relatively modest reduction in rated output as solar cell temperatures increase above standard test conditions.

Temperature Specifications

• Operating temperature: -40°C to +85°C.
• Pmax temperature coefficient: -0.30%/°C.
• Voc temperature coefficient: -0.26%/°C.
• Isc temperature coefficient: +0.046%/°C.
• Nominal operating cell temperature: 43°C ±2°C.

Strong Mechanical Load Ratings

The Waaree Elite 595W module is engineered for demanding outdoor solar installations.

Mechanical Performance

• Front mechanical load: 5400Pa.
• Rear mechanical load: 2400Pa.
• Frame: Anodized aluminum alloy.
• Construction: Framed dual-glass bifacial module.

These ratings support appropriately engineered commercial rooftops, ground-mounted systems, and other large solar installations.

12-Year Product Warranty and 30-Year Power Warranty

Waaree Solar Americas publishes a 12-year product warranty and a 30-year linear power output warranty for the Elite BiN-08 module series.

Warranty Highlights

• Product warranty: 12 years.
• Power output warranty: 30 years.
• End of Year 1: 99% of initial rated power.
• End of Year 12: Approximately 94.6% of initial rated power.
• End of Year 30: 87.4% of initial rated power.

Ideal Solar Applications

• Commercial rooftop solar installations
• Industrial solar systems
• Large residential solar arrays
• Ground-mounted solar installations
• Agricultural and farm solar projects
• Solar carports and elevated structures
• Grid-tied solar systems
• Hybrid solar systems with compatible inverters
• Projects requiring high-efficiency bifacial modules

Product Specifications

Pallet Quantity and Shipping Information

Each pallet contains 33 Waaree Elite 595W N-type bifacial solar panels, providing 19.635kW of rated front-side DC solar capacity.

Pallet Details

• Panels per pallet: 33
• Power per panel: 595W
• Total rated capacity: 19,635W
• Individual panel weight: Approximately 71.65 lbs
• Combined panel weight: Approximately 2,365 lbs, excluding pallet and packaging
• Individual panel dimensions: 89.69 × 44.65 × 1.30 inches
• Shipping method: Palletized freight
• Unloading: Forklift or appropriate unloading equipment recommended

Solar Panel and Inverter Compatibility

The Waaree Elite BiN-08-595 can be paired with compatible grid-tied, hybrid, and off-grid solar equipment.

Its high-output design is particularly well suited for string inverter applications with appropriate voltage and current ratings.

Key Electrical Specifications

• Vmp: 44.44V
• Voc: 53.10V
• Imp: 13.39A
• Isc: 14.11A
• Maximum system voltage: 1500V DC
• Maximum series fuse: 30A
• Connector: MC4 Compatible

These specifications help installers determine PV string sizing and compatibility with inverter MPPT voltage ranges, input current limits, and maximum DC voltage.
