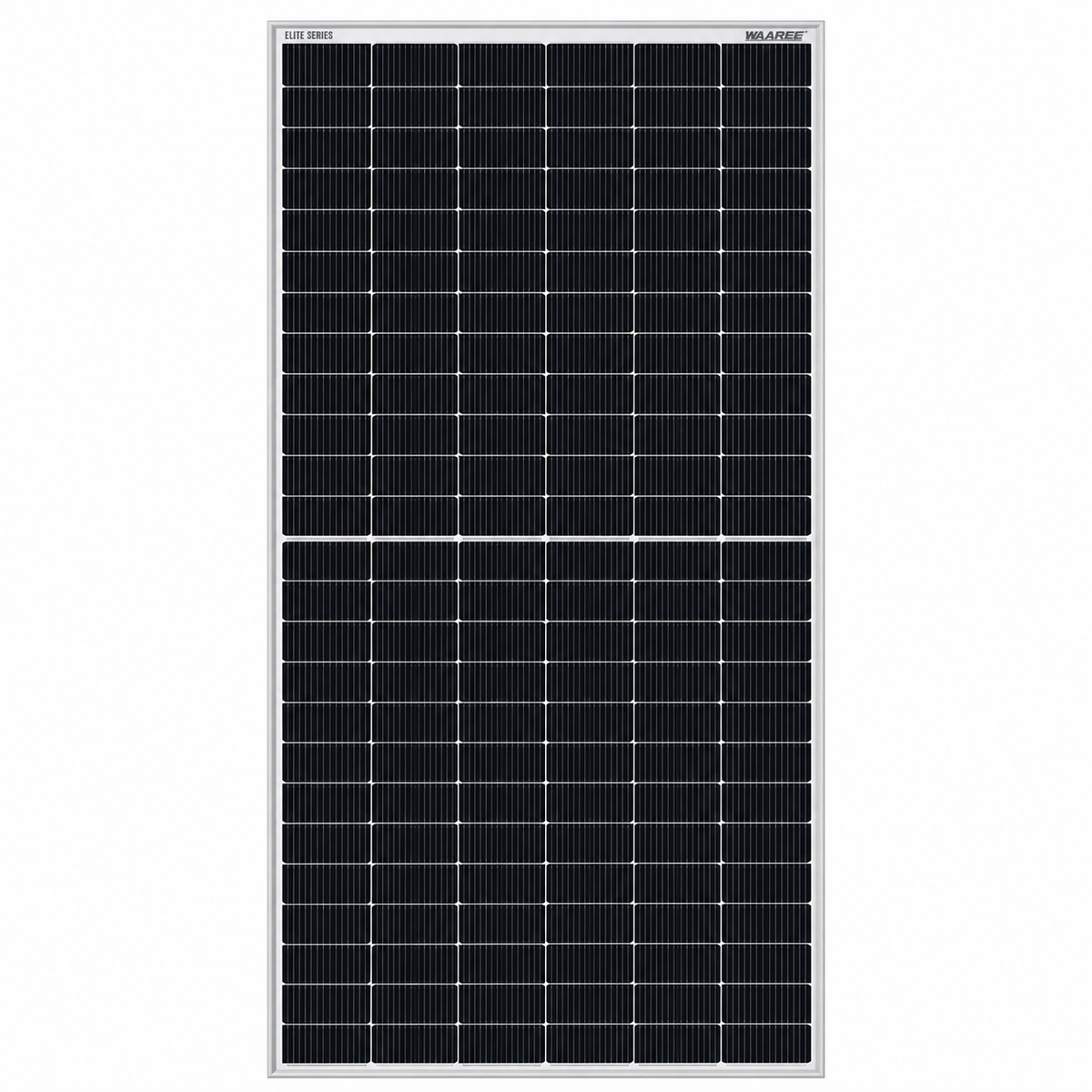

Waaree Elite 580W Solar Panels (Pallet of 33) N-type Bifacial BiN-08-580 WSAHU33580W

The Waaree BiN-08-580 33MM is a high-performance 580W N-Type bifacial solar panel from the Waaree Elite Series. Featuring 22.45% module efficiency, 144 half-cut monocrystalline solar cells, multi-busbar (MBB) technology, and framed dual-glass construction, this module is designed to deliver efficient photovoltaic electricity generation and dependable long-term performance.

Developed by Waaree Solar Americas Inc., the BiN-08-580 combines advanced N-Type bifacial technology with enhanced microcrack tolerance, PID-resistant encapsulation, favorable temperature characteristics, and improved weak-light performance. Its dual-glass construction allows sunlight to reach both sides of the photovoltaic cells, providing additional electricity-generation potential from reflected and scattered light.

Designed for residential rooftop systems, commercial solar installations, ground-mounted photovoltaic arrays, and appropriately engineered large-scale solar projects, this module supports efficient energy production and flexible system configurations.

Key Technology

• 580W High-Power Output
  Delivers 580 watts of rated front-side power under Standard Test Conditions, supporting efficient photovoltaic electricity generation.

• 22.45% Module Efficiency
  High photovoltaic conversion efficiency helps maximize electricity production from available installation space.

• Advanced N-Type Monocrystalline Technology
  Uses N-Type bifacial monocrystalline solar cells designed for efficient energy conversion and dependable photovoltaic operation.

• 144 Half-Cut Solar Cells
  Features a half-cut cell architecture designed to reduce internal electrical losses and support reliable module performance.

• Multi-Busbar (MBB) Technology
  Improves electrical current collection while enhancing resistance to cell microcracking and supporting long-term reliability.

• Bifacial Energy Generation
  Captures sunlight from both the front and rear surfaces, providing additional electricity-production potential from reflected and scattered light.

• 80% ± 10% Bifaciality Factor
  Supports rear-side photovoltaic generation when installation conditions provide sufficient reflected sunlight.

• Framed Dual-Glass Construction
  Uses protective glass on both sides of the photovoltaic module to improve environmental durability and support bifacial energy generation.

• High-Transmission Anti-Reflective Front Glass
  Features low-iron HTAR glass designed to improve sunlight transmission into the photovoltaic cells.

• PID-Free and UV-Resistant Encapsulation
  Uses protective encapsulation materials designed to resist potential-induced degradation and ultraviolet exposure.

• Enhanced Microcrack Resistance
  Multi-busbar module construction is designed to improve reliability and tolerance to localized cell microcracking.

• Improved Weak-Light Performance
  Designed to maintain useful photovoltaic electricity generation under reduced solar irradiance conditions.

• Favorable Temperature Characteristics
  Engineered to help reduce photovoltaic power losses during elevated operating temperatures.

• High Mechanical Load Resistance
  Designed to withstand substantial wind and snow loading when installed according to approved mounting requirements.

• 1500V DC System Compatibility
  Supports appropriately engineered high-voltage photovoltaic systems and flexible solar string configurations.

• IP68 Junction Box
  Features a weather-resistant junction box designed to protect electrical connections during outdoor photovoltaic operation.

• Long-Term Warranty Protection
  Supported by a 12-year product warranty and a 30-year power output warranty.

Best Uses

• Residential Rooftop Solar Systems
  Suitable for residential photovoltaic installations where the roof structure, mounting system, and electrical configuration support the module.

• Commercial Rooftop Solar Installations
  Provides efficient solar electricity generation for businesses seeking dependable renewable energy production.

• Ground-Mounted Solar Arrays
  Well suited to installations where reflected sunlight from the ground can contribute to additional rear-side energy generation.

• Bifacial Solar Installations
  Ideal for elevated mounting structures and layouts designed to allow sunlight to reach both sides of the photovoltaic module.

• Large-Scale Solar Projects
  Supports appropriately engineered photovoltaic installations requiring high-output solar modules and compatible electrical infrastructure.

• Grid-Connected Solar Energy Systems
  Designed for use with appropriately selected grid-tied inverters and compatible photovoltaic electrical equipment.

• Long-Term Solar Energy Investments
  Offers durable construction and extended manufacturer warranty coverage for projects prioritizing dependable electricity generation.

Product Specifications

580W N-Type Bifacial Solar Performance with Waaree Elite Series Technology

The Waaree BiN-08-580 33MM combines 580W rated power output, 22.45% module efficiency, N-Type bifacial monocrystalline cells, multi-busbar technology, and durable dual-glass construction. With enhanced crack tolerance, PID-resistant encapsulation, favorable temperature characteristics, and extended manufacturer warranty coverage, it provides an efficient photovoltaic solution for residential, commercial, and ground-mounted solar energy installations.
