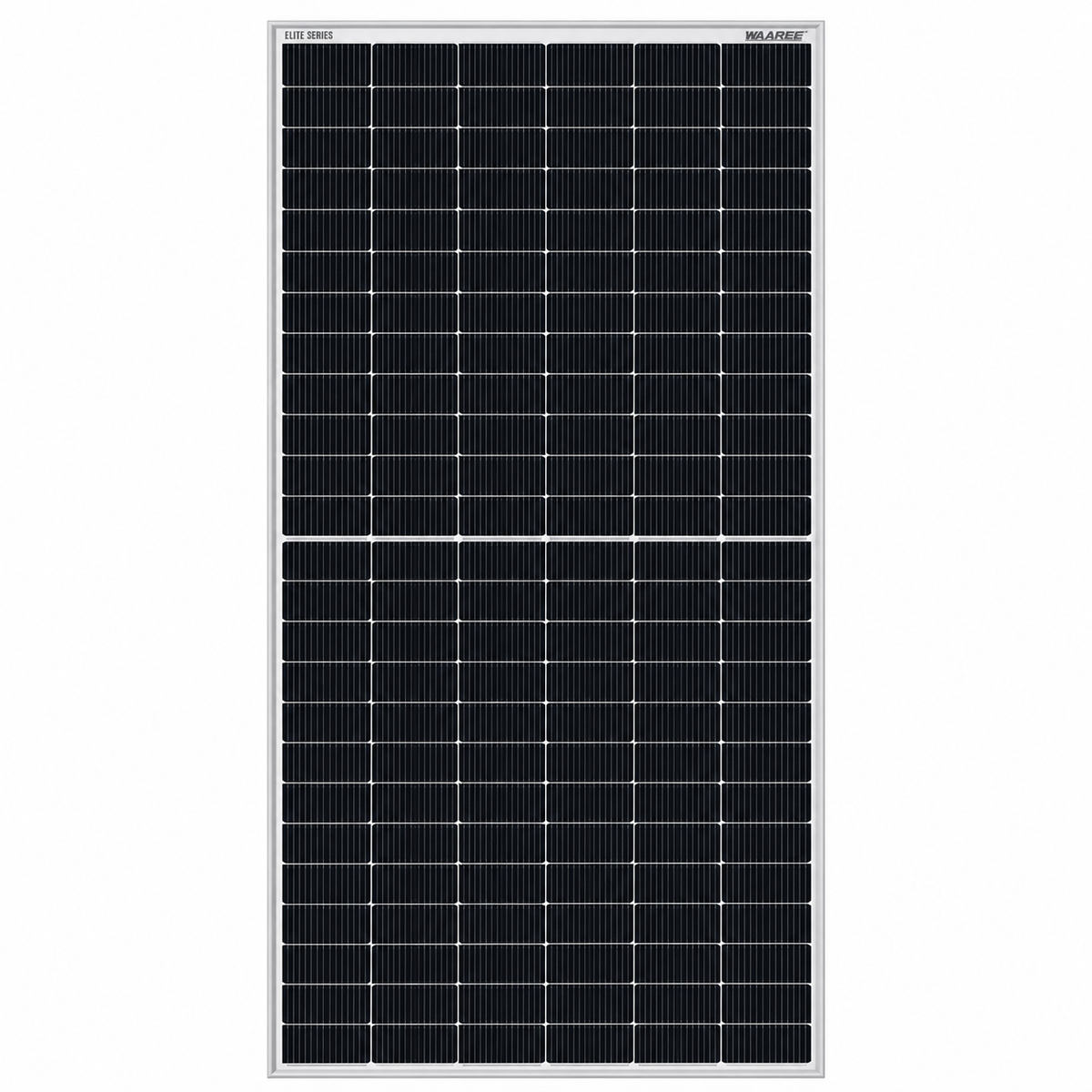

The Waaree BiN-08-570 33MM is a high-performance 570W N-Type bifacial solar panel from the Waaree Elite Series. Featuring 22.07% module efficiency, 144 monocrystalline half-cut solar cells, advanced multi-busbar (MBB) technology, and framed dual-glass construction, this module is designed to deliver efficient electricity generation and dependable long-term photovoltaic performance.
Developed by Waaree Solar Americas Inc., the BiN-08-570 incorporates advanced N-Type bifacial cell technology, PID-resistant encapsulation, improved temperature performance, and enhanced resistance to cell microcracking. Its dual-glass design enables electricity generation from both sides of the module, providing additional energy-production potential when reflected sunlight reaches the rear surface.
The module is designed for compatible residential rooftop systems, commercial photovoltaic installations, and ground-mounted solar arrays. It supports high-voltage solar system configurations and features robust mechanical construction for demanding outdoor environments.
Key Technology
-
570W High-Power Output
Delivers 570 watts of rated front-side power under Standard Test Conditions, supporting efficient photovoltaic electricity generation. -
22.07% Module Efficiency
High photovoltaic conversion efficiency helps maximize electricity production from available installation space. -
Advanced N-Type Monocrystalline Technology
Uses N-Type bifacial monocrystalline cells engineered for efficient solar energy conversion and dependable electrical performance. -
144 Half-Cut Solar Cells
Features an advanced half-cut cell arrangement designed to reduce internal electrical losses and support reliable photovoltaic operation. -
Multi-Busbar (MBB) Technology
Improves electrical current collection while supporting enhanced resistance to cell microcracking. -
Bifacial Energy Generation
Captures sunlight from both the front and rear surfaces, providing additional energy-production potential from reflected and scattered light. -
80% ± 10% Bifaciality Factor
Supports rear-side electricity generation when installation conditions provide sufficient reflected sunlight. -
Framed Dual-Glass Construction
Uses protective glass on both sides of the module to improve environmental durability and support bifacial energy generation. -
Low-Iron Anti-Reflective Front Glass
Features high-transmission anti-reflective glass designed to improve sunlight collection. -
PID-Free and UV-Resistant Encapsulation
Incorporates protective encapsulation materials designed to resist potential-induced degradation and ultraviolet exposure. -
Enhanced Microcrack Resistance
Multi-busbar module construction is designed to improve reliability and tolerance to cell microcracking. -
Improved Temperature Performance
Features favorable thermal characteristics to help reduce power losses during elevated operating temperatures. -
Improved Weak-Light Performance
Designed to support photovoltaic electricity generation under reduced solar irradiance conditions. -
High Mechanical Load Resistance
Engineered to withstand demanding wind and snow loads when installed according to approved mounting requirements. -
1500V DC System Compatibility
Supports appropriately designed high-voltage photovoltaic systems and flexible solar string configurations. -
IP68 Junction Box
Features a weather-resistant junction box designed to protect electrical connections in outdoor photovoltaic environments. -
Long-Term Warranty Protection
Supported by a 12-year product warranty and a 30-year power output warranty.
Best Uses
-
Residential Rooftop Solar Systems
Suitable for residential photovoltaic installations where the roof structure and electrical design support the module configuration. -
Commercial Rooftop Solar Installations
Provides efficient electricity generation for businesses seeking dependable solar energy production. -
Ground-Mounted Solar Arrays
Well suited to installations where reflected sunlight from the ground can contribute to additional rear-side electricity generation. -
Bifacial Solar Installations
Ideal for mounting configurations that allow reflected and scattered sunlight to reach both surfaces of the module. -
High-Voltage Photovoltaic Systems
Supports compatible photovoltaic string designs using appropriately rated inverters and electrical equipment. -
Long-Term Solar Energy Investments
Offers durable module construction and extended power output warranty coverage for projects prioritizing dependable electricity generation.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Waaree Solar Americas Inc. |
| Brand | Waaree |
| Model Number | BiN-08-570 |
| Product SKU | BiN-08-570 33MM |
| Product Series | Elite Series N-Type |
| Product Type | Framed Dual-Glass Bifacial Solar Panel |
| Rated Maximum Power (Pmax) – STC | 570W |
| Module Efficiency | 22.07% |
| Maximum Power Voltage (Vmp) – STC | 43.71V |
| Maximum Power Current (Imp) – STC | 13.04A |
| Open-Circuit Voltage (Voc) – STC | 52.10V |
| Short-Circuit Current (Isc) – STC | 13.81A |
| Solar Cell Technology | M10 / M10R N-Type Bifacial Monocrystalline |
| Number of Cells | 144 Half-Cut Cells |
| Cell Arrangement | 12 × 6 || 12 × 6 |
| Busbar Technology | Multi-Busbar (MBB) |
| Bifaciality Factor | 80% ± 10% |
| Module Construction | Framed Dual Glass |
| Front Glass | 2 mm Low-Iron HTAR Semi-Tempered Glass |
| Rear Glass | 2 mm Low-Iron Printed Semi-Tempered Glass |
| Encapsulation | PID-Free and UV-Resistant |
| Frame Material | Anodized Aluminum Alloy |
| Frame Thickness | 33 mm (1.30 in) |
| Junction Box | IP68-Rated Weatherproof PPO |
| Connector Type | IP68-Rated, MC4-Compatible |
| Output Cable Cross-Section | 4 mm² |
| Output Cable Length | 500 mm (19.69 in) |
| Module Dimensions (L × W × H) | 89.69 × 44.65 × 1.30 in |
| Module Weight | 71.65 lb |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Mechanical Snow Load | 5400 Pa |
| Mechanical Wind Load | 2400 Pa |
| Maximum Power (Pmax) – NOCT | 430.40W |
| Maximum Power Voltage (Vmp) – NOCT | 40.74V |
| Maximum Power Current (Imp) – NOCT | 10.54A |
| Open-Circuit Voltage (Voc) – NOCT | 49.50V |
| Short-Circuit Current (Isc) – NOCT | 11.14A |
| Nominal Operating Cell Temperature (NOCT) | 43°C ± 2°C |
| Temperature Coefficient of Pmax | -0.30%/°C |
| Temperature Coefficient of Voc | -0.26%/°C |
| Temperature Coefficient of Isc | +0.046%/°C |
| Illustrative Total Power with 15% Rear-Side Gain | 656W |
| Illustrative Total Power with 20% Rear-Side Gain | 684W |
| Illustrative Total Power with 25% Rear-Side Gain | 713W |
| Illustrative Total Power with 30% Rear-Side Gain | 741W |
| Product Warranty | 12 Years |
| Power Output Warranty | 30 Years |
| First-Year Warranted Power Retention | 99% |
| Warranted Power Retention at Year 12 | 94.6% |
| Warranted Power Retention at Year 30 | 87.4% |
About Waaree Solar Americas Inc.:
Waaree Solar Americas Inc. is part of the Waaree Group, a global renewable energy company with a significant presence in photovoltaic module manufacturing and solar energy solutions.
Waaree Energies Limited, headquartered in Mumbai, India, is a vertically integrated solar energy company with operations spanning photovoltaic manufacturing, project development, and solar energy solutions.
Waaree Solar Americas supports the company's presence in the United States, including domestic photovoltaic module manufacturing capabilities. The Waaree Elite Series incorporates advanced N-Type monocrystalline technology, bifacial energy generation, and durable module construction.
Manufacturing origin and domestic-content eligibility for this specific SKU should be verified using the supplied product documentation and applicable project requirements.
570W N-Type Bifacial Solar Performance with Waaree Elite Series Technology
The Waaree BiN-08-570 33MM combines 570W rated power output, 22.07% module efficiency, advanced N-Type bifacial monocrystalline cells, multi-busbar technology, and durable dual-glass construction. With enhanced microcrack resistance, PID-resistant encapsulation, favorable temperature characteristics, and extended manufacturer warranty coverage, it provides a dependable photovoltaic solution for residential, commercial, and ground-mounted solar energy installations.
