VSUN 595W TOPcon Bifacial (Pallet of 31) Assembled in USA VSUN590N-144BMH-DG
Assembled in the USA
California Energy Commission Listed (CEC)

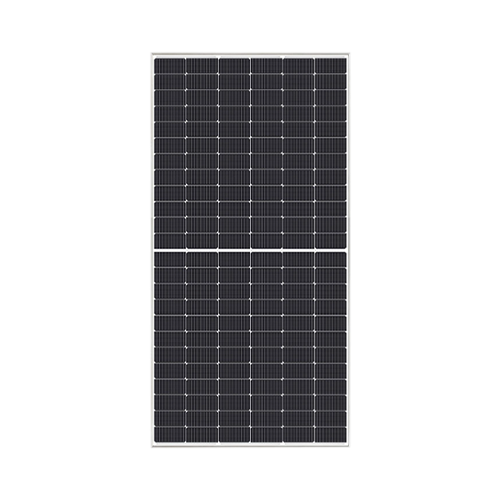

The VSUN595N-144BMH-DG is a high-efficiency N-type TOPCon bifacial dual-glass solar module engineered for utility-scale, commercial, and large ground-mount solar installations. Combining advanced TOPCon cell architecture, multi-busbar (MBB) technology, and robust dual-glass construction, this module delivers strong front-side output, additional rear-side energy gain, and excellent long-term reliability with low annual degradation.
Key Technology
-
N-Type TOPCon Cell Technology
Higher efficiency, improved low-light response, and superior long-term power retention with minimal LID/LeTID effects. -
Bifacial Dual-Glass Design
Bifaciality of 80% ± 10% allows additional rear-side power generation depending on ground reflectivity and mounting configuration. -
MBB Technology with Circular Ribbon
Enhances current collection, reduces resistive losses, and improves performance under partial shading. -
Excellent Temperature Performance
Low Pmax temperature coefficient of -0.29%/°C helps maintain output in hot climates.
Best Uses
-
Utility-Scale Solar Farms
High wattage and bifacial gains help reduce balance-of-system costs and improve LCOE. -
Commercial & Industrial Ground-Mount
Durable dual-glass construction supports long service life in large C&I systems. -
High-Temperature & Harsh Environments
Strong resistance to PID, humidity, salt mist, and temperature stress.
Warranty
-
Product Warranty: 12 years quality assurance
-
Performance Warranty: 30-year linear power output guarantee
-
Degradation: 1.0% first year, 0.40% annually thereafter :
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | VSUN |
| Model | VSUN595N-144BMH-DG |
| Cell Technology | N-Type TOPCon, bifacial, dual-glass |
| Maximum Power (Pmax) | 595 W |
| Module Efficiency | 23.03% |
| Maximum Power Voltage (Vmpp) | 44.71 V |
| Maximum Power Current (Impp) | 13.31 A |
| Open-Circuit Voltage (Voc) | 52.90 V |
| Short-Circuit Current (Isc) | 13.98 A |
| Power Temperature Coefficient (Pmax) | -0.29% / °C |
| Voltage Temperature Coefficient | -0.24% / °C |
| Current Temperature Coefficient | +0.05% / °C |
| NOCT | 45°C (±2°C) |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 30 A |
| Module Dimensions | 89.69 × 44.65 × 1.38 in |
| Weight | 72.09 lb |
| Frame | Silver anodized aluminum profile |
| Front / Back Glass | 2.0 mm AR-coated semi-toughened / 2.0 mm glazed semi-toughened |
| Bifaciality | 80% ± 10% |
| Junction Box | IP68, 3 diodes |
| Operating Temperature Range | -40°C to +85°C |
| Mechanical Load | +5400 / -2400 Pa (+113 / -50 psf) |
| Fire Rating | Class C (IEC) / TYPE 29 (US) |
| Pallet Quantity | 31 modules |
About VSUN:
VSUN SOLAR, invested by Fuji Solar and headquartered in Tokyo, Japan, is a global provider of high-efficiency solar modules. The company is recognized as a BNEF Tier 1 manufacturer and has received PVEL “Best Performer” and EcoVadis “Bronze Award” distinctions.
High-Efficiency Bifacial Power for Large-Scale Projects
The VSUN595N-144BMH-DG delivers strong front-side output, additional rear-side energy gains, and proven long-term durability—making it an excellent choice for solar projects focused on maximizing lifetime energy yield and ROI.
