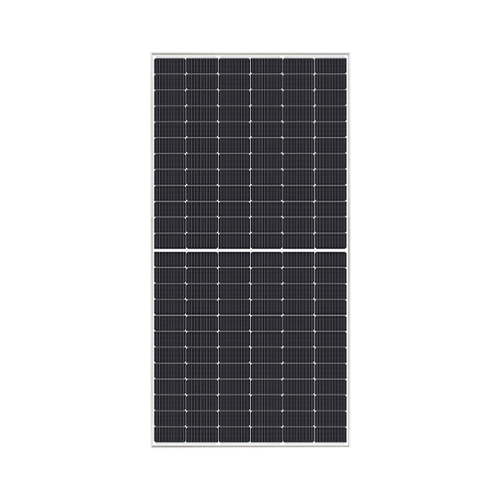

VSUN 545W (Pallet of 30) Bifacial Dual‑Glass Half‑Cut Solar Panel VSUN545‑144BMH‑DG
VSUN545-144BMH-DG
VSUN 545W (Pallet of 30) Bifacial Dual‑Glass Half‑Cut Solar Panel VSUN545‑144BMH‑DG
Made in Japan
Pallet Only - 30 Panels/Pallet
Key Benefits
High Output: 545 W nameplate with 21.32% module efficiency to reduce BOS per watt.
Bifacial Gain: Up to ~30% rear‑side contribution (bifaciality 70% ± 10%) depending on site albedo.
Reliable in Heat: Low Pmax temp. coefficient (‑0.32%/°C) sustains production in hot climates.
Robust Construction: Dual 2.0 mm glass and IP68 junction box; 5400 Pa snow / 2400 Pa wind.
Quality Assured: Engineered in Japan; positive power tolerance (0~+5 W).
Special Technology
Half‑Cut + MBB with Circular Ribbon: Lower resistive losses and better light trapping.
Micro‑Gap Layout: Optimized cell spacing for improved shading and current collection.
High‑Transparency AR Glass: Enhanced front‑side absorption and durability.
Warranty
12‑Year Material & Workmanship Warranty and 30‑Year Linear Power Output Warranty.
Best Uses
Utility‑Scale Arrays: High kW per string and tracker‑friendly bifacial design.
Commercial Rooftops & Carports: Leverage rear‑side irradiance for extra yield.
Ground‑Mount Systems: Durable dual‑glass build for harsh environments.
Bifacial Design and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the VSUN 545W solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | VSUN545‑144BMH‑DG |
| Cell Type | Monocrystalline PERC, Half‑Cut |
| Number of Cells | 144 (12×12) Bifacial |
| Max Power (Pmax) | 545 W (STC) |
| Open Circuit Voltage (Voc) | 49.81 V (STC) |
| Short Circuit Current (Isc) | 14.54 A (STC) |
| Voltage at Max Power (Vmp) | 41.80 V (STC) |
| Current at Max Power (Imp) | 13.04 A (STC) |
| Module Efficiency | 21.32% |
| Power Tolerance | 0 ~ +5 W |
| Temperature Coefficient (Pmax) | ‑0.32%/°C |
| Temperature Coefficient (Voc) | ‑0.27%/°C |
| Temperature Coefficient (Isc) | +0.048%/°C |
| Operating Temperature | ‑40 °C to +85 °C |
| NOCT | 45 °C (±2 °C) |
| Max System Voltage | 1500 V DC |
| Max Series Fuse Rating | 30 A |
| Bifaciality | 70% ± 10% |
| Front Glass | 2.0 mm high‑transparency, AR‑coated semi‑toughened safety glass |
| Back Glass | 2.0 mm glazed, semi‑toughened safety glass |
| Encapsulant | EVA or POE |
| Frame | Silver anodized aluminum profile |
| Junction Box | IP68, 3 diodes |
| Cables / Connector | Portrait 500 mm, 1×4 mm²; Connector PV‑ZH202B (custom lengths available) |
| Dimensions (L × W × H) | 88.82 × 44.61 × 1.38 in |
| Weight | 71.65 lb |
| Mechanical Load | 5400 Pa (front) / 2400 Pa (rear); Hail 25 mm @ 23 m/s |
| Application / Fire Class | Class A |
| Packaging | Pallet 2290 × 1125 × 1253 mm; 20′: 150 pcs / 40′: 300 pcs / 40′HC: 600 pcs |
| Linear Power (30 yrs) | 30‑Year Linear Power Output Warranty |
About VSUN:
VSUN Solar, headquartered in Tokyo and backed by Fuji Solar, produces high-efficiency mono and bifacial PV modules using PERC and TOPCon technologies. With manufacturing in Vietnam and global offices, VSUN is a BloombergNEF Tier 1 supplier, recognized by PVEL for quality and offering up to 30-year performance warranties.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: Are VSUN panels suitable for areas with low sunlight?
Yes, VSUN panels are engineered to perform efficiently even in low-light conditions such as cloudy skies, hazy weather, and during early morning or late afternoon hours.
Q: What kind of warranty does VSUN offer for the VSUN545-144BMH-DG?
VSUN offers a 12-year product warranty and a 30-year linear power output warranty, ensuring long-term performance and reliability.
Q: Are these panels compatible with different mounting systems?
Yes, the VSUN545-144BMH-DG is compatible with most standard mounting systems, making installation straightforward for both rooftop and ground-mounted projects.
Q: How durable are VSUN panels in harsh weather conditions?
These panels are designed to withstand extreme environments, including heavy snow loads, strong winds, and high temperatures. They feature dual-glass construction for added durability and anti-reflective glass to boost efficiency.
