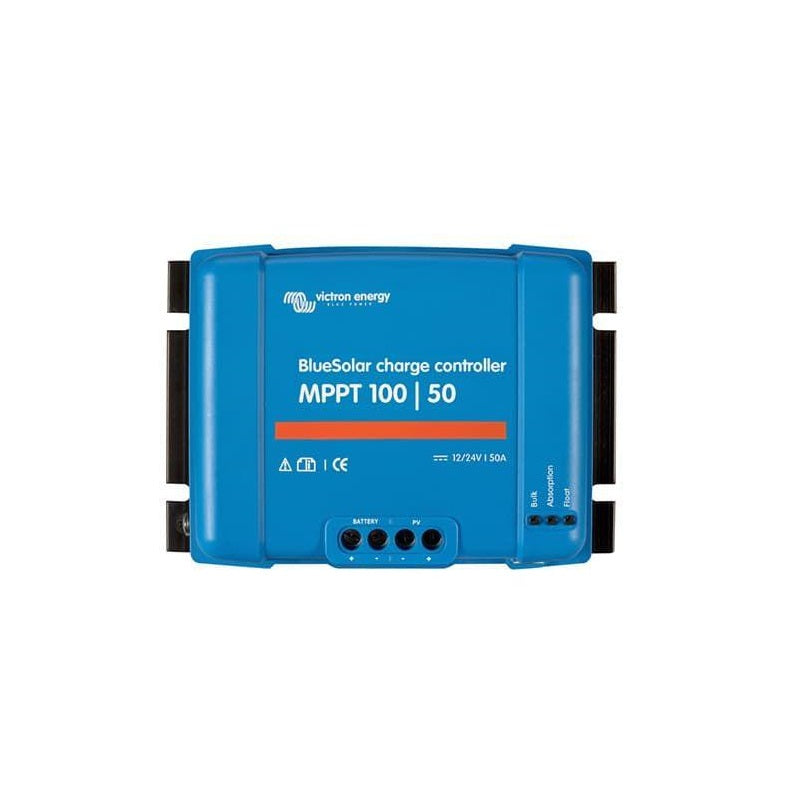

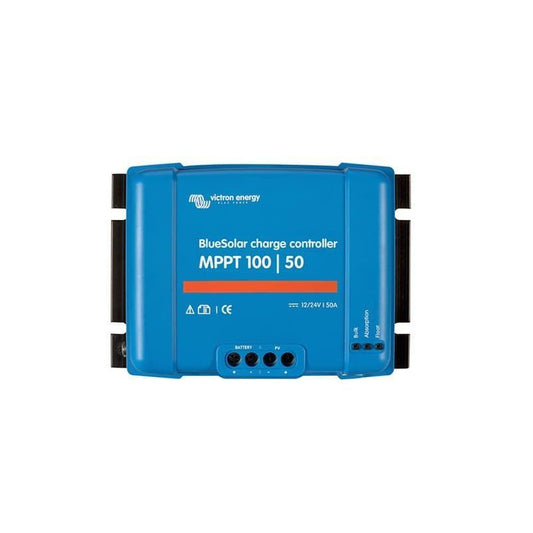

Victron SCC020050200 BlueSolar MPPT 100/50

Victron SCC020050200 BlueSolar MPPT 100/50

Regular price $238.76
Sale price $238.76 Regular price $252.35
5% OFF
5% OFF

Victron SCC020050200 BlueSolar MPPT 100/50

Victron SCC020050200 BlueSolar MPPT 100/50

No reviews
Regular price $238.76
Sale price $238.76 Regular price $252.35
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
28.6 lb
Dimension
7.3 x 5.15 x 2.7
Victron SCC020050200 BlueSolar MPPT 100/50

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life. PWM and MPPT charge controllers are both widely used to charge batteries with solar power. The PWM controller is in essence a switch that connects a solar array to the battery. The result is that the voltage of the array will be pulled down to near that of the battery. The MPPT controller is more sophisticated (and more expensive): it will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and panels wired in series to produce 36 volts on the other.


SPECIFICATIONS

Model SCC020050200
Series -
Manufacturer Victron


GENERAL SPECIFICATION

Rated charge current 50A
Nominal PV power, 12V 1a,b) 700W
Nominal PV power, 24V 1a,b) 1400W
Maximum PV open circuit voltage 100V
Max. PV short circuit current 2) 60A
Maximum efficiency 98%
Operating temperature -30 to +60°C
Humidity 95%, non-condensing


Warranty

  • 5 Years

* Refer to warranty document for terms and conditions
Documentation

Data Sheet
