Victron SCC010020060 BlueSolar PWM DUO-LCD&USB 12/24V-20A

Victron SCC010020060 BlueSolar PWM DUO-LCD&USB 12/24V-20A

Regular price $74.29
Sale price $74.29 Regular price $69.09
-8% OFF
100 IN STOCK
No reviews
Leave a Review

MPN No: SCC010020060

Victron SCC010020060 BlueSolar PWM DUO-LCD&USB 12/24V-20A

Victron SCC010020060 BlueSolar PWM DUO-LCD&USB 12/24V-20A

No reviews
Leave a Review
Regular price $74.29
Sale price $74.29 Regular price $69.09

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
3.43 lb
Dimension
2.99X6.02X1.45 Inch
Victron SCC010020060 BlueSolar PWM DUO-LCD&USB 12/24V-20A

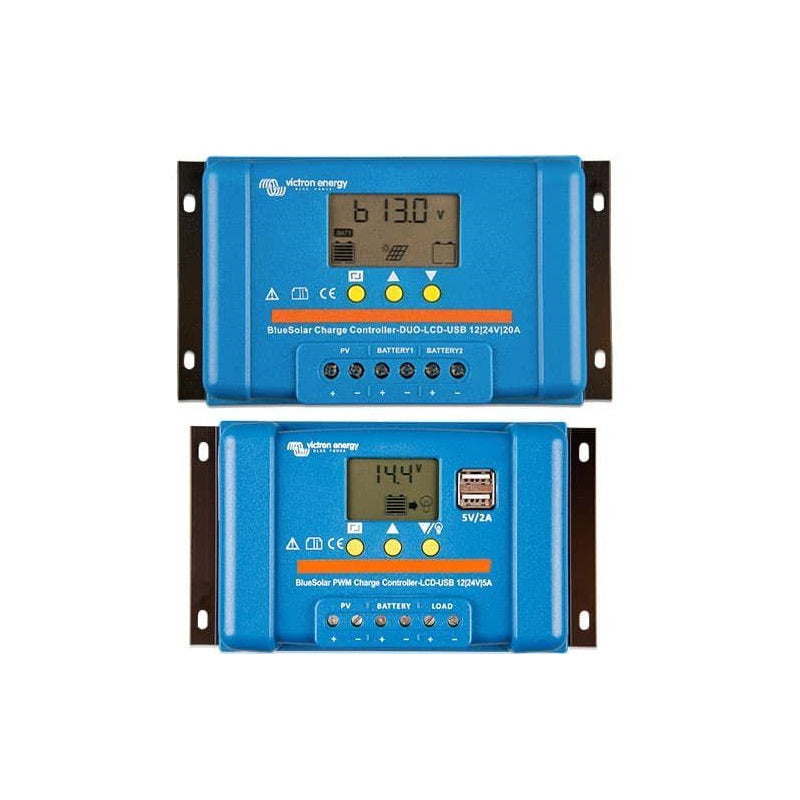

The BlueSolar PWM DUO 12/24V-20A by Victron Energy is a solar charger that A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. The BlueSolar PWM Duo charger has been developed to be able to charge two battery circuits each independently. It is possible to program the charging current in output. The charger can also adapt the charging voltage according to the type of battery.


SPECIFICATIONS

Model SCC010020060
Series -
Manufacturer Victron


GENERAL SPECIFICATION

Rated charge current 20A
Automatic load disconnect Yes
Self-consumption < 10 mA
Operating temp. range -35 to +60°C (full load)
Humidity (non-condensing) Max 95%


Warranty

  • 5 Years

* Refer to warranty document for terms and conditions
Documentation

Data Sheet

Detailed Information

Liquid Crystal Display

Two 5 Volt USB outputs

Lighting control function, fully programmable

Three stage battery charging (bulk, absorption, float), fully programmable

Load output with low voltage and manual disconnect (programmable)

Load output protected against over load and short circuit

Protected against reverse polarity connection of the solar panels and/or battery
