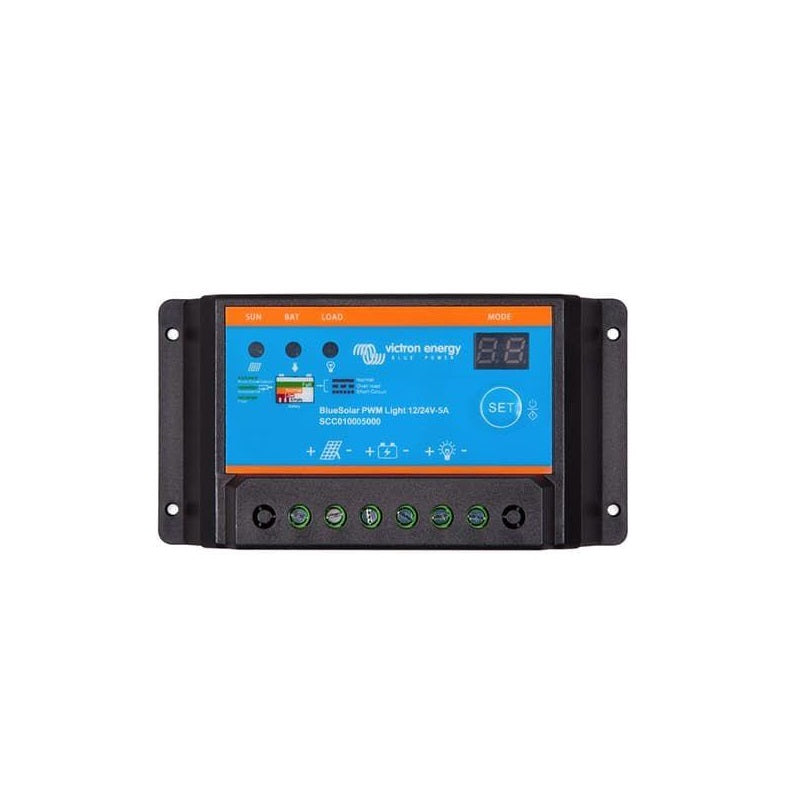

Victron Energy BlueSolar PWM-Light 12/24V 5A Solar Charge Controller – SCC010005000

The Victron Energy BlueSolar PWM-Light 12/24V 5A Solar Charge Controller | SCC010005000 is a compact and reliable solar battery charging solution designed for small off-grid photovoltaic systems, remote lighting applications, and battery-based DC power installations. Featuring 5A rated charging current, automatic 12V/24V battery voltage detection, three-stage battery charging, and integrated load control, this controller provides essential solar energy management in a simple, easy-to-use design.

Using Pulse Width Modulation (PWM) charging technology, the BlueSolar PWM-Light regulates the electricity delivered from compatible solar panels to connected batteries. Its fixed three-stage charging process includes bulk, absorption, and float charging to help maintain appropriate battery charging conditions.

The controller features a two-digit seven-segment display for configuring supported load output functions, including a day/night lighting timer. Its integrated load output includes automatic low-battery voltage disconnect functionality to help prevent excessive battery discharge.

Additional protection features include battery reverse polarity protection, photovoltaic reverse polarity protection, output overload protection, short-circuit protection, and overtemperature protection. With low self-consumption and straightforward wiring terminals, the BlueSolar PWM-Light 5A is a practical choice for smaller battery-based solar applications.

Key Technology

• 5A PWM Solar Charge Controller: Regulates photovoltaic battery charging for compatible small solar energy systems.
• Automatic 12V/24V Detection: Automatically identifies the nominal voltage of the connected battery system.
• Three-Stage Battery Charging: Uses fixed bulk, absorption, and float charging stages.
• Integrated Load Output: Provides controlled DC load operation with battery voltage protection.
• Low-Voltage Load Disconnect: Automatically disconnects connected loads when battery voltage falls below the specified threshold.
• Automatic Load Reconnection: Restores load operation after the battery reaches the required recovery voltage.
• Day/Night Lighting Control: Supports solar lighting applications through a configurable timer function.
• Two-Digit LED Display: Allows quick configuration of supported load output and timer functions.
• Low Self-Consumption: Minimizes controller power usage in battery-powered applications.
• Load Overload Protection: Disconnects the load output when specified overload conditions occur.
• Short-Circuit Protection: Provides immediate shutdown of the load output during a detected short circuit.
• Reverse Polarity Protection: Includes protection against incorrect battery and photovoltaic polarity connections.
• Overtemperature Protection: Protects the controller during excessive operating temperatures.
• Common Positive Grounding: Designed for electrical systems using a common positive connection.
• Compact Construction: Suitable for small solar power installations where mounting space is limited.

Best Uses

• Small Off-Grid Solar Systems: Provides basic photovoltaic battery charging for compact standalone energy installations.
• Solar Lighting Systems: Supports lighting applications using its day/night timer and controlled load output.
• Remote Cabins and Sheds: Suitable for small battery-powered electrical loads and solar charging systems.
• 12V Battery Charging: Designed for compatible nominal 12V battery installations.
• 24V Battery Charging: Supports appropriately configured nominal 24V battery systems.
• Remote DC Equipment: Provides solar charging and controlled DC power for compatible low-power equipment.
• Solar-Powered Signage: Suitable for small lighting and signage systems with compatible electrical requirements.
• Educational Solar Projects: Provides straightforward PWM charging and load management for appropriately designed solar demonstrations.

Product Specifications

Simple and Reliable Solar Battery Charging with Victron BlueSolar PWM-Light

The Victron Energy BlueSolar PWM-Light 12/24V 5A Solar Charge Controller SCC010005000 combines automatic battery voltage detection, fixed three-stage PWM charging, integrated load control, day/night lighting functionality, and essential electrical protection. Designed for small off-grid photovoltaic systems, it provides a practical solar battery charging solution for compatible 12V and 24V applications.
