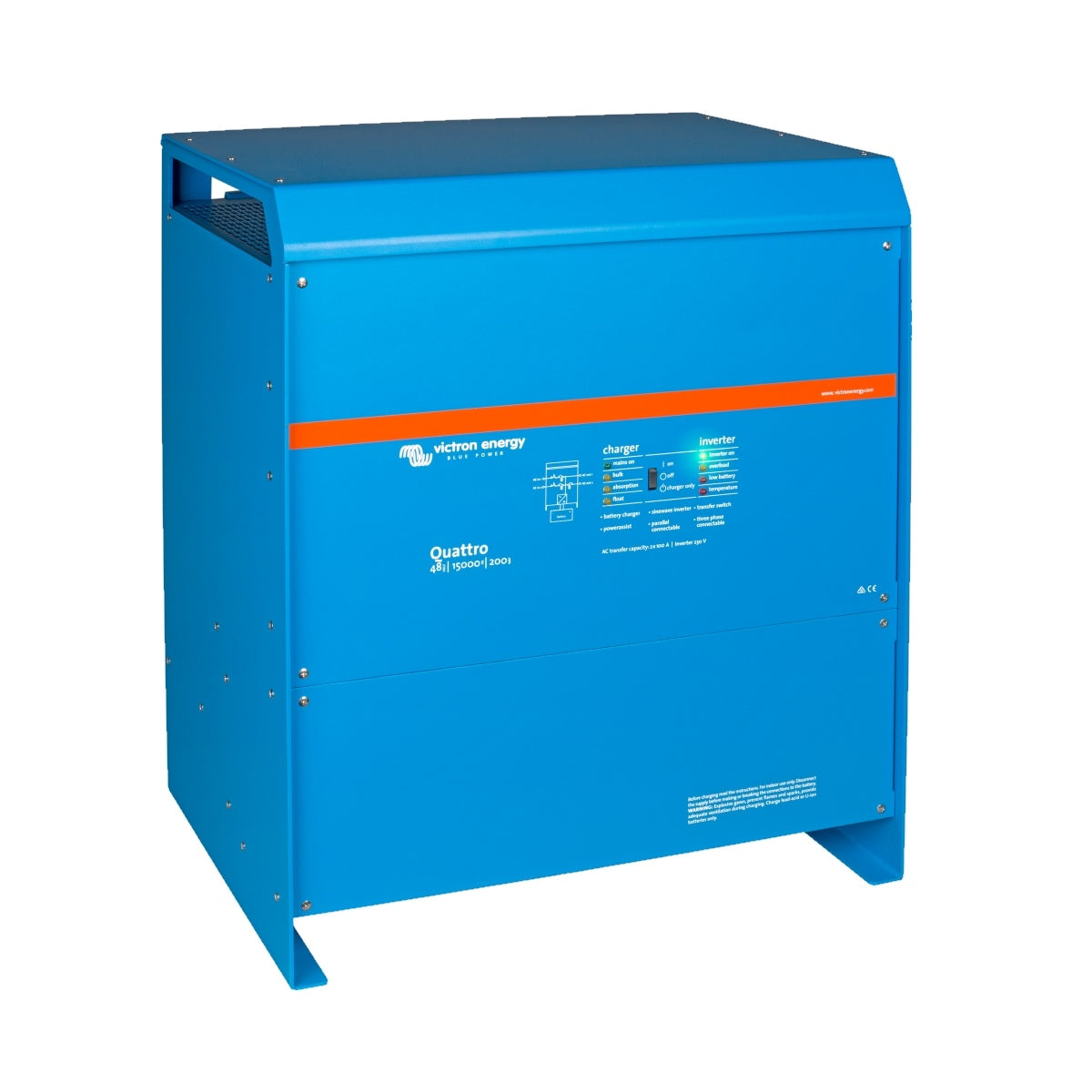

Victron Quattro 48/15000/200-100/100 230V Inverter / Charger

Victron Quattro 48/15000/200-100/100 230V Inverter / Charger

Regular price $4,250
Sale price $4,250 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: 48/15000/200-100/100

Victron Quattro 48/15000/200-100/100 230V Inverter / Charger

Victron Quattro 48/15000/200-100/100 230V Inverter / Charger

No reviews
Leave a Review
Regular price $4,250
Sale price $4,250 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
158.7 lb
Dimension
22.5 x 19.2 x 13.5 inches

Victron Quattro 48/15000/200-100/100 230V Inverter / Charger

Introducing the Victron Quattro 48/15000/200-100/100 230V, a versatile inverter and charger designed for superior power management. This innovative product seamlessly combines functionality with reliability, providing a comprehensive solution for your energy needs. With its unique ability to connect to two independent AC sources and its powerful charging capabilities, the Quattro stands out as an essential component for any off-grid or grid-connected power system.

  • Two AC inputs with integrated transfer switch for seamless source transition.
  • PowerControl and PowerAssist features to manage and supplement generator or shore power.
  • Capability to form a three-phase power system and parallel connection for scalability.
  • Efficient energy management, allowing for off-grid, grid-connected, and alternative energy use.
  • Advanced monitoring and control options, including remote management via VRM website.

Technology and Overview

The Quattro utilizes cutting-edge technology to offer unparalleled efficiency and performance. Its inverter function delivers a continuous power output of 12000W at 25°C, with peak power reaching up to 25000W, ensuring your energy needs are met without interruption. The integration of PowerControl and PowerAssist technologies allows for intelligent energy management, optimizing the balance between input sources and power demands.

Installation and Compatibility Overview

Easy to install and configure, the Victron Quattro is compatible with a wide range of systems. It supports parallel and three-phase configurations and can be integrated into various applications using Victron's proprietary VE.Bus communication protocol. Its design accommodates easy monitoring and control, catering to both on-site and remote management needs.

Benefits and Applications Overview

The Quattro inverter / charger is not just a power solution; it's an investment in efficiency and sustainability. It reduces reliance on grid power, lowers energy costs, and supports environmental sustainability by integrating with renewable energy sources. Ideal for residential, commercial, and mobile applications, the Quattro is perfectly suited for anyone looking to enhance their energy system's resilience and performance.

Specifications

Specification Values
Quattro 48/15000/200-100/100
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x100
Input voltage range (V DC) 9,5 – 17V      19 – 33V      38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 15000
Cont. output power at 25°C (W) 12000
Cont. output power at 40°C (W) 10000
Cont. output power at 65°C (W) 7000
Peak power (W) 25000
Maximum efficiency (%) 96
Zero load power (W) 110
Zero load power in AES mode (W) 75
Zero load power in Search mode (W) 20
Charge voltage 'absorption' (V DC) 57.6
Charge voltage 'float' (V DC) 55.2
Storage mode (V DC) 52.8
Charge current house battery (A) (4) 200
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 50
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
