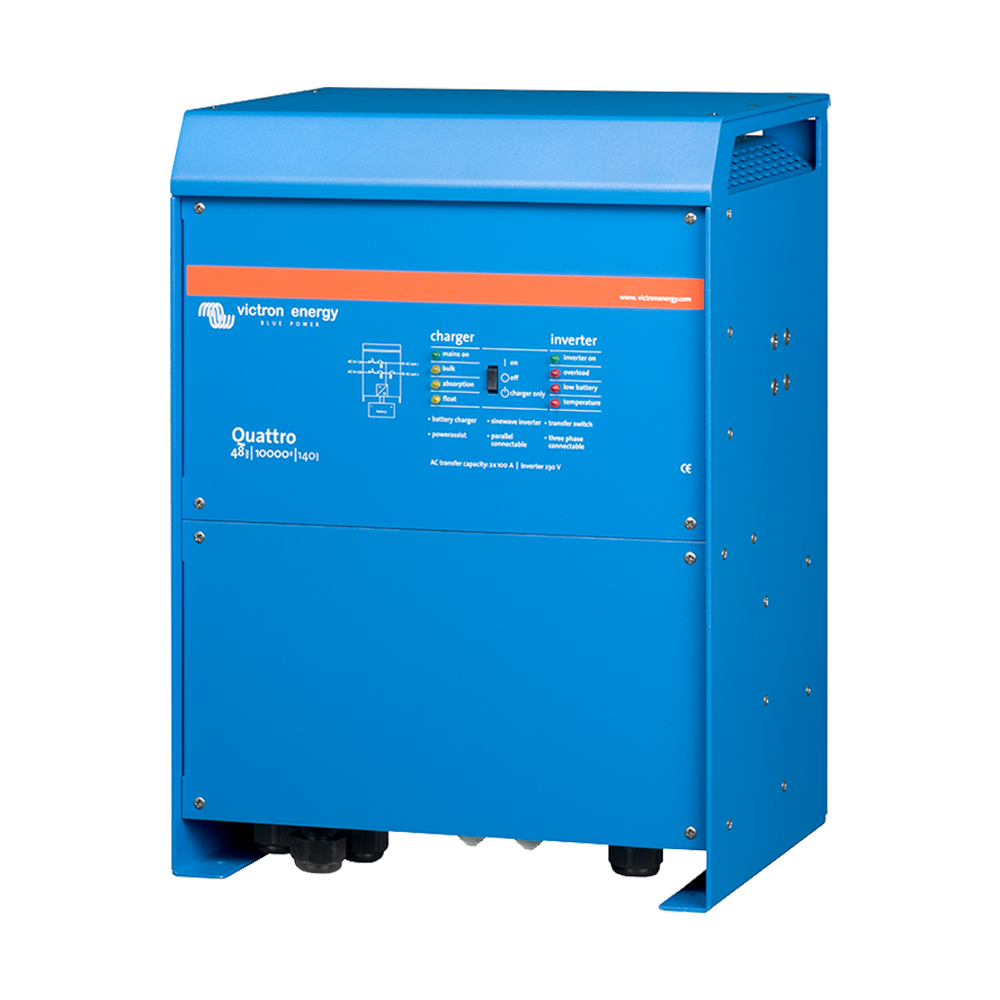

Victron Quattro 48/10000/140-100/100 230V Inverter / Charger

Victron Quattro 48/10000/140-100/100 230V Inverter / Charger

Regular price $3,200
Sale price $3,200 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: 48/10000/140-100/100

Victron Quattro 48/10000/140-100/100 230V Inverter / Charger

Victron Quattro 48/10000/140-100/100 230V Inverter / Charger

No reviews
Leave a Review
Regular price $3,200
Sale price $3,200 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
112.4 lb
Dimension
18.5 x 13.8 x 11.02 inches

Victron Quattro 48/10000/140-100/100 230V Inverter / Charger

Explore the unmatched capabilities of the Victron Quattro 48/10000/140-100/100 230V Inverter / Charger, a pivotal solution for sophisticated power management. Designed to provide reliability and versatility, this model stands at the forefront of energy conversion and storage solutions, offering seamless integration with various energy systems and ensuring continuous power supply.

  • Simultaneous connection to two independent AC sources with automatic switching.
  • Uninterrupted power supply with less than 20 milliseconds switch-over time.
  • Advanced PowerControl and PowerAssist to optimize energy use and prevent overload.
  • Compatible with off-grid, grid-connected, and hybrid systems, enhancing energy independence.
  • Scalable design for three-phase systems and parallel configurations for larger setups.

Technology and Overview

The Quattro is engineered with precision, incorporating innovative features that ensure efficient energy management and conversion. It provides a robust solution for handling peak power demands while ensuring the sustainability of battery life and compatibility with renewable energy sources.

Installation and Compatibility Overview

This model is designed for flexibility in installation and compatibility, supporting a wide array of systems. Its integration features facilitate easy setup and configuration for both stand-alone and complex networked systems, ensuring reliable operation across various applications.

Benefits and Applications Overview

The Victron Quattro inverter/charger brings forth significant benefits, including reduced energy costs, enhanced system resilience, and support for sustainable energy practices. It is ideal for a broad range of applications, from residential to commercial and mobile setups, offering unmatched efficiency and reliability.

Specifications

Specification Values
Quattro 48/10000/140-100/100
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x100
Input voltage range (V DC) 9,5 – 17V      19 – 33V       38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 10000
Cont. output power at 25°C (W) 8000
Cont. output power at 40°C (W) 6500
Cont. output power at 65°C (W) 4500
Peak power (W) 20000
Maximum efficiency (%) 96
Zero load power (W) 60
Zero load power in AES mode (W) 40
Zero load power in Search mode (W) 15
Charge voltage 'absorption' (V DC) 57.6
Charge voltage 'float' (V DC) 55.2
Storage mode (V DC) 52.8
Charge current house battery (A) (4) 140
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 50
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
