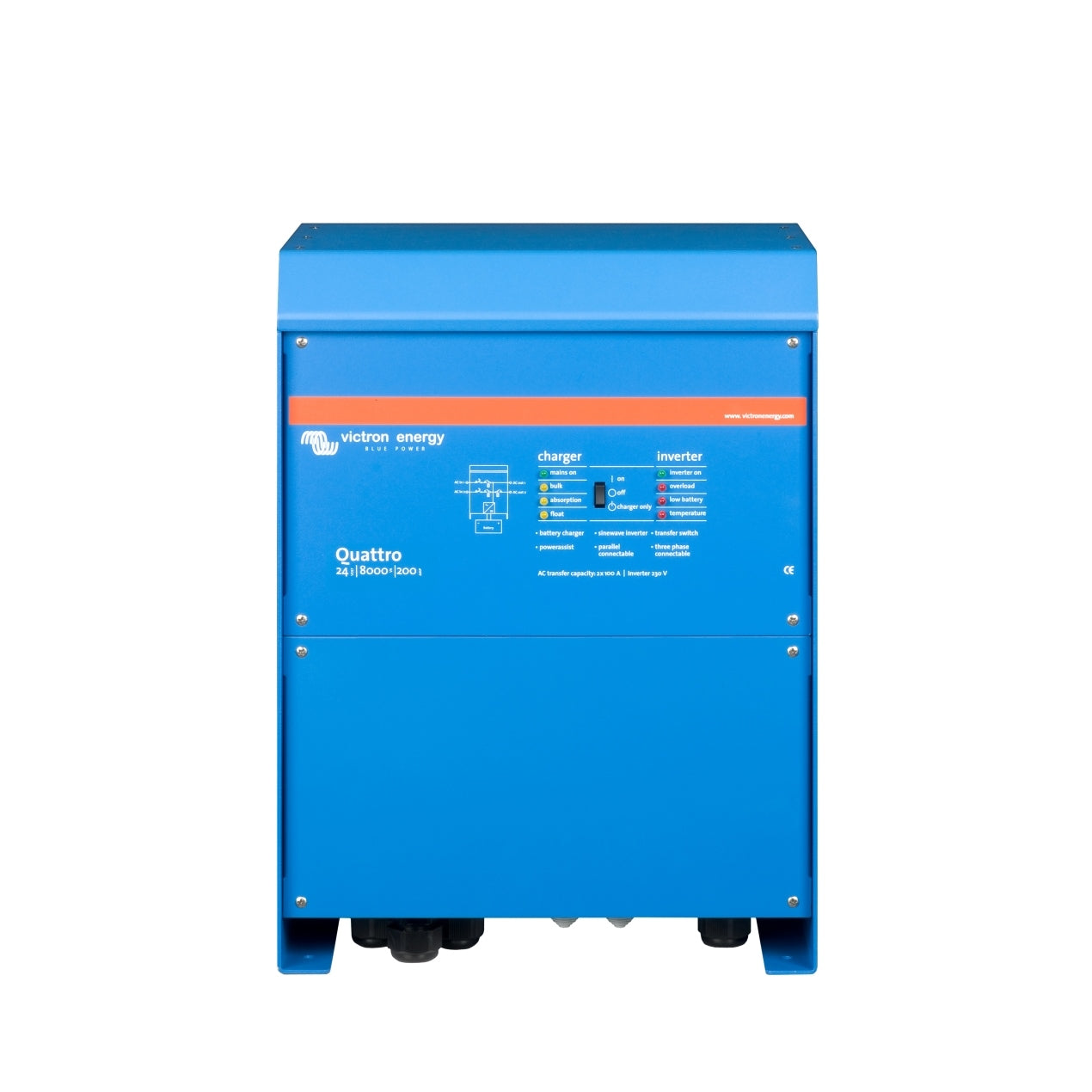

Victron Quattro 24/8000/200-100/100 230V Inverter / Charger

Victron Quattro 24/8000/200-100/100 230V Inverter / Charger

Regular price $3,100
Sale price $3,100 Regular price
SOLD OUT
Leave a Review

MPN No: 24/8000/200-100/100

Victron Quattro 24/8000/200-100/100 230V Inverter / Charger

Victron Quattro 24/8000/200-100/100 230V Inverter / Charger

Regular price $3,100
Sale price $3,100 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
99.2 lb
Dimension
18.5 x 13.8 x 11.02 inches

Victron Quattro 24/8000/200-100/100 230V Inverter / Charger

Welcome to the advanced Victron Quattro 24/8000/200-100/100 230V Inverter / Charger, a cutting-edge solution designed for optimal power management and efficiency. The Quattro series is renowned for its ability to provide reliable, uninterrupted power, making it an ideal choice for a wide range of applications, from residential backup to off-grid energy systems.

  • Dual AC inputs with automatic source selection for continuous power supply.
  • Integrated transfer switch ensures seamless transition between power sources.
  • PowerControl and PowerAssist features to manage and enhance power supply.
  • Scalable for three-phase systems and parallel configurations for increased power demand.
  • Efficiently supports off-grid, grid-connected, and hybrid PV systems.

Technology and Overview

The Quattro employs state-of-the-art technology to offer robust power solutions. Its dual AC inputs and seamless transition capabilities ensure that your power supply remains uninterrupted, while its advanced charging features optimize battery life and performance.

Installation and Compatibility Overview

Designed for ease of installation and broad compatibility, the Victron Quattro can be integrated into various systems with minimal hassle. Whether for residential, commercial, or industrial applications, this inverter/charger is built to perform.

Benefits and Applications Overview

The Victron Quattro inverter/charger is a game-changer, offering significant benefits such as energy cost savings, enhanced reliability, and support for sustainable living. It's perfectly suited for environments where consistent and efficient power is paramount.

Specifications

Specification Values
Quattro 24/8000/200-100/100
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x100
Input voltage range (V DC) 9,5 – 17V 19 – 33V 38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 8000
Cont. output power at 25°C (W) 6400
Cont. output power at 40°C (W) 5500
Cont. output power at 65°C (W) 3600
Peak power (W) 16000
Maximum efficiency (%) 94 / 96
Zero load power (W) 60 / 60
Zero load power in AES mode (W) 40 / 40
Zero load power in Search mode (W) 15 / 15
Charge voltage 'absorption' (V DC) 28,8 / 57,6
Charge voltage 'float' (V DC) 27,6 / 55,2
Storage mode (V DC) 26,4 / 52,8
Charge current house battery (A) (4) 200 / 110
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 50
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
