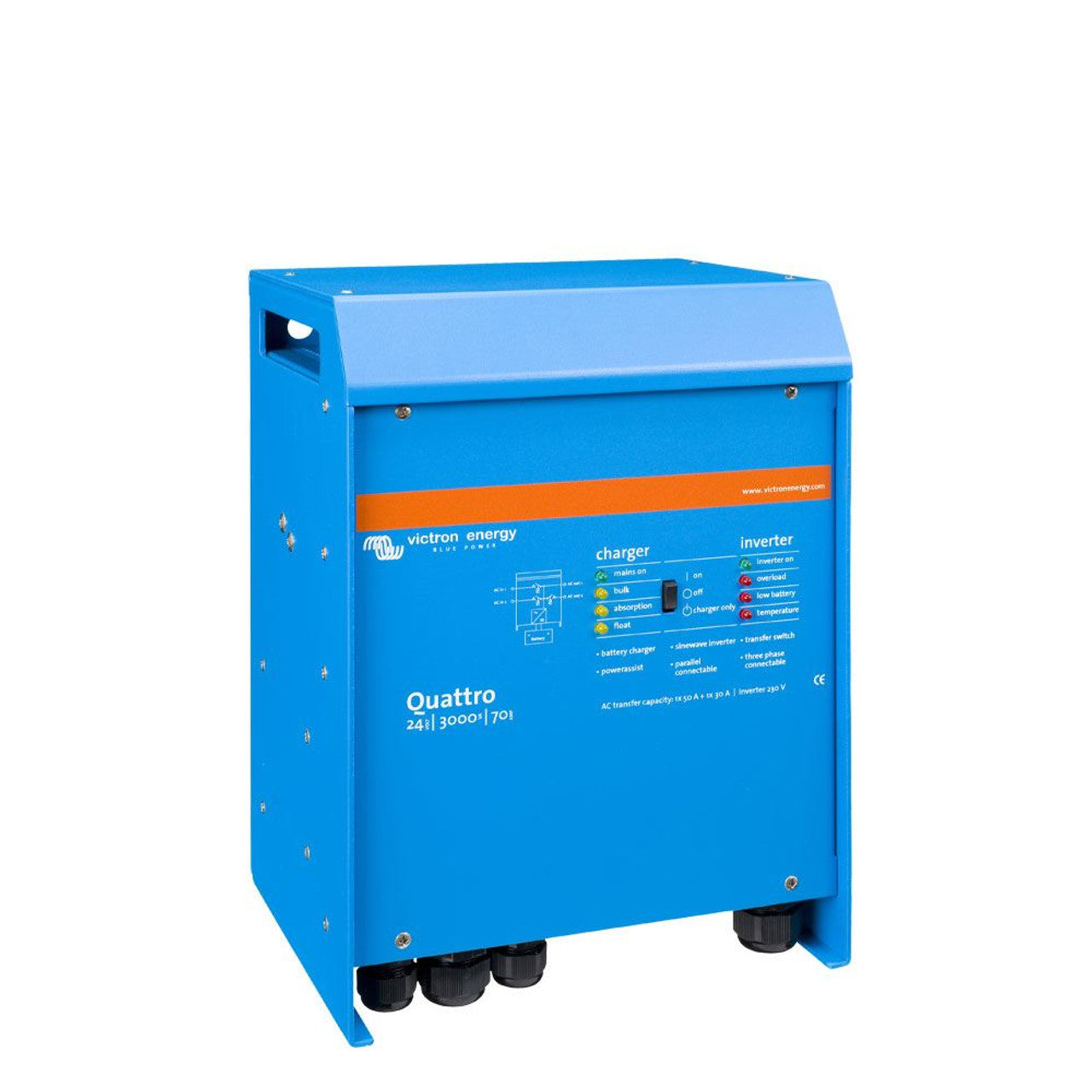

Victron Quattro 24/3000/70-50/50 230V Inverter / Charger

Victron Quattro 24/3000/70-50/50 230V Inverter / Charger

Regular price $1,800
Sale price $1,800 Regular price
SOLD OUT
Leave a Review

MPN No: 24/3000/70-50/50

Victron Quattro 24/3000/70-50/50 230V Inverter / Charger

Victron Quattro 24/3000/70-50/50 230V Inverter / Charger

Regular price $1,800
Sale price $1,800 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
41.9 lb
Dimension
14.3 x 10.2 x 8.6 inches

Victron Quattro 24/3000/70-50/50 230V Inverter / Charger

Introducing the Victron Quattro 24/3000/70-50/50 230V Inverter / Charger, an advanced solution for power conversion and management. This model is designed to offer unparalleled flexibility and reliability, ensuring a stable power supply for a wide range of applications, from residential to mobile systems.

  • Automatic connection to two independent AC sources, ensuring continuous power supply.
  • Seamless transition between power sources with no-break functionality, perfect for sensitive electronics.
  • PowerControl and PowerAssist features to prevent overload by efficiently managing power supply and demand.
  • Compatible with off-grid, grid-tied, and hybrid systems, making it a versatile choice for energy management.
  • Easy integration into existing power setups, with options for parallel and three-phase configurations for larger demands.

Technology and Overview

The Quattro incorporates cutting-edge technology for efficient power conversion, offering both inverter and charger capabilities with high efficiency and low energy loss.

Installation and Compatibility Overview

Designed for straightforward installation, this model is compatible with a wide variety of systems, offering a plug-and-play solution for energy management needs.

Benefits and Applications Overview

From reducing energy costs to enhancing system reliability, the Victron Quattro provides significant benefits, suitable for various applications including residential, commercial, and mobile systems.

Specifications

Specification Values
Quattro 24/3000/70-50/50
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x 50
Input voltage range (V DC) 9,5 – 17V 19 – 33V 38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 3000
Cont. output power at 25°C (W) 2400
Cont. output power at 40°C (W) 2200
Cont. output power at 65°C (W) 1700
Peak power (W) 6000
Maximum efficiency (%) 93 / 94
Zero load power (W) 20 / 20
Zero load power in AES mode (W) 15 / 15
Zero load power in Search mode (W) 8 / 10
Charge voltage 'absorption' (V DC) 14,4 / 28,8
Charge voltage 'float' (V DC) 13,8 / 27,6
Storage mode (V DC) 13,2 / 26,4
Charge current house battery (A) (4) 120 / 70
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 25
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Screw terminals 13 mm2 (6 AWG)
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
