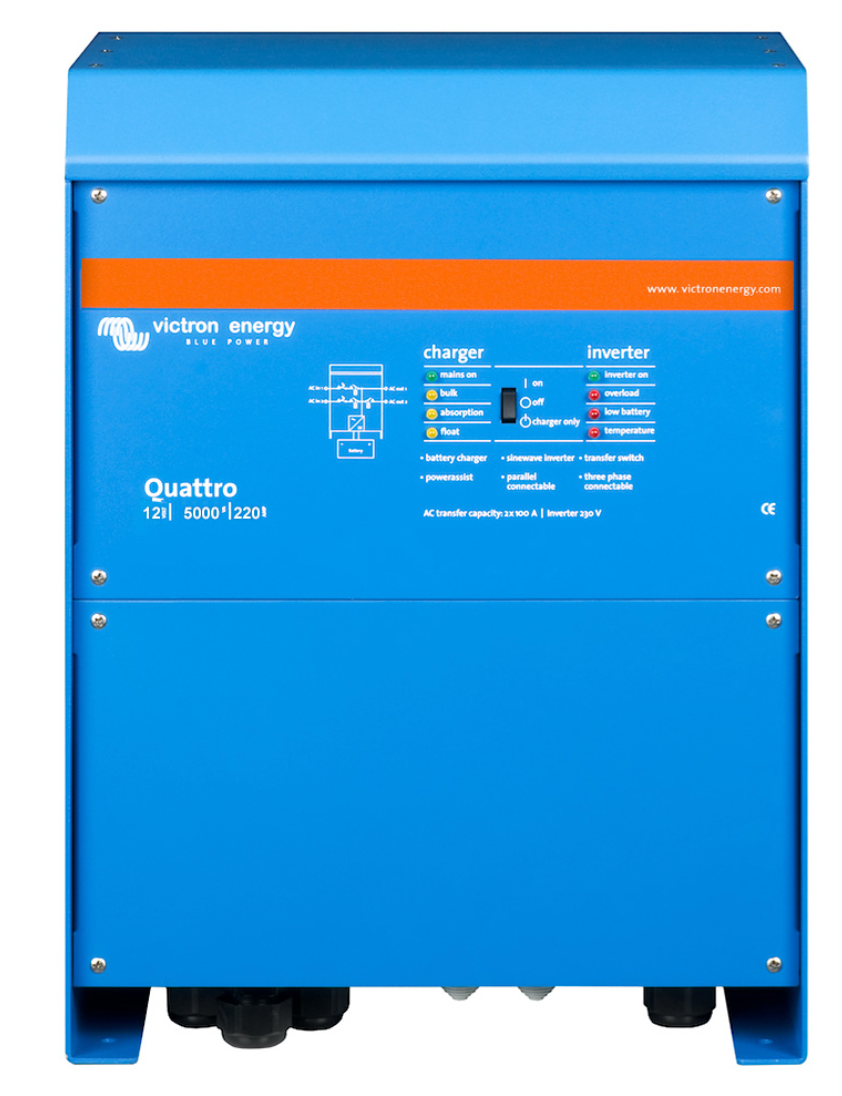

Victron Quattro 12/5000/220-100/100 230V Inverter / Charger

Victron Quattro 12/5000/220-100/100 230V Inverter / Charger

Regular price $2,700
Sale price $2,700 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: 12/5000/220-100/100

Victron Quattro 12/5000/220-100/100 230V Inverter / Charger

Victron Quattro 12/5000/220-100/100 230V Inverter / Charger

No reviews
Leave a Review
Regular price $2,700
Sale price $2,700 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
75 lb
Dimension
18.5 x 13.8 x 11.02 inches

Victron Quattro 12/5000/220-100/100 230V Inverter / Charger

Introducing the Victron Quattro 12/5000/220-100/100 230V Inverter / Charger, an exemplary model in the world of power conversion and storage. With its unique capability to manage two AC inputs and provide uninterrupted power supply, this device ensures your energy needs are met with efficiency and reliability. Ideal for a variety of settings, the Quattro is a testament to Victron's commitment to innovation and quality.

  • Seamless switching between two independent AC sources, ensuring continuous power.
  • PowerAssist technology enhances your existing power grid, preventing overload.
  • PowerControl feature allows for intelligent management of power consumption.
  • Supports both off-grid and grid-connected installations, adaptable to any system.
  • Scalable solution that can be expanded for larger applications or three-phase systems.

Technology and Overview

Equipped with the latest inverter and charger technology, the Quattro provides exceptional performance. Its dual AC input functionality and sophisticated energy management features stand out, offering both versatility and efficiency in energy conversion and storage.

Installation and Compatibility Overview

The Victron Quattro is designed for straightforward installation, compatible with a broad range of power systems. Whether for home use, industrial applications, or renewable energy projects, it integrates seamlessly, offering unparalleled reliability and performance.

Benefits and Applications Overview

From enhancing system efficiency to ensuring reliability in power supply, the Quattro offers significant benefits. Its adaptability across various applications, including renewable energy systems, makes it a valuable asset for achieving sustainability and cost-effectiveness in energy management.

Specifications

Specification Values
Quattro 12/5000/220-100/100
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x100
Input voltage range (V DC) 9,5 – 17V 19 – 33V 38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 5000
Cont. output power at 25°C (W) 4000
Cont. output power at 40°C (W) 3700
Cont. output power at 65°C (W) 3000
Peak power (W) 10000
Maximum efficiency (%) 94 / 94 / 95
Zero load power (W) 30 / 30 / 35
Zero load power in AES mode (W) 20 / 25 / 30
Zero load power in Search mode (W) 10 / 10 / 15
Charge voltage 'absorption' (V DC) 14,4 / 28,8 / 57,6
Charge voltage 'float' (V DC) 13,8 / 27,6 / 55,2
Storage mode (V DC) 13,2 / 26,4 / 52,8
Charge current house battery (A) (4) 220 / 120 / 70
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 50
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
