Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

$1,990
-% $1,990
SOLD OUT
Leave a Review

Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

Victron Energy
MPN No: 12/3000/120-50/50
Out Of Stock
$1,990
-% $1,990

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Contact us for Delivery Date

Payment

We offer multiple secure payment options for your convenience

All Victron Energy products All Inverters products

View full details
$1,990
-% $1,990
Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

MPN No:

12/3000/120-50/50

Out Of Stock
Contact us for Delivery Date
$1,990
-% $1,990
Sold out

Specifications

.PDF
Documents
.PDF
Documents
Data Sheet
Download

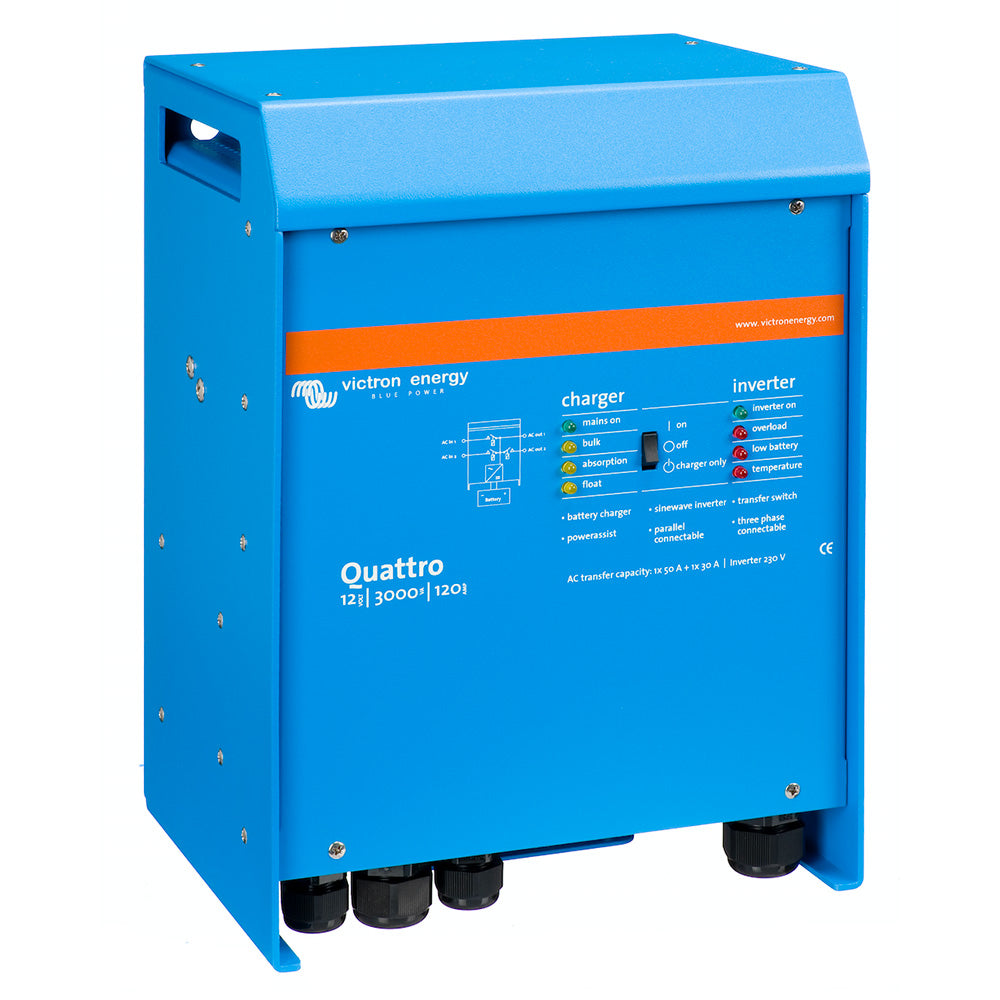

Victron Quattro 12/3000/120-50/50 230V Inverter / Charger

The Victron Quattro 12/3000/120-50/50 230V Inverter / Charger is a state-of-the-art solution for power management, designed to seamlessly integrate into a variety of energy systems. Offering reliability and versatility, this model is perfect for ensuring an uninterrupted power supply with its dual AC inputs and sophisticated energy management features.

  • Automatic switching between two independent AC sources for consistent power.
  • Fast transition to backup power, ensuring no disruption to connected devices.
  • PowerControl and PowerAssist functionalities to optimize energy usage and prevent overloads.
  • Supports a wide range of applications, including off-grid, grid-tied, and hybrid systems.
  • Scalable and flexible, suitable for parallel and three-phase configurations.

Technology and Overview

Equipped with advanced technology for efficient power conversion and battery charging, this inverter/charger is designed to meet the highest standards of reliability and performance.

Installation and Compatibility Overview

Easy to install and compatible with various systems, the Quattro 12/3000/120-50/50 offers a practical solution for energy management in diverse settings.

Benefits and Applications Overview

With its exceptional efficiency and reliability, this model provides significant benefits, including energy savings and improved system resilience, making it ideal for a broad range of applications.

Specifications

Specification Values
Quattro 12/3000/120-50/50
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x 50
Input voltage range (V DC) 9,5 – 17V 19 – 33V 38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 3000
Cont. output power at 25°C (W) 2400
Cont. output power at 40°C (W) 2200
Cont. output power at 65°C (W) 1700
Peak power (W) 6000
Maximum efficiency (%) 93 / 94
Zero load power (W) 20 / 20
Zero load power in AES mode (W) 15 / 15
Zero load power in Search mode (W) 8 / 10
Charge voltage 'absorption' (V DC) 14,4 / 28,8
Charge voltage 'float' (V DC) 13,8 / 27,6
Storage mode (V DC) 13,2 / 26,4
Charge current house battery (A) (4) 120 / 70
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 25
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Screw terminals 13 mm2 (6 AWG)
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
