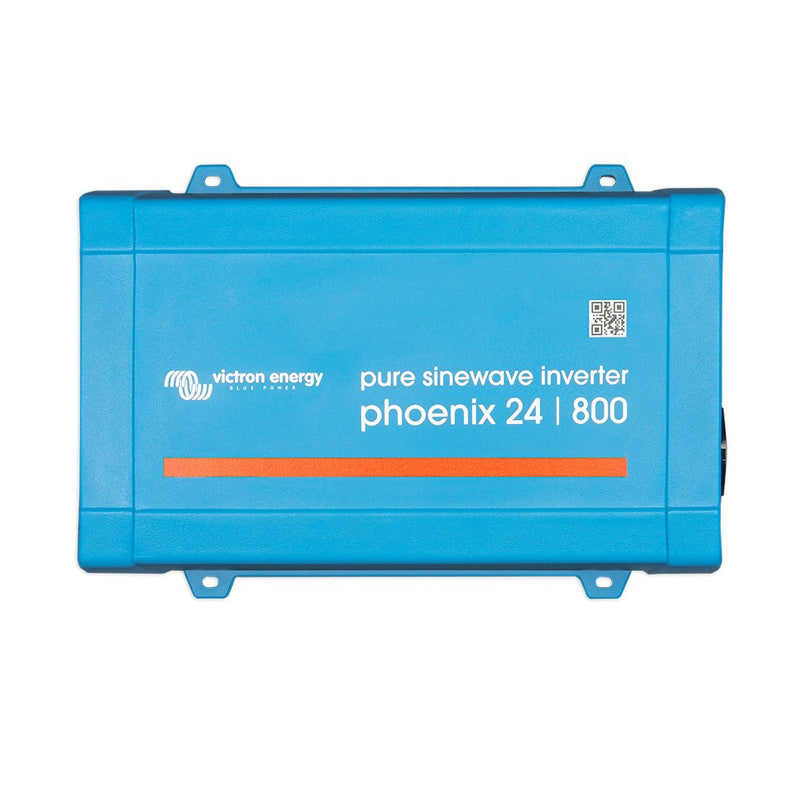

Victron Energy Phoenix 24V 800VA 120V Pure Sine Wave Inverter with VE.Direct & NEMA GFCI – PIN241800510

The Victron Energy Phoenix 24V 800VA 120V Pure Sine Wave Inverter | PIN241800510 is a compact, high-performance DC-to-AC inverter designed to deliver reliable household-quality electricity from a nominal 24V battery system. Featuring advanced pure sine wave technology, a GFCI-protected AC receptacle, VE.Direct communication, and intelligent power management, this inverter provides a flexible power solution for off-grid solar systems, recreational vehicles, marine installations, and mobile electrical applications.

With a continuous output rating of 800VA, peak output capability of 1,500W, and up to 91% maximum conversion efficiency, the Phoenix 24/800 is designed to operate compatible electronic equipment, appliances, lighting, and other AC electrical loads. Its pure sine wave output delivers stable AC electricity suitable for equipment requiring a clean power supply.

The PIN241800510 configuration includes a 120V NEMA GFCI-protected outlet, providing ground-fault protection for connected equipment. The inverter also incorporates a VE.Direct communication port for configuration and monitoring through compatible Victron interfaces, including optional Bluetooth and USB accessories.

Designed with intelligent ECO mode functionality, adjustable low-battery protection, remote on/off capability, and comprehensive electrical safeguards, the Phoenix 24/800 offers efficient battery-powered AC electricity in a compact standalone inverter design.

Important: This is a standalone inverter. It does not include a battery charger, solar charge controller, or automatic AC transfer switch. This VE.Direct model does not support parallel or phase-stacked inverter operation.

Key Technology

• 800VA Pure Sine Wave Inverter: Converts nominal 24V DC battery electricity into high-quality 120V AC power.
• 1,500W Peak Power: Provides short-duration additional output capability for compatible electrical loads with elevated startup requirements.
• Up to 91% Maximum Efficiency: Supports efficient DC-to-AC conversion while helping conserve stored battery energy.
• 24V DC Battery Compatibility: Designed for appropriately configured nominal 24V battery systems.
• 120V AC Output: Provides alternating current for compatible North American electrical equipment.
• Pure Sine Wave Technology: Produces a smooth AC waveform suitable for many electronic devices and appliances.
• NEMA GFCI Outlet: Includes a ground-fault circuit interrupter receptacle for additional electrical protection.
• VE.Direct Communication: Enables configuration and monitoring through compatible Victron communication interfaces.
• VictronConnect Compatibility: Supports inverter configuration through compatible VE.Direct accessories.
• Optional Bluetooth Connectivity: Supports wireless configuration and monitoring with a compatible VE.Direct Bluetooth Smart dongle.
• Intelligent ECO Mode: Reduces power consumption during suitable low-load conditions.
• Adjustable Low-Battery Protection: Supports configurable battery voltage shutdown and restart thresholds.
• Remote On/Off Capability: Allows inverter operation to be controlled through a compatible external switch or control device.
• Overload Protection: Helps protect the inverter against excessive electrical demand.
• Short-Circuit Protection: Provides protection against specified AC output fault conditions.
• Battery Voltage Protection: Includes safeguards against excessive and insufficient DC input voltage.
• Overtemperature Protection: Helps protect the inverter against excessive internal operating temperatures.
• Input Voltage Ripple Protection: Provides additional protection against excessive DC input ripple.
• Compact Standalone Design: Suitable for installations where dedicated battery-powered AC electricity is required.
• Victron Energy Integration: Works with compatible battery, solar charging, and monitoring equipment.

Best Uses

• Off-Grid Solar Power Systems: Converts energy stored in compatible batteries into AC electricity for standalone photovoltaic installations.
• Recreational Vehicles and Campervans: Provides battery-powered AC electricity for compatible appliances and electronics.
• Marine Electrical Systems: Supports appropriately installed onboard AC equipment in battery-based marine applications.
• Cabins and Remote Properties: Provides AC power for smaller electrical loads where utility electricity is unavailable.
• Mobile Workstations: Supplies portable AC electricity from compatible battery systems.
• Residential Battery Backup: Supports selected electrical loads in appropriately designed standalone backup applications.
• Remote Monitoring Equipment: Suitable for compatible electronic devices requiring stable AC electricity.
• Lighting and Small Appliances: Provides pure sine wave AC power for loads within the inverter's operating limits.
• Battery-Based Renewable Energy Systems: Integrates with compatible external solar charge controllers and battery storage equipment.

Product Specifications

Reliable Pure Sine Wave Power with Victron Phoenix Technology

The Victron Energy Phoenix 24V 800VA 120V Pure Sine Wave Inverter with VE.Direct & NEMA GFCI PIN241800510 combines efficient DC-to-AC power conversion, intelligent ECO mode, configurable battery protection, VE.Direct communication, and a GFCI-protected AC receptacle. Designed for compatible 24V battery systems, it provides a practical standalone inverter solution for off-grid, mobile, marine, and battery-based power applications.
