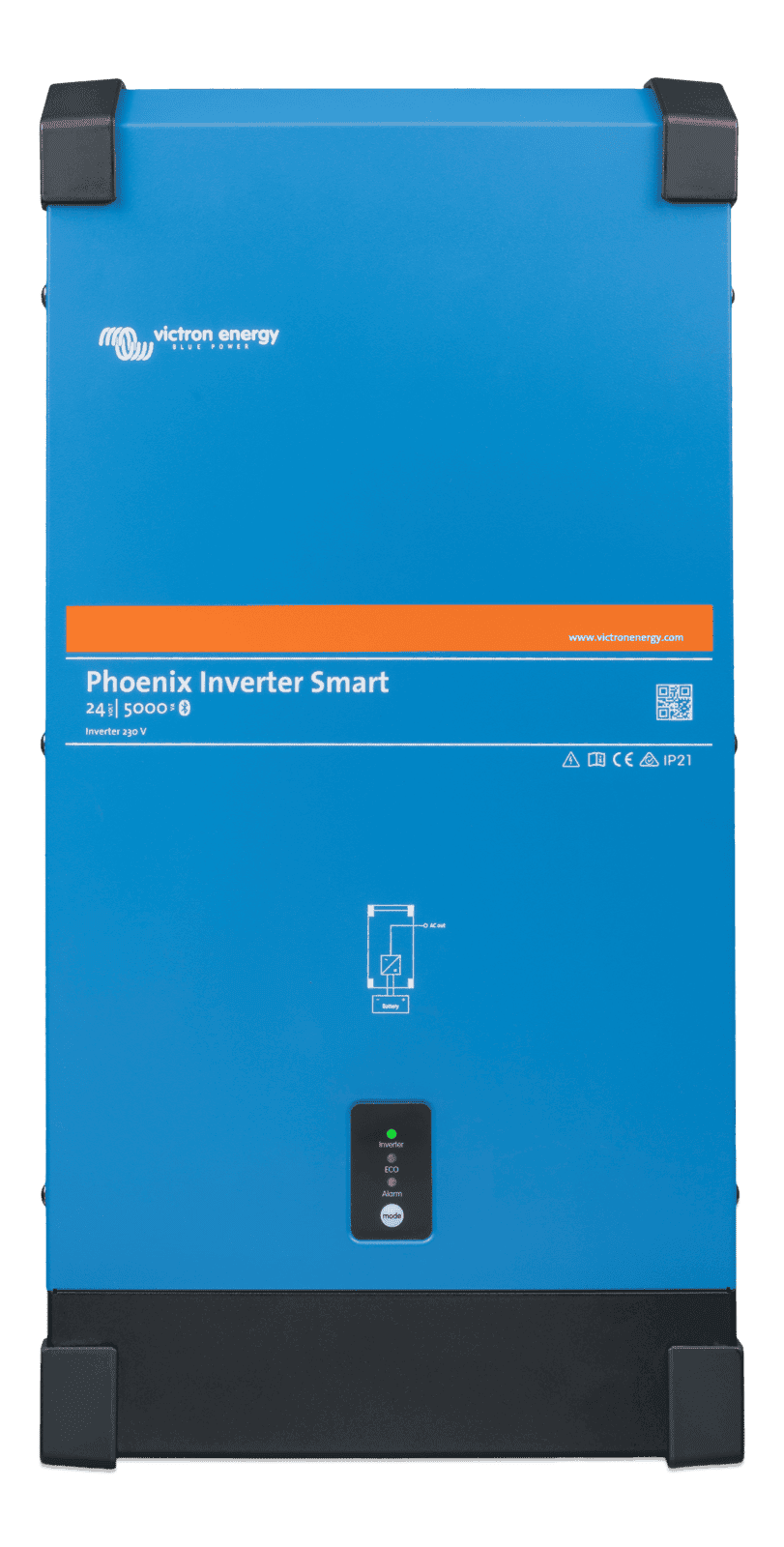

Victron Phoenix Inverter Smart 24/5000 230VAC Sine-Wave Inverter

Victron Phoenix Inverter Smart 24/5000 230VAC Sine-Wave Inverter

Regular price $1,400
Sale price $1,400 Regular price
SOLD OUT
Leave a Review

MPN No: 24/5000(SMART)

Victron Phoenix Inverter Smart 24/5000 230VAC Sine-Wave Inverter

Victron Phoenix Inverter Smart 24/5000 230VAC Sine-Wave Inverter

Regular price $1,400
Sale price $1,400 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
63.9 lb
Dimension
23.4 x 11.6 x 6.3 inches

Victron Phoenix Inverter Smart 24/5000 230VAC Sine-Wave Inverter

The Victron Phoenix Inverter Smart 24/5000 combines state-of-the-art technology and smart features for efficient power conversion. Offering a pure sine-wave output, it ensures compatibility with all types of appliances and sensitive electronics.

  • Built-in Bluetooth for easy configuration and monitoring via a smartphone or tablet.
  • Dynamic cut-off and ECO mode for energy savings.
  • Proven reliability with protection against overheating, overloads, and high ambient temperatures.
  • High start-up power to start demanding loads.
  • Remote on/off capabilities for convenient control.

Technology and Overview

Features advanced technology ensuring reliable performance and high efficiency for a wide range of applications.

Installation and Compatibility Overview

Designed for easy installation and broad compatibility, offering versatile integration into various power systems.

Benefits and Applications Overview

Enhances system efficiency, reliability, and offers smart monitoring and control options for improved power management.

Specifications

Specification Values
Phoenix Inverter Smart 24/5000
Parallel and 3-phase operation No
Input voltage range 9.3 – 17V 18.6 – 34V 37.2 – 68V
Output Output voltage: 230 VAC ±2 % 50 Hz or 60 Hz ± 0.1 % (1)
Cont. output power at 25 ºC (1) 5000 VA
Cont. output power at 25 ºC 4000 W
Cont. output power at 40 ºC 3700 W
Cont. output power at 65 ºC 2800 W
Peak power 10000 W
Dynamic (load dependent) DC low shut down (fully configurable) Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
Max. efficiency 12/ 24 /48 V 95 / 96 %
Zero load power 12 / 24 / 48 V 18 / 20 W
Zero load power in ECO mode 2.2 / 3.2 W
Programmable relay (2) Yes
Stop & start power ECO-mode adjustable
Protection (3) a - g
Bluetooth wireless communication For remote monitoring and system integration
VE.Direct communication port For remote monitoring and system integration
Remote on-off Yes
Common Characteristics Operating temperature range: -40 to +65 ºC (fan assisted cooling)
Humidity (non-condensing): max 95 %
Common Characteristics Material & Colour: steel (blue RAL 5012; and black RAL 9017) Protection category: IP21
Battery-connection 24 V: 2+2 M8 bolts
48 V: M8 bolts
230 VAC-connection Screw terminals
Safety EN 60335-1
Emission Immunity EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3
Automotive Directive ECE R10-5
Warranty 5 years / extensions up to 10
