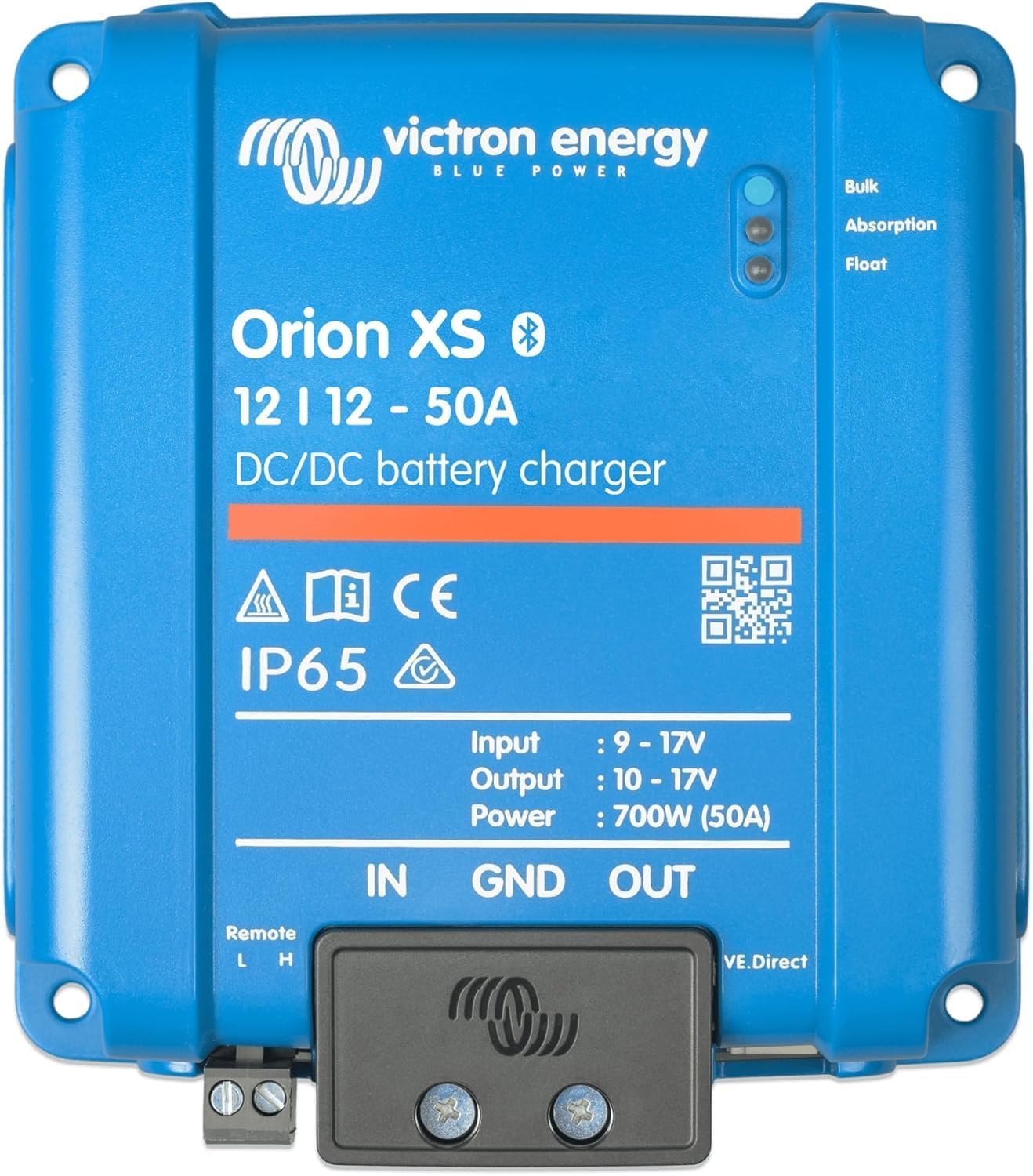

Victron Orion XS 12/12-50A DC-DC ORI121217040 Battery Charger
ORI121217040
Specifications
Victron Orion XS 12/12-50A DC-DC ORI121217040 Battery Charger
Key Features
- 700W Continuous Power Output – Ensures stable and efficient charging.
- Wide Input Voltage Range: 9 – 17V DC, adjustable output voltage (10 – 17V).
- High Efficiency: Up to 98.5% peak efficiency for optimal energy utilization.
- Bluetooth Smart Technology: Monitor and configure settings via the VictronConnect App.
- IP65 Protection: Fully sealed design protects against dust and heavy rain.
- Adaptive 4-Stage Charging Algorithm: Enhances battery performance and lifespan.
- Remote On/Off Control: Switch the unit on/off remotely using an external switch or Battery Management System (BMS).
- Parallel Operation: Supports an unlimited number of units in parallel to increase output current.
Applications
- Dual-battery systems in marine, RV, and off-grid applications
- Charging auxiliary batteries from alternators (smart and conventional)
- Solar power systems requiring precise battery voltage regulation
Installation
The Orion XS 12/12-50A features screw terminal connections and can be wall-mounted or integrated into a vehicle electrical system. It supports VE.Smart Networking, enabling wireless communication with Victron SmartShunt, BMV monitors, and Smart Battery Sense for optimized charging parameters.
Advanced Technology
The built-in Bluetooth module allows seamless monitoring, configuration, and firmware updates through the VictronConnect App. It also features low-temperature shutdown and undervoltage protection, preventing damage to lithium batteries.
About Victron Energy
Victron Energy is a world leader in off-grid power solutions, providing high-quality energy management systems for marine, RV, industrial, and solar applications. Their robust and innovative designs ensure reliable power supply in demanding environments.
Specifications
| Parameter | Details |
|---|---|
| Model Number | ORI121217040 |
| Input Voltage Range | 9 – 17 VDC |
| Output Voltage | Adjustable (10 – 17 VDC) |
| Maximum Output Power | 700W |
| Maximum Efficiency | 98.5% |
| Maximum Current Output | 50A |
| No-Load Current Consumption | < 100mA |
| Standby Power Consumption | < 1.5mA |
| Ingress Protection | IP65 (Dustproof & Waterproof) |
| Mounting Options | Wall-mounted / Screw terminals |
| Communication | Bluetooth Smart, VE.Smart Networking, VE.Direct |
| Weight | 0.73 lbs |
| Dimensions (H x W x D) | 5.4 x 4.85 x 1.6 inches |
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
