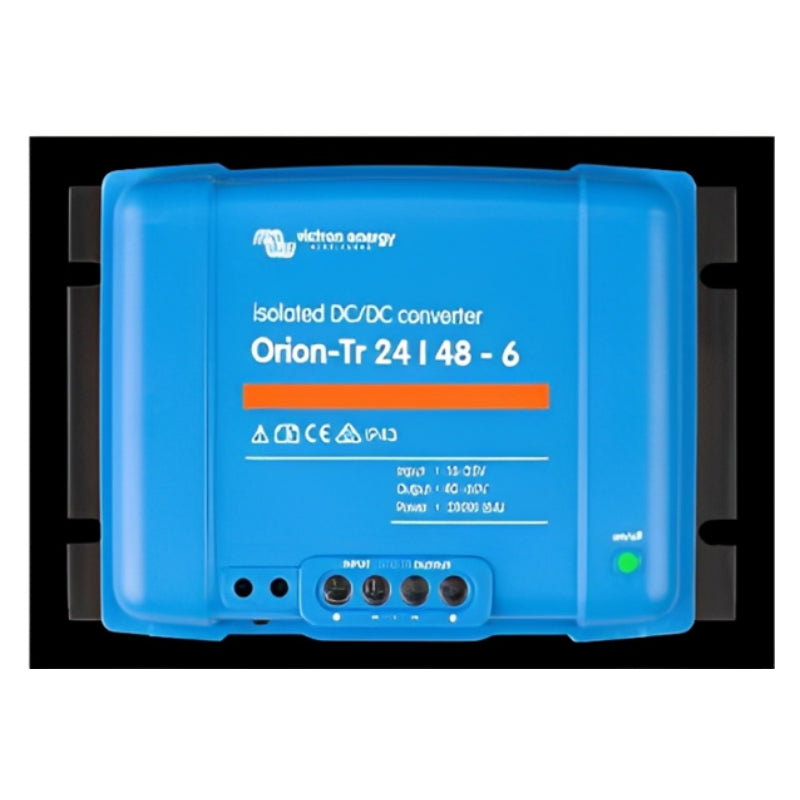

Victron ORI244828110 Orion-Tr 24/48-6A (280W)

Victron ORI244828110 Orion-Tr 24/48-6A (280W)

Regular price $103.05
Sale price $103.05 Regular price
100 IN STOCK
No reviews
Leave a Review

MPN No: ORI244828110

Victron ORI244828110 Orion-Tr 24/48-6A (280W)

Victron ORI244828110 Orion-Tr 24/48-6A (280W)

No reviews
Leave a Review
Regular price $103.05
Sale price $103.05 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Victron ORI244828110 Orion-Tr 24/48-6A (280W)

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch


SPECIFICATIONS

Model ORI244828110
Series -
Manufacturer Victron


GENERAL SPECIFICATION

Input voltage range (1) 16-35V
Under voltage shut down 14V
Under voltage restart 15V
Nominal output voltage 48,2V
Output voltage adjust range 40-60V
Output voltage tolerance +/- 0,2V
Output noise 2mV rms
Short circuit output current 25A
Cont. output power at 25°C 320W
Cont. output power at 40°C 280W
Efficiency 0.89
Off load current < 120 mA
Operating temperature range -20 to +55°C
Humidity Max. 95% non-condensing
DC connection Screw terminals


Warranty

  • 5 Years

* Refer to warranty document for terms and conditions
Documentation

Data Sheet

Detailed Information

Select a cool, dry and ventilated area.

Connect the input supply cables.

Optional remote on/off: replace the wire bridge on the green connector by a switch (switched current is less than 100mA), or remove the wire bridge and connect the left-hand terminal of the green connector to the battery plus with a switch (this could for example be the engine run/stop switch).

Adjustable output voltage: The default values are 12,2V, 24,2V or 48,2V, depending on the model. The output voltage can be set between approximately - 15% to + 25% of the default output voltage by turning the potentiometer. Turn counter clockwise to decrease the output voltage. Turn clockwise to increase the output voltage.

The output is overload and short circuit proof. The converters can therefore be connected in parallel, and can be used to float-charge a battery. (always adjust the output voltage before connecting in parallel or connecting a battery)
