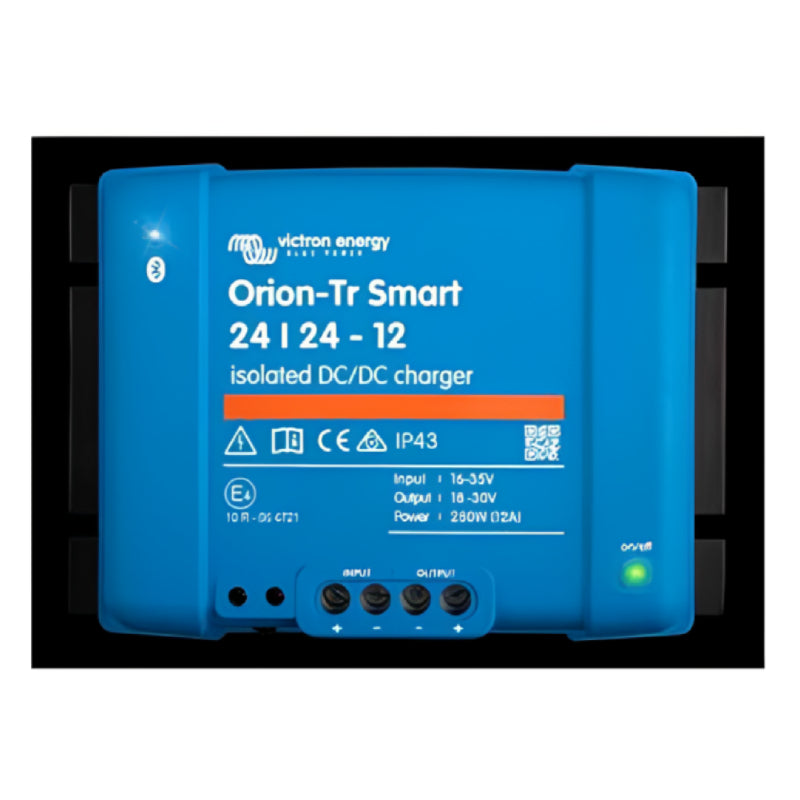

Victron ORI242428120 Orion-Tr Smart 24/24-12A (280W) Isolated DC-DC charger

Victron ORI242428120 Orion-Tr Smart 24/24-12A (280W) Isolated DC-DC charger

$144.41
$144.41

Victron ORI242428120 Orion-Tr Smart 24/24-12A (280W) Isolated DC-DC charger

Victron ORI242428120 Orion-Tr Smart 24/24-12A (280W) Isolated DC-DC charger

No reviews
$144.41
$144.41
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
3 lb
Dimension
(h x w x d) (5.1 x 7.3 x 2.8)

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. It's designed for use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch. It also features an engine running detection mechanism. The Orion Tr-Smart charger is versatile as it can be used in both 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W, and you can connect unlimited multiple units in parallel to increase output power.

SPECIFICATIONS

  • Model: ORI242428120
  • Series: -
  • Manufacturer: Victron

GENERAL SPECIFICATION

  • Input voltage range (1): 16-35V
  • Under voltage shut down: 14V
  • Under voltage restart: 15V
  • Nominal output voltage: 24,2V
  • Output voltage adjust range: 20-30V
  • Output voltage tolerance: +/- 0,2V
  • Output noise: 2mV rms
  • Short circuit output current: 30A
  • Cont. output power at 25°C: 320W
  • Cont. output power at 40°C: 280W
  • Efficiency: 0.89
  • No load input current: < 80mA
  • Standby current: Less than 1mA
  • Humidity: Max. 95% non-condensing
  • DC connection: Screw terminals

Warranty: 5 Years

Refer to warranty document for terms and conditions
