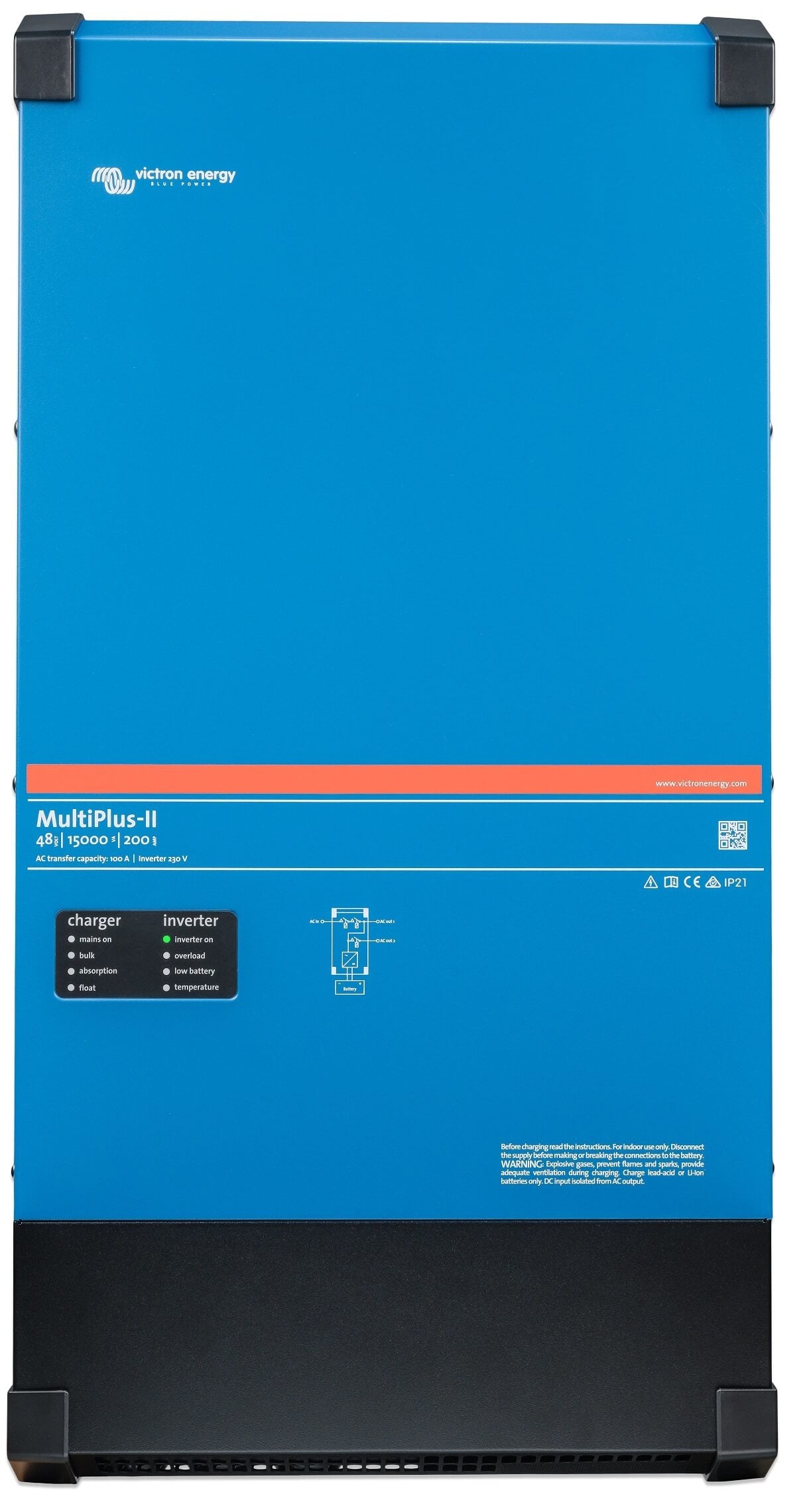

Victron Multiplus-II 48/15000/200-100 230V Inverter / Charger

Victron Multiplus-II 48/15000/200-100 230V Inverter / Charger

Regular price $3,800
Sale price $3,800 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: 48/15000/200-100

Victron Multiplus-II 48/15000/200-100 230V Inverter / Charger

Victron Multiplus-II 48/15000/200-100 230V Inverter / Charger

No reviews
Leave a Review
Regular price $3,800
Sale price $3,800 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
176.37 lb
Dimension
31.9 x 15.9 x 8.5 inches

Victron Multiplus-II 48/15000/200-100 230V Inverter/Charger

Introducing the Victron Multiplus-II 48/15000/200-100, a highly versatile and robust inverter/charger designed for advanced energy systems. This unit seamlessly integrates multiple energy sources, providing reliable power conversion, sophisticated battery charging, and seamless transfer switching.

  • High power output and efficient energy conversion for large-scale applications.
  • Advanced PowerControl and PowerAssist technology to prevent overload of limited power sources.
  • Seamless integration with solar, grid, and generator power.
  • Dual AC outputs for essential loads and non-essential loads management.
  • Extensive monitoring and control options, including remote management capabilities.

Technology and Overview

Employs cutting-edge technology to ensure optimal performance and compatibility with various energy sources, making it ideal for off-grid, backup, and renewable energy applications.

Installation and Compatibility Overview

Designed for easy installation and compatibility with a wide range of batteries and photovoltaic systems, ensuring a flexible solution for any energy system configuration.

Benefits and Applications Overview

From reducing energy costs to enhancing sustainability, the Victron Multiplus-II is perfect for anyone looking to upgrade their energy system with a powerful, reliable, and versatile inverter/charger.

Specification Values
Model (MultiPlus-II 230V) 48/15000/200-100
PowerControl & PowerAssist Yes
Transfer switch 100 A
Maximum AC input current 100 A
DC Input voltage range 12V - 9,5–17V 24V - 19–33V 48V – 38-66V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (3) 15000 VA
Cont. output power at 65°C 7000 W
Max apparent feed-in power 15000 VA
Peak power 27000 W
Maximum efficiency 95%
Zero load power 55 W
Zero load power in AES mode 39 W
Zero load power in Search mode 6 W
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 14,4 / 28,8 / 57,6 V
Charge voltage 'float' 13,8 / 27,6 / 55,2 V
Storage mode 13,2 / 26,4 / 52,8 V
Max. battery charge current (4) 200 A
Battery temperature sensor Yes
Auxiliary output Yes (50A)
External AC current sensor (optional) 50A or 100A
Programmable relay (5) Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Material & Colour Steel, blue RAL 5012
Protection category IP22
Battery-connection Four M8 bolts
(2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply Please consult the certificates on our website.
Anti-islanding Please consult the certificates on our website.
Warranty 5 years / extensions up to 10
