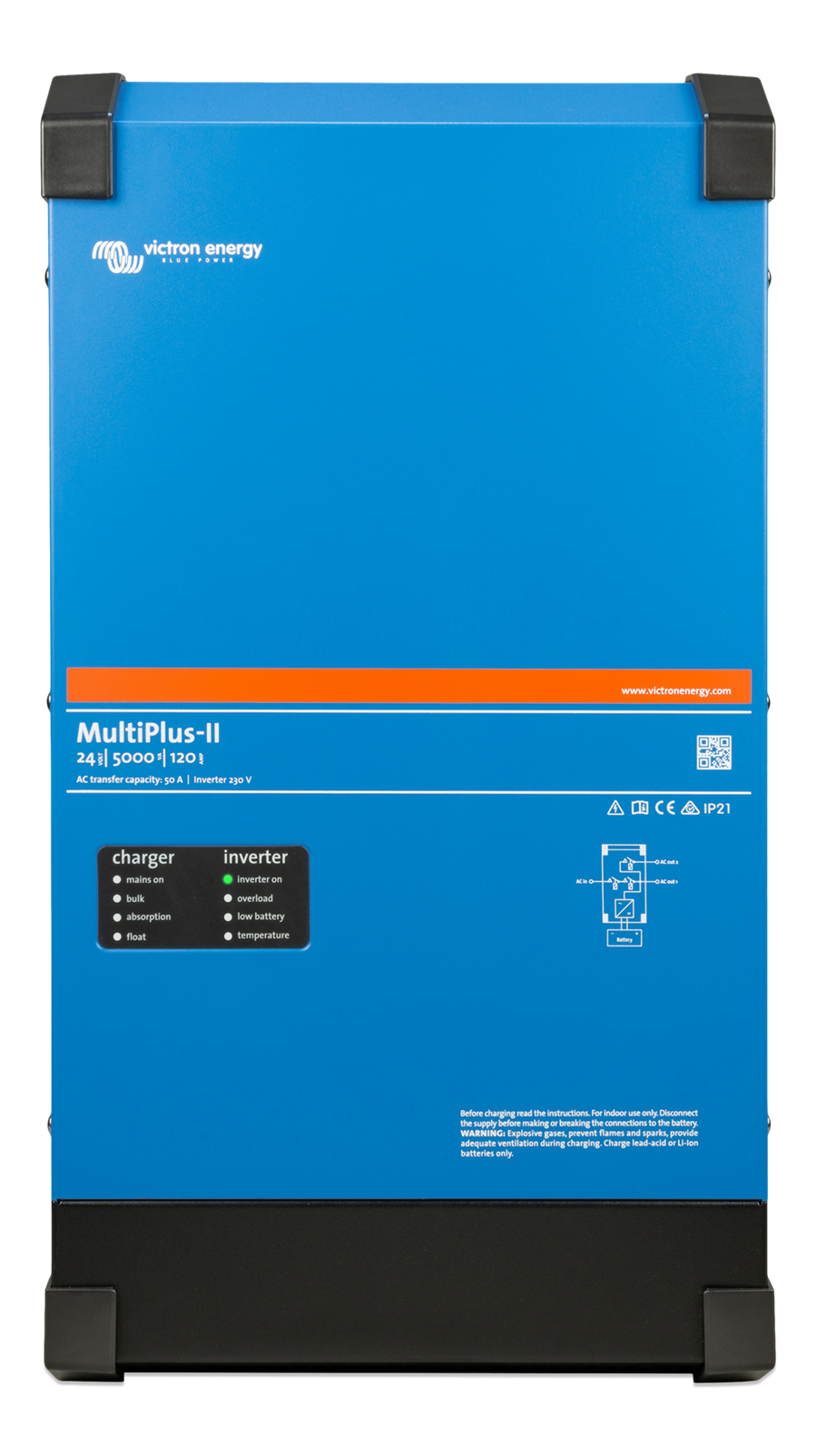

Victron Multiplus-II 24/5000/120-50 230V Inverter / Charger

Victron Multiplus-II 24/5000/120-50 230V Inverter / Charger

Regular price $1,999
Sale price $1,999 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: 24/5000/120-50

Victron Multiplus-II 24/5000/120-50 230V Inverter / Charger

Victron Multiplus-II 24/5000/120-50 230V Inverter / Charger

No reviews
Leave a Review
Regular price $1,999
Sale price $1,999 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
66.14 lb
Dimension
23.9 x 12.9 x 5.9 inches

Victron Multiplus-II 24/5000/120-50 230V Inverter/Charger

Introducing the Victron Multiplus-II 24/5000/120-50, a powerhouse inverter/charger designed for versatile energy solutions. Perfect for off-grid, backup, and solar integration, this unit combines efficiency with durability, ensuring your energy needs are met with reliability.

  • Dual AC outputs for uninterrupted power supply and additional load management.
  • PowerAssist technology to prevent overload from limited AC sources.
  • Seamless integration with solar and storage solutions for energy independence.
  • Remote monitoring and control for easy management of your energy system.
  • Scalable design for parallel and three-phase configurations to meet growing energy demands.

Technology and Overview

Featuring advanced technology for optimal power conversion and battery charging, ensuring your system operates at peak efficiency.

Installation and Compatibility Overview

Engineered for easy installation and compatibility with a wide range of batteries and PV systems, offering a flexible solution for any setup.

Benefits and Applications Overview

From reducing energy costs to providing reliable power during outages, the Victron Multiplus-II is ideal for a variety of applications, ensuring energy independence and sustainability.

Specification Values
Model (MultiPlus-II 230V) 24/5000/120-50
PowerControl & PowerAssist Yes
Transfer switch 50 A
Maximum AC input current 50 A
DC Input voltage range 12V - 9,5–17V 24V - 19–33V 48V – 38-66 V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (3) 5000 VA
Cont. output power at 65°C 3000 W
Max apparent feed-in power 5000 VA
Peak power 9000 W
Maximum efficiency 96%
Zero load power 18 W
Zero load power in AES mode 12 W
Zero load power in Search mode 2 W
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 14,4 / 28,8 / 57,6 V
Charge voltage 'float' 13,8 / 27,6 / 55,2 V
Storage mode 13,2 / 26,4 / 52,8 V
Max. battery charge current (4) 120 / 70 A
Battery temperature sensor Yes
Auxiliary output Yes (32A)
External AC current sensor (optional) 50A or 100A
Programmable relay (5) Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Material & Colour Steel, blue RAL 5012
Protection category IP22
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² (6 AWG)
Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply Please consult the certificates on our website.
Anti-islanding Please consult the certificates on our website.
Warranty 5 years / extensions up to 10
