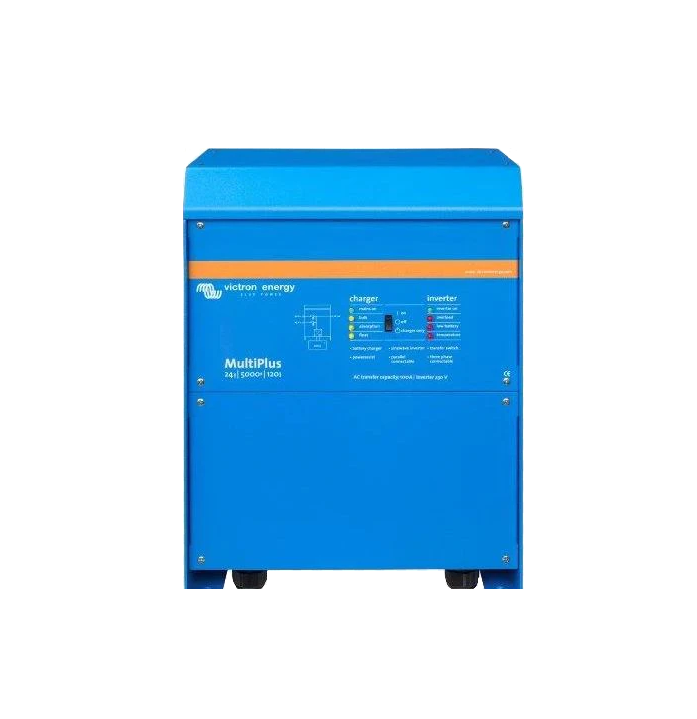

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

$1,899 -->
-% $1,899
SOLD OUT
Leave a Review

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

Victron Energy
MPN No: 24/5000/120
Out Of Stock
$1,899 -->
-% $1,899

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Contact us for Delivery Date

Payment

We offer multiple secure payment options for your convenience

All Victron Energy products All Inverters products

View full details
$1,899 -->
-% $1,899
Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

MPN No:

24/5000/120

Out Of Stock
Contact us for Delivery Date
$1,899 -->
-% $1,899
Sold out

Specifications

.PDF
Datasheet
.PDF
Datasheet

Victron MultiPlus 24/5000/120-100 230V Inverter / Charger

Introducing the versatile and powerful Victron MultiPlus 24/5000/120-100 230V Inverter / Charger, designed for unparalleled energy management. This innovative device combines the functionality of an inverter and charger, offering seamless integration into various energy systems, enhancing both efficiency and reliability.

  • Two AC outputs with no-break functionality to ensure continuous power during grid failures.
  • Parallel operation capability for virtually unlimited power, supporting up to 6 units.
  • Advanced PowerControl and PowerAssist to manage generator, shore, or grid power effectively.
  • Compatibility with off-grid, grid-connected, and hybrid PV systems for versatile use.
  • Easy configuration and monitoring with multiple options, including remote management.

Technology and Overview

The MultiPlus features cutting-edge technology for efficient power conversion, robust charging capabilities, and intelligent energy management, ensuring optimal performance across a range of applications.

Installation and Compatibility Overview

Designed for easy integration, the MultiPlus is compatible with various systems, supporting both stand-alone and complex configurations with intuitive software tools for setup and management.

Benefits and Applications Overview

This inverter/charger offers significant benefits, including cost savings, environmental impact reduction, and enhanced system resilience, making it ideal for a wide range of applications from residential to commercial settings.

Specifications

Specification Values
MultiPlus 24 Volt - 48 Volt 24/5000/120
PowerControl Yes
PowerAssist Yes
Transfer switch (A) 100
Input voltage range (V DC) 9,5 – 17V 19 – 33V 38 – 66V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (VA) (3) 5000
Cont. output power at 25°C (W) 4000
Cont. output power at 40°C (W) 3700
Cont. output power at 65°C (W) 3000
Peak power (W) 10
Maximum efficiency (%) 94 / 95
Zero load power (W) 30 / 35
Zero load power in AES mode (W) 25 / 30
Zero load power in Search mode (W) 10 / 15
AC Input Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Charge voltage 'absorption' (V DC) 14,4 / 28,8 / 57,6
Charge voltage 'float' (V DC) 13,8 / 27,6 / 55,2
Storage mode (V DC) 13,2 / 26,4 / 52,8
Charge current house battery (A) (4) 120 / 70
Charge current starter battery (A) 4 (12 V and 24 V models only)
Battery temperature sensor yes
Auxiliary output (5) Yes (50A)
Programmable relay (6) Yes
Protection (2) a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes
Remote on-off Yes
Common Characteristics Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection battery cables of 1.5 meter
230 V AC-connection M6 bolts
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
