Victron Lynx Shunt VE.Can M10 LYN040102110

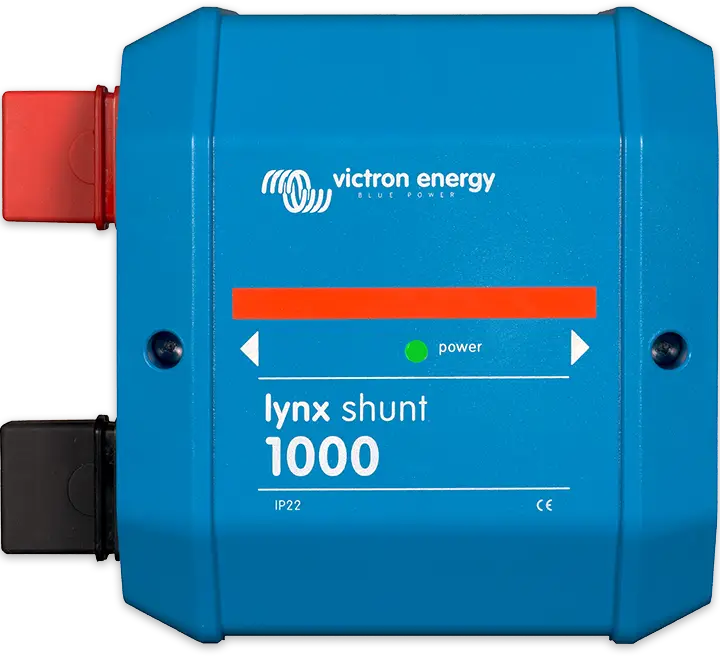

The Victron Lynx Shunt VE.Can M10 (Part No. LYN040102110) is an intelligent DC busbar and battery monitoring system designed for use with Victron Energy’s modular Lynx Distribution System. It integrates a 1000A shunt, a battery monitor, and a slot for the main system fuse, all in one rugged enclosure.
Communication with GX devices is achieved via VE.Can, and it is compatible with the Victron VRM portal for remote monitoring. The M10 model includes a dummy busbar for relocating the fuse, ideal for systems requiring higher-rated or external fuse locations.
Key Benefits
High Current Handling: Rated for up to 1000A continuous DC current.
Integrated Battery Monitoring: Measures voltage, current, and state-of-charge with precision.
Main Fuse Integration: Slot for main system fuse or optional external fuse busbar (included with M10).
Seamless Communication: Connects to GX devices via VE.Can for full system visibility.
Modular Compatibility: Works with Lynx Distributor, Power In, and Victron Smart BMS systems.
Special Technology
VE.Can Communication: Enables real-time monitoring through Victron Cerbo GX and VRM portal.
Battery Type Agnostic: Compatible with both lead-acid and lithium battery chemistries.
Alarm Relay: Built-in potential-free contact for external system alerts.
Modular Distribution Integration: Designed for use with Lynx modular busbar systems (M10 configuration).
Temperature Sensing: Built-in terminal for included temperature sensor.
Warranty
The Victron LYN040102110 is backed by a 5-year limited manufacturer warranty covering defects in materials and workmanship under normal use.
Best Use
Off-Grid and Backup Systems: Provides accurate battery state-of-charge and current measurements.
Marine and RV Installations: Rugged, compact, and compatible with space-constrained setups.
Advanced Solar + Storage: Integrates into large Victron Energy DC systems for fused battery distribution.
Remote Monitoring: Fully compatible with GX devices and the Victron Remote Management platform.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | LYN040102110 |
| System Voltage | 12V / 24V / 48V DC |
| Continuous Current Rating | 1000A DC |
| VE.Can Communication | Yes (2x RJ45 with terminators) |
| Power Consumption | 60 mA @ 12V, 33 mA @ 24V, 20 mA @ 48V |
| Alarm Relay | 3 A @ 30 VDC / 250 VAC |
| Included Accessories | RJ45 terminators, temperature sensor, dummy fuse busbar (M10 only) |
| Compatible Fuses | CNN, ANL, or Mega (fuse not included) |
| Enclosure Material | ABS Plastic |
| Dimensions (H × W × D) | 7.5 × 7.1 × 3.1 in |
| Weight | 3.1 lbs |
| Protection Class | IP22 |
| Operating Temperature | –40°F to +140°F (–40°C to +60°C) |
| Humidity | Max. 95% (non-condensing) |
| Busbar Size | 8 × 30 mm (tinned copper) |
| Mounting Type | Modular DC busbar system (Lynx compatible) |
| Warranty | 5-Year Limited Warranty |
