Victron Lynx Distributor M10 LYN060102010

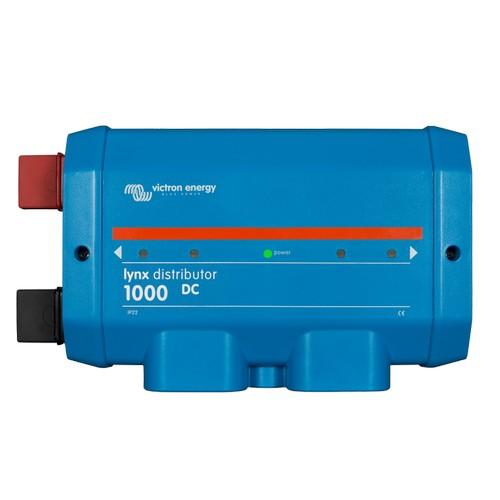

The Victron Lynx Distributor M10 (LYN060102010) is a smart DC busbar designed to manage and fuse multiple battery or DC loads safely and efficiently. It features four MEGA fuse slots and integrates seamlessly with Victron Smart BMS and the Lynx Distribution System. The unit allows advanced fuse monitoring via RJ10 cable and supports high-current DC distribution up to 1000A continuous.
Key Benefits
High Capacity: Supports up to 1000A DC current across 4 fused DC circuits.
Modular Design: Designed to integrate with other Victron Lynx modules for scalable DC systems.
Advanced Fuse Monitoring: Real-time fuse status monitoring when used with Victron Smart BMS.
Smart Connectivity: Enables communication with GX devices and VictronConnect App via RJ10 cable.
Rugged Construction: Durable ABS enclosure with tinned copper busbars and IP22 rating.
Special Technology
Fuse Status LEDs: Visual indication of fuse health with individual red alert LEDs per fuse slot.
RJ10 Communication: Connects with Victron Smart BMS for full system integration and remote alerts.
Flexible Mounting: Multiple configurations supported in vertical or horizontal orientation.
Smart Fuse Detection Logic: Identifies blown fuses dynamically, especially during charge/discharge events.
Interoperable Modules: Pairs seamlessly with Lynx Power In, Lynx Shunt VE.Can, and Smart BMS.
Warranty
Victron Energy backs the Lynx Distributor M10 with a 5-year limited warranty, ensuring quality and long-term peace of mind for mission-critical applications.
Best Use
Off-Grid Battery Banks: Organize and fuse multiple DC circuits safely.
Marine & RV Systems: Ideal for compact DC environments where monitoring is essential.
Energy Storage Systems: Critical infrastructure for hybrid solar and storage setups using Victron gear.
Commercial & Industrial: For high-capacity 48V DC systems with smart monitoring requirements.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | LYN060102010 |
| System Voltage | 12V / 24V / 48V DC |
| Continuous Current Rating | 1000A DC |
| Number of Fused Circuits | 4 (MEGA Fuse) |
| Fuse Monitoring | LED Indicators + RJ10 Communication |
| Communication Port | RJ10 (Power + Data) |
| Compatible Modules | Lynx Smart BMS, Shunt VE.Can, Power In |
| Supported System Voltages | 12V / 24V / 48V |
| Dimensions (H × W × D) | 11.42 × 6.69 × 3.15 in |
| Weight | 4.85 lbs |
| Enclosure Material | ABS Plastic |
| Protection Rating | IP22 |
| Operating Temperature | –40°F to +140°F (–40°C to +60°C) |
| Busbar Size | 8 × 30 mm (Tinned Copper) |
| Max Humidity | 95% (non-condensing) |
| Power Consumption | Max 100mA (with all LEDs on) |
| Reverse Polarity Protection | Yes (except RJ10 port) |
| Warranty | 5-Year Limited Warranty |
