Victron Lynx Class-T Power In M10 LYN060404010

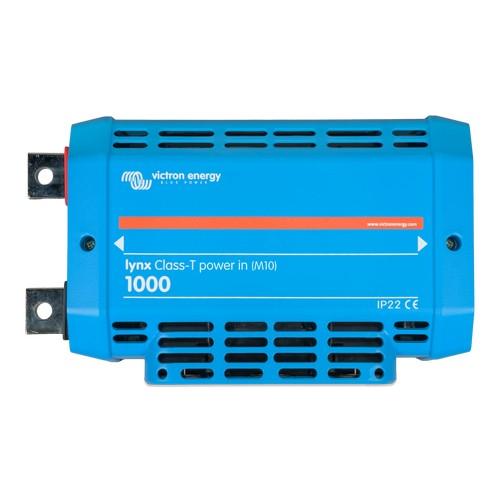

The Victron Lynx Class-T Power In M10 (Part No. LYN060404010) is a high-current DC busbar with built-in fuse locations for up to two Class-T fuses. Designed to distribute DC power safely from lithium battery banks, it integrates seamlessly with other Victron Lynx modules such as the Lynx Smart BMS, Lynx Distributor, and Lynx Power In.
With a 1000A continuous current rating and M10 busbar terminals, this unit is built for high-performance battery systems.
Key Benefits
High Current Capacity: Handles up to 1000A continuous for demanding DC loads.
Class-T Fuse Integration: Accepts 225A–400A Class-T fuses (sold separately) for overcurrent protection.
Dual Battery Input: Supports parallel battery strings with integrated positive/negative busbars.
Modular Compatibility: Easily connects to other Lynx distribution modules using M10 hardware.
Grounding Support: Dedicated terminal for system ground connection.
Special Technology
Victron Modular System: Forms a continuous busbar when connected with Lynx Distributor or Smart BMS.
Precision Engineering: Features robust tinned copper 8x30mm busbars for minimal resistance and heat.
Mechanical Isolation: Comes with rubber sleeves and plastic barriers for safe modular separation.
Fuse Mounts: Accepts 3/8" hardware for Class-T fuses, with properly rated torque points.
Flexible Orientation: Can be installed horizontally or vertically; includes extra orientation stickers.
Warranty
Victron Energy backs the Lynx Class-T Power In with a 5-year limited warranty, covering material and manufacturing defects under normal use.
Best Use
Parallel Lithium Banks: Connect and fuse dual 48V lithium battery strings using Class-T fuses.
Off-Grid Power Systems: Combine with Lynx Smart BMS and Lynx Distributor for integrated battery and load protection.
Commercial Solar Storage: Robust enough for high-demand storage arrays and hybrid systems.
Marine & RV Applications: Clean, compact distribution for mobile or transportable power platforms.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | LYN060404010 |
| System Voltage | 9 – 60 VDC |
| Continuous Current | 1000A DC |
| Fuse Support | 2 × Class-T (225A–400A) |
| Busbar Size | 8 × 30 mm (tinned copper) |
| Fuse Bolt Size | 3/8" bolts |
| Busbar Terminals | M10 |
| Enclosure Material | ABS plastic |
| Operating Temperature | –40°F to +140°F (–40°C to +60°C) |
| Storage Temperature | –40°F to +140°F (–40°C to +60°C) |
| Humidity Rating | Max. 95% (non-condensing) |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | 11 × 6.65 × 3.82 in |
| Weight | 4.63 lbs |
| Mounting | Horizontal or vertical, 5mm mounting holes |
| Warranty | 5-Year Limited Warranty |
