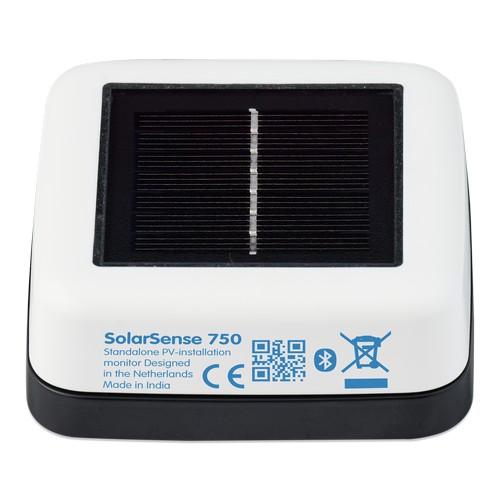

The Victron Energy SolarSense 750 is a self-powered wireless PV monitoring device designed to help monitor photovoltaic system performance and optimize the use of available solar energy. It measures solar irradiance and temperature, estimates available solar power and daily yield, and communicates wirelessly for monitoring through compatible Victron systems. :

The SLS300175100 features an integrated solar panel for self-powering, a rechargeable internal battery, Bluetooth Low Energy communication using Instant Readout advertisements, IP65 protection, and onboard storage for both short-term trends and long-term historical data. It can be configured and monitored with VictronConnect and can also provide measurement data to a compatible GX device.

Key Technology

• Self-Powered Solar Monitoring
  An integrated solar panel powers the SolarSense 750, eliminating the need for a separate external power connection during normal operation.

• Wireless Communication
  Uses Instant Readout wireless communication via Bluetooth Low Energy advertisements, allowing monitoring without running communication cables to the sensor.

• Real-Time Solar Irradiance Measurement
  Measures current solar irradiance to provide real-time information about the solar energy available at the installation.

• Estimated Solar Power & Yield
  Uses configured PV installation parameters together with sensor measurements to provide expected solar output and estimated daily solar yield.

• Temperature Monitoring
  Measures sensor cell temperature and uses the configured installation temperature compensation to support PV output estimation.

• PV Configuration Planning
  Can serve as a pilot monitoring device for comparing solar yield and available power across different locations, panel orientations, and changing seasonal conditions.

• Onboard Trend Storage
  Stores irradiance, estimated power, and temperature trend data for 31 days.

• Long-Term History
  Stores up to 730 days of historical information including maximum daily irradiance, minimum and maximum estimated solar power, minimum and maximum daily temperature, and estimated daily yield.

• VictronConnect & GX Monitoring
  Supports configuration and monitoring through VictronConnect and can also be enabled as a Bluetooth sensor on compatible Victron GX devices.

• IP65 Protection
  Designed with an IP65 protection category for installation in environments requiring resistance to dust and water ingress.

Best Uses

• PV Performance Monitoring
  Provides solar irradiance, estimated output, temperature, and daily-yield information for monitoring compatible photovoltaic installations.

• Off-Grid Solar Systems
  Useful for understanding available solar power in off-grid systems where excess PV energy may be redirected to additional loads once battery charging requirements are satisfied.

• Grid-Limited PV Systems
  Helps provide information about available solar production where grid constraints or system operating conditions may otherwise leave usable PV energy unutilized.

• PV Site & Orientation Evaluation
  Can be used to compare solar conditions at different locations and panel orientations when evaluating configurations for future PV installations.

• Remote or Difficult-to-Wire Locations
  The self-powered wireless design reduces the need for dedicated power and communication wiring at the monitoring location.

• Victron GX Systems
  Suitable for compatible Victron installations where irradiance, cell temperature, estimated installation power, daily yield, and sensor battery information are required through a GX device.

Product Specifications

Wireless Solar Monitoring for Better PV Energy Management

The Victron Energy SolarSense 750 SLS300175100 combines self-powered operation, wireless communication, real-time irradiance and temperature measurements, estimated PV output, daily-yield monitoring, and extensive onboard data storage. Its integration with VictronConnect and compatible GX devices makes it a versatile monitoring tool for understanding PV conditions and improving the use of available solar energy.
