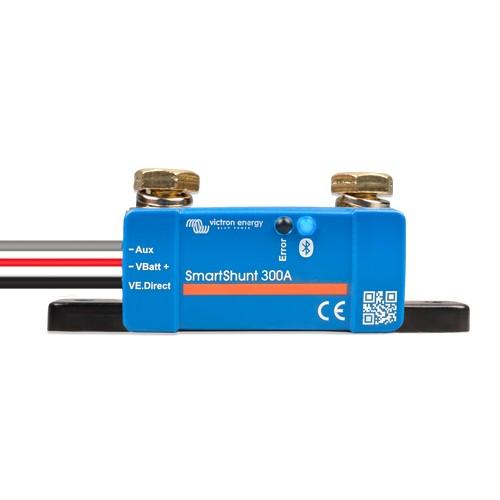

The Victron Energy SmartShunt IP65 300A is an all-in-one battery monitor that eliminates the need for a dedicated display by using a smartphone or tablet with the VictronConnect app. The SmartShunt monitors important battery parameters including state of charge, time to go, current, voltage, consumed amp-hours, and historical information while providing a clean installation with minimal wiring.

The SHU065130050 combines a 300A shunt and battery-monitoring electronics into a single IP65-protected unit. Built-in Bluetooth provides wireless access through VictronConnect, while the VE.Direct port enables integration with compatible Victron GX devices. An auxiliary input can also be configured for monitoring a second battery, battery-bank midpoint, or temperature when used with the appropriate sensor.

Key Technology

• 300A Smart Battery Monitoring
  Combines the shunt and monitoring electronics into a single device for measuring battery current and tracking battery-bank performance.

• Built-In Bluetooth
  Connects wirelessly to the VictronConnect app, allowing a compatible phone or tablet to function as the battery monitor display.

• IP65 Protection
  Features an IP65 protection category for installations requiring increased resistance to dust and water exposure.

• VE.Direct Connectivity
  Provides a VE.Direct communication port for integration with compatible Victron GX monitoring equipment.

• Configurable Auxiliary Input
  The auxiliary connection can be configured to monitor the voltage of a second battery, monitor battery-bank midpoint, or measure temperature with an optional temperature sensor.

• State-of-Charge Tracking
  Calculates and displays battery state of charge, consumed amp-hours, time remaining, voltage, and current through VictronConnect or compatible connected monitoring equipment.

• 46-Day Trend Storage
  Stores battery voltage, current, state of charge, and configured auxiliary-input trend data for up to 46 days.

• Low Power Consumption
  Designed for continuous battery monitoring with a current draw of less than 1mA.

Best Uses

• Battery Bank Monitoring
  Ideal for monitoring battery state of charge, current flow, voltage, consumed energy, and remaining operating time.

• Solar Energy Storage Systems
  Provides detailed battery information for compatible solar and battery-based electrical systems.

• Marine Electrical Systems
  The IP65 construction makes the SmartShunt well suited to appropriately installed marine battery-monitoring applications.

• RV & Mobile Power Systems
  Provides detailed battery monitoring while minimizing the need for a separate display and additional display wiring.

• Victron GX Systems
  Can provide battery information to compatible GX devices through its VE.Direct interface.

• Dual-Battery & Midpoint Monitoring
  The auxiliary input provides additional monitoring flexibility for a second battery voltage or battery-bank midpoint.

Product Specifications

Connected Battery Monitoring with IP65 Protection

The Victron Energy SmartShunt IP65 300A SHU065130050 combines accurate battery monitoring, Bluetooth connectivity, VE.Direct communication, flexible auxiliary measurements, and onboard trend storage in a compact all-in-one monitoring solution. It is particularly useful for installations where comprehensive battery information is required without adding a dedicated physical display.
