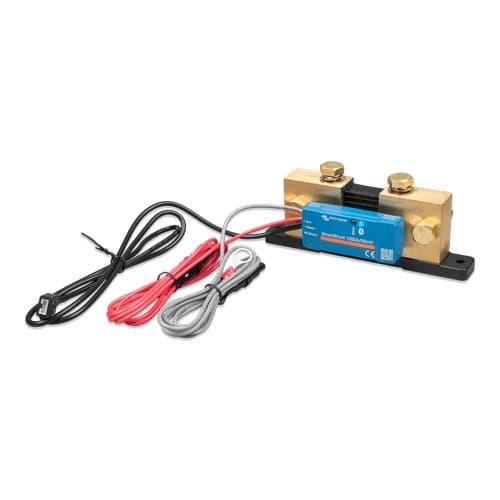

Victron Energy SmartShunt 1000A/50mV IP65 Battery Monitor SHU065210050

The Victron Energy SmartShunt 1000A/50mV IP65 is an all-in-one battery monitor designed to provide detailed battery information without requiring a dedicated display. Instead, a smartphone or tablet serves as the display through Bluetooth and the VictronConnect app, providing access to monitored parameters including state of charge, time to go, historical information, and other battery data.

The SHU065210050 combines a high-current 1000A/50mV shunt with integrated monitoring electronics and an IP65 enclosure. It includes Bluetooth connectivity, a VE.Direct communication port, and an auxiliary input that can be configured for second-battery voltage, battery-bank midpoint, or temperature monitoring with an optional sensor.

Key Technology

• 1000A/50mV Battery Shunt
  Designed for high-current battery systems, combining the shunt and monitoring electronics into one integrated battery-monitoring solution.

• Built-In Bluetooth
  Connects wirelessly to the VictronConnect app on a compatible smartphone or tablet, allowing battery information to be viewed without installing a separate physical display.

• Comprehensive Battery Monitoring
  Tracks key battery information including voltage, current, consumed amp-hours, state of charge, and estimated time remaining.

• VE.Direct Communication
  Features a VE.Direct communication port for integration with compatible Victron equipment, including GX devices when connected with the appropriate VE.Direct cable.

• Multi-Function Auxiliary Input
  The auxiliary connection can be configured to monitor the voltage of a second battery, monitor battery-bank midpoint voltage, or measure battery temperature when the optional temperature sensor is connected.

• IP65 Protection
  The SmartShunt IP65 provides enhanced protection against environmental exposure, making it suitable for properly installed systems where increased resistance to dust and water ingress is required.

• 46-Day Stored Trends
  Stores trend information for battery voltage, current, state of charge, and the selected auxiliary-input parameter for up to 46 days.

• Low Power Consumption
  Draws less than 1mA, minimizing the SmartShunt's own impact on the monitored battery system.

Best Uses

• High-Current Battery Banks
  Suitable for battery systems requiring current monitoring through a 1000A/50mV shunt.

• Solar & Off-Grid Battery Systems
  Provides detailed battery status information for energy-storage systems where understanding available capacity and energy usage is important.

• RV & Mobile Power Systems
  Useful for monitoring house battery banks and electrical consumption in properly configured mobile power systems.

• Marine Battery Systems
  IP65 protection and remote monitoring capabilities make the SmartShunt suitable for properly installed marine electrical systems.

• Victron GX Systems
  Can be integrated with a compatible GX device through VE.Direct for centralized system monitoring.

• Systems Requiring Auxiliary Monitoring
  Useful when monitoring a second battery voltage, battery-bank midpoint, or battery temperature is required in addition to primary battery monitoring.

Product Specifications

High-Current Smart Battery Monitoring with IP65 Protection

The Victron Energy SmartShunt 1000A/50mV IP65 combines high-current battery monitoring, Bluetooth connectivity, VictronConnect support, VE.Direct communication, configurable auxiliary monitoring, and stored trend data in an integrated solution. It is well suited for properly configured battery systems where accurate monitoring and convenient access to battery information are required without adding a dedicated display.
