Victron Energy 1000A/50mV 0.5% Precision Shunt with Dual M10 Connections β SHU102050200

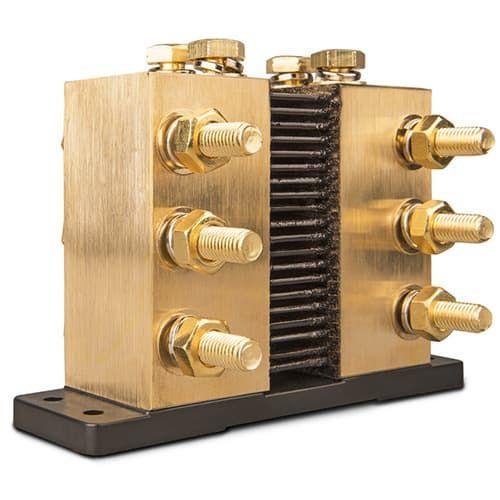

The Victron Energy SHU102050200 is a heavy-duty precision current shunt rated at 1000A / 50mV. It is designed to provide a proportional millivolt signal for compatible battery monitoring and DC current-measurement equipment, allowing high DC currents to be measured without routing the full load current through the monitoring device.
Victron's official drawing identifies this product as the Shunt 1000A/50mV and shows its substantial busbar-style construction, M10 main connection hardware, dedicated measurement terminals, and detailed mounting geometry.
Key Technology
-
1000A Current Rating
Designed for high-current DC measurement applications with a nominal shunt rating of 1000 amps. -
50mV Measurement Output
Produces the specified 50mV shunt signal at rated current for use with compatible current-measurement and battery-monitoring equipment. -
Precision Current Measurement Principle
The monitored DC current passes through the shunt while compatible measurement equipment reads the small voltage drop across its sensing points. -
Heavy-Duty Busbar Construction
Built for high-current DC circuits with substantial conductive connection points and a central resistive shunt element. -
M10 Main Connections
The official dimensional drawing identifies M10 hardware at the primary high-current connection points. -
Dedicated Measurement Terminals
Separate smaller terminals provide connection points for the voltage-sensing circuit used by compatible monitoring equipment. -
Victron Energy Component
Designed for integration into compatible Victron and other appropriately specified DC current-monitoring applications requiring a 1000A/50mV shunt.
Best Uses
-
High-Current Battery Banks
Suitable for battery systems where current measurement requirements exceed the capacity of lower-rated shunts. -
Battery Monitoring Systems
Provides the current-sensing element required by compatible monitoring equipment designed for a 50mV shunt signal. -
Inverter & Battery Systems
Suitable for appropriately designed high-current DC systems incorporating large inverter loads and battery banks. -
Marine DC Systems
Can be incorporated into compatible high-current marine electrical systems requiring centralized battery-current measurement. -
Off-Grid Energy Systems
Suitable for appropriately designed off-grid battery systems where accurate measurement of high DC current is required.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer Part Number | SHU102050200 |
| Product Type | DC Current Measurement Shunt |
| Shunt Rating | 1000 A / 50 mV |
| Voltage Signal at Rated Current | 50 mV |
| Main Connection Hardware | M10 |
| Measurement Terminal Hardware | M4 |
| Overall Length | 168 mm (6.61 in) |
| Main Body Length | 127 Β±0.5 mm (5.00 Β±0.02 in) |
| Main Terminal Center Spacing | 55.5 Β±0.5 mm (2.19 Β±0.02 in) |
| Overall Width | 25.6 Β±0.5 mm (1.01 Β±0.02 in) |
| Busbar Thickness | 9 mm (0.35 in) |
Β
About Victron Energy:
Victron Energy develops power-conversion, battery-management, charging, monitoring, and DC distribution equipment for battery-based electrical systems. Its portfolio includes inverter/chargers, battery chargers, DC-DC converters and chargers, solar charge controllers, batteries, battery management equipment, GX monitoring devices, communications products, and system accessories.
Heavy-Duty Current Measurement for High-Power DC Systems
The Victron Energy SHU102050200 provides a 1000A/50mV current-sensing solution for compatible high-current battery and DC monitoring systems. Its heavy-duty connection design and dedicated sensing terminals make it suitable for installations requiring an external high-capacity shunt for accurate current measurement.
