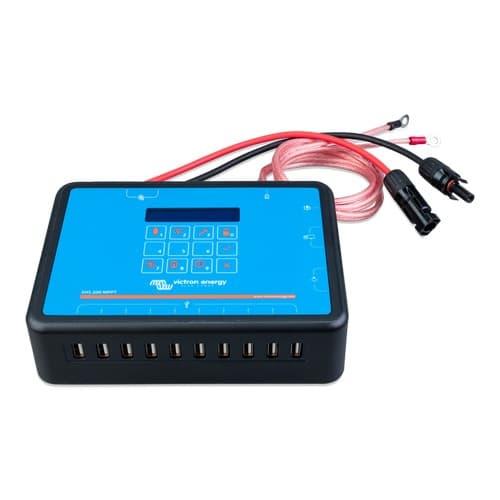

Victron Energy SHS 200 12V 14A MPPT Solar Charge Controller & DC Power System with MC4 SHS121409230

The Victron Energy SHS121409230 SHS 200 MPPT v3.0 MC4 is a smart 12V solar charge controller and DC power distribution system designed for off-grid solar home systems. It combines MPPT solar charging, intelligent battery management, multiple DC load outputs, USB charging, an LCD interface, and PAYGo functionality in a single integrated controller.

Designed for solar arrays up to 200Wp, the SHS 200 uses Maximum Power Point Tracking to improve solar-energy harvest compared with PWM charging. The MC4 version provides dedicated positive and negative PV leads terminated with MC4 connectors for straightforward connection to compatible PV modules.

Key Technology

• 200W MPPT Solar Charging
  Supports up to 200Wp total nominal PV power. Victron states that Maximum Power Point Tracking can improve energy harvest by up to 30% compared with PWM charge controllers.

• 12V Solar Home System
  Designed around a 12V battery system and intended to combine solar charging with direct distribution of power to compatible 12V DC appliances.

• MC4 PV Connection
  The MC4 version uses dedicated positive and negative PV leads terminated with MC4 connectors, simplifying connection to compatible solar modules.

• Smart Multi-Stage Battery Charging
  Intelligent multi-stage charging manages the connected battery, while automatic load disconnect helps protect against excessive battery discharge.

• Automatic Temperature Compensation
  An internal temperature sensor automatically compensates charging voltage according to temperature for more appropriate battery charging.

• Lead-Acid & Lithium Compatibility
  Supports compatible sealed lead-acid and lithium batteries, with suitable battery capacity specified up to 160Ah.

• Integrated DC Power Distribution
  The SHS 200 provides multiple USB and standard 12V DC outputs for powering compatible appliances and accessories directly from the solar home system.

• 10 USB Type-A Ports
  Provides ten USB Type-A charging outputs with an overall maximum current of 10A across all ports and an individual maximum of 1.5A per port. The USB outputs comply with USB Battery Charging 1.2.

• Five Standard 12V DC Outputs
  Provides five standard DC outputs with different current capacities for compatible lighting, electronics, refrigeration, fans, and other DC loads.

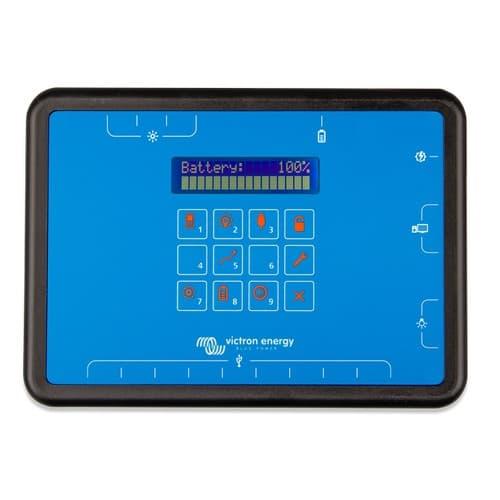

• LCD Screen & Keypad
  The integrated LCD can display usage statistics, battery state of charge, and diagnostic information. The interface supports English, French, and Swahili.

• PAYGo Enabled
  Supports offline Pay-as-you-go operation through keypad activation, allowing the system to be unlocked using recharge codes supplied to the end user.

• OpenPAYGO Token Technology
  Uses the OpenPAYGO token system and is listed as compatible with PaygOps, Angaza, and Paygee PAYGo platforms.

Best Uses

• Off-Grid Solar Home Systems
  Designed for standalone solar installations that use PV modules and battery storage to provide 12V DC electricity where conventional grid service is unavailable or impractical.

• DC Lighting Systems
  Multiple DC outputs make the controller suitable for compatible LED lighting and other low-voltage household loads.

• Mobile Device Charging
  Integrated USB outputs allow compatible phones and other USB-powered equipment to be charged directly from the solar home system.

• DC Appliance Systems
  Suitable for properly sized systems supplying compatible DC televisions, refrigerators, fans, radios, sound systems, and similar equipment. Victron specifically identifies these types of loads as SHS 200 applications.

• PAYGo Solar Programs
  Designed for solar-energy programs using prepaid or pay-as-you-go access models where customers activate system usage through keypad-entered tokens.

• Remote & Rural Electrification
  Provides an integrated approach to solar charging, battery management, and DC distribution for locations requiring a compact standalone electricity solution.

Product Specifications

Integrated MPPT Charging, Battery Management & DC Power Distribution

The Victron Energy SHS121409230 SHS 200 MPPT v3.0 MC4 combines 200Wp MPPT solar charging, smart battery management, 15 integrated DC and USB outputs, MC4 PV connectivity, LCD monitoring, PAYGo functionality, automatic load disconnect, and comprehensive battery protection. It provides an integrated solution for 12V off-grid solar home systems where solar charging, energy storage, and DC appliance distribution need to work together through a single controller.
