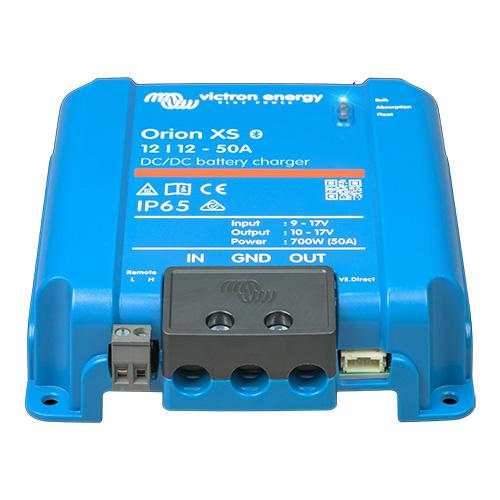

The Victron Energy ORI121217050 Orion XS 12/12-50A is a high-efficiency DC-DC battery charger designed for controlled charging between a 12V starter battery and a 12V auxiliary or service battery. It provides adjustable input and output current up to 50A, continuous output power up to 700W under specified conditions, and a maximum efficiency of 98.5%.

Designed for both conventional and smart alternator systems, the Orion XS combines automatic buck-boost control, engine shutdown detection, configurable four-stage charging, Bluetooth connectivity, VE.Direct communication, and VE.Smart Networking. It can also operate as an adjustable DC power supply when battery-charging functionality is not required.

Key Technology

• 50A Adjustable DC-DC Charging
  Both input and output current limits can be configured from 1A to 50A in 0.1A increments, allowing the charging load to be matched to the alternator, wiring, and battery system.

• Up to 700W Continuous Output
  Provides continuous output power up to 700W at temperatures up to 40°C under the specified cooling conditions. Victron notes that this nominal power corresponds to a typical 14V × 50A operating point. :

• 98.5% Maximum Efficiency
  High conversion efficiency helps reduce energy loss and heat generation in demanding DC-DC charging applications.

• Automatic Buck-Boost Control
  Maintains controlled output even when input voltage varies. The output voltage remains independent of input voltage within the specified operating range, while current is prevented from exceeding the configured limit.

• Smart Alternator Compatibility
  Integrated engine shutdown detection determines whether the engine and alternator are operating, helping the charger work with both conventional alternators and modern ECU-controlled smart alternators.

• Four-Stage Adaptive Charging
  Uses a configurable Bulk – Absorption – Float – Storage charging process to properly manage the connected service battery.

• Programmable Battery Profiles
  Provides fully programmable charging algorithms along with eight pre-programmed battery settings through VictronConnect, allowing configuration for different compatible battery chemistries.

• Built-In Bluetooth Smart
  Connect directly through the VictronConnect app to configure charging parameters, monitor operation, view warnings and alarms, and update software from compatible mobile devices.

• VE.Direct & GX Integration
  The integrated VE.Direct interface allows connection to compatible Victron GX devices for system monitoring and control, including remote monitoring through the VRM portal when the GX system has internet connectivity.

• VE.Smart Networking
  Can receive remote voltage, temperature, and current sensing information from compatible devices such as a BMV, SmartShunt, or Smart Battery Sense to optimize charging parameters.

• Fanless & IP65 Protected
  Uses natural convection rather than a cooling fan for silent operation. The IP65 enclosure is dust-tight and protected against heavy rain.

Best Uses

• Starter-to-Service Battery Charging
  Designed to provide controlled charging from a vehicle starter-battery and alternator system to an auxiliary or service battery.

• Smart Alternator Vehicles
  Well suited to modern vehicles using variable-voltage smart alternators, where controlled DC-DC charging helps maintain reliable auxiliary-battery charging.

• Lithium Battery Systems
  Adjustable charging parameters, current limiting, low-temperature shutdown capability, and BMS control options make the Orion XS suitable for properly configured lithium battery installations.

• RV & Camper Electrical Systems
  Ideal for charging a house or auxiliary battery from a vehicle electrical system while maintaining separation between the starter and service batteries.

• Marine & Mobile Power Systems
  Provides configurable DC-DC charging for compatible marine, mobile, specialty vehicle, and battery-based electrical installations.

• DC Power Supply Applications
  Can be switched from charger mode to power-supply mode, where it maintains a configurable output voltage instead of following a battery charge cycle.

Product Specifications

Advanced 50A DC-DC Charging with Smart System Integration

The Victron Energy ORI121217050 Orion XS 12/12-50A combines 50A configurable charging, up to 700W continuous output, 98.5% maximum efficiency, smart alternator compatibility, adaptive four-stage charging, Bluetooth, VE.Direct, VE.Smart Networking, GX integration, IP65 protection, and fanless operation. It provides a flexible charging solution for modern 12V starter-to-service battery systems requiring precise current control and extensive configuration and monitoring capabilities.
