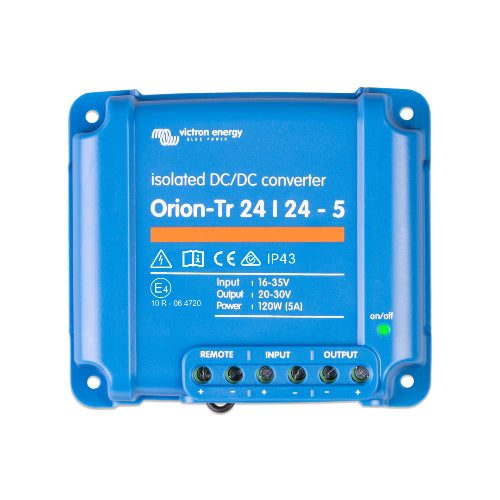

Victron Energy Orion-Tr 24/24-5 (120W) Isolated DC-DC Converter ORI242410110

The Victron Energy ORI242410110 Orion-Tr 24/24-5 is an isolated DC-DC converter designed to provide a stable 24V-class DC output from a compatible nominal 24V source. With 120W continuous output power at 25°C and galvanic isolation between the input, output, and case, it is well suited for applications where electrical separation between DC circuits is required.

The Orion-Tr 24/24-5 operates across a 16–35V DC input range, provides a nominal 24.2V output, and allows output adjustment from 20V to 30V. It delivers 5A continuous output current at nominal voltage and 25°C, with up to 6.3A maximum output current for 10 seconds.

Key Technology

• Isolated DC-DC Conversion
  Provides 200V DC galvanic isolation between the input, output, and case, electrically separating the input and output sides of the converter.

• 120W Continuous Output
  Delivers 120W continuous output power at 25°C and 115W at 40°C for dependable operation in compatible DC systems. :contentReference[oaicite:3]{index=3}

• 5A Continuous Output Current
  Provides 5A continuous output current at nominal output voltage and 25°C, with a maximum output current of 6.3A for 10 seconds.

• Adjustable Output Voltage
  The nominal output is 24.2V DC and can be adjusted across a 20–30V range, providing flexibility for compatible DC loads.

• Wide 16–35V Input Range
  Accepts a DC input from 16V to 35V, allowing operation across the voltage variation commonly encountered in nominal 24V battery systems.

• Remote On/Off Control
  Features a remote on/off terminal that eliminates the need for a high-current switch in the input wiring. The remote input can be operated using a low-power switch or another compatible control signal.

• Short-Circuit Protected
  Victron specifies the Orion-Tr isolated converter range as short-circuit proof, adding protection against output short-circuit conditions.

• Parallel Operation
  Multiple units can be connected in parallel when additional output current is required. Victron states that an unlimited number of units can be paralleled.

• High-Temperature Protection
  Output current is automatically reduced at high ambient temperatures to help protect the converter.

• IP43 Protection
  Provides IP43 protection when installed with the screw terminals oriented downward.

Best Uses

• 24V Battery Systems
  Ideal for powering compatible 24V auxiliary equipment from nominal 24V battery banks while maintaining galvanic isolation between circuits.

• Isolated Auxiliary Circuits
  Suitable where the input and output circuits need electrical separation to help prevent unwanted current paths between different parts of a DC system.

• Vehicle Electrical Systems
  Useful for compatible automotive and mobile DC installations requiring an isolated 24V supply for auxiliary electronics and equipment.

• Marine DC Systems
  Suitable for compatible marine electrical installations where isolated DC conversion is required between the source and auxiliary load circuits.

• Battery-Based Power Systems
  Provides a regulated and adjustable DC supply for compatible equipment in off-grid and battery-based electrical systems.

• Remote-Controlled DC Loads
  The integrated remote on/off terminal makes the converter useful in systems where operation needs to be controlled by a low-power switch or compatible control circuit.

Product Specifications

Reliable Isolated 24V-to-24V DC Conversion

The Victron Energy ORI242410110 Orion-Tr 24/24-5 provides a dependable isolated DC supply for compatible 24V electrical systems. Its 120W continuous output, adjustable output voltage, galvanic isolation, remote on/off control, short-circuit protection, and parallel capability make it a versatile solution for properly designed vehicle, marine, off-grid, and auxiliary DC power systems.
