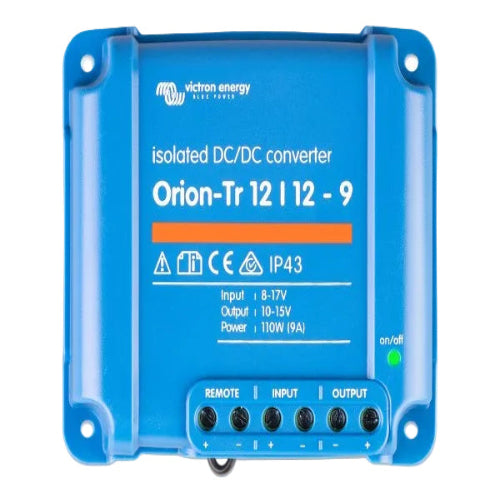

Victron Energy Orion-Tr 12/12-9A (110W) Isolated DC-DC Converter ORI121210110

The Victron Energy Orion-Tr 12/12-9 (110W) is an isolated DC-DC converter designed to provide a stable, adjustable DC supply from a nominal 12V electrical system. It operates across an 8–17V DC input range and provides a nominal 12.2V output with 9A continuous output current at the specified operating condition.

Unlike non-isolated DC-DC converters, the Orion-Tr 12/12-9 provides 200V DC galvanic isolation between the input, output, and case. It also features remote on/off control, short-circuit protection, high-temperature protection, adjustable output voltage, parallel operation capability, and screw-terminal connections. The manufacturer specifically states that this converter is not intended for battery charging.

Key Technology

• Galvanically Isolated DC Conversion
  Provides 200V DC galvanic isolation between the input, output, and case, separating the input and output electrical circuits.

• Adjustable Output Voltage
  The output can be adjusted to suit compatible DC loads, providing greater flexibility than a fixed-output converter.

• 9A Continuous Output
  Provides 9A continuous output current at nominal output voltage and 25°C, with a specified maximum output current of 12.5A for 10 seconds.

• Remote On/Off Control
  The remote on/off terminal eliminates the need for a high-current switch in the input wiring and can be controlled using a low-power switch or another suitable control signal.

• Short-Circuit Protection
  The Orion-Tr converter is short-circuit protected, adding protection for the converter during abnormal output conditions.

• Parallel Operation
  Victron allows an unlimited number of compatible units to be connected in parallel when additional output-current capability is required.

• High-Temperature Protection
  The converter automatically reduces output current at elevated ambient temperatures to protect its power electronics.

• IP43 Protection
  Provides IP43 protection when installed with the screw terminals oriented downward as specified by Victron.

• Integrated Input Fuse
  The 12V-input Orion-Tr model incorporates a non-replaceable input fuse as part of its internal protection design.

Best Uses

• Isolated 12V DC Power Systems
  Ideal when compatible 12V equipment requires galvanic separation between the source and load circuits.

• Vehicle Electrical Systems
  Suitable for compatible automotive and mobile DC systems requiring an isolated, regulated auxiliary power supply.

• Marine DC Systems
  Useful for compatible onboard electrical applications where galvanic separation between DC circuits is required.

• Off-Grid Power Systems
  Provides an isolated DC supply for compatible auxiliary loads in battery-based solar and standalone power systems.

• Sensitive DC Electronics
  Suitable for compatible controls, communications equipment, electronics, and other loads that benefit from an isolated DC supply.

• Adjustable DC Power Applications
  Useful where the connected equipment requires an output voltage that can be adjusted within the converter's specified range.

Product Specifications

Isolated & Adjustable DC Power for 12V Systems

The Victron Energy Orion-Tr 12/12-9 (110W) Isolated DC-DC Converter combines galvanic isolation, adjustable output voltage, remote on/off control, short-circuit protection, and parallel operation capability in a dependable DC power-conversion solution. It is well suited for properly configured 12V electrical systems that require an isolated and regulated auxiliary DC supply.
