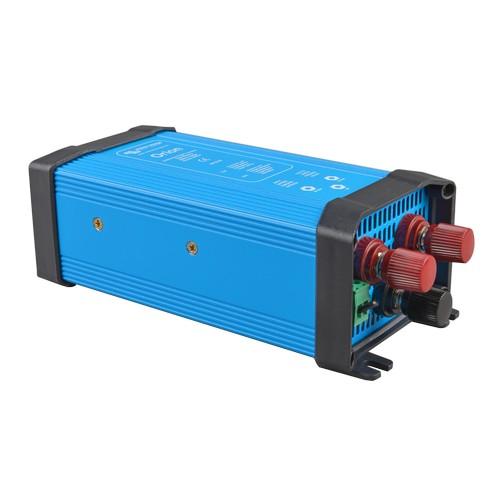

The Victron Energy ORI241280030 Orion 24/12-80 is a high-power, non-isolated DC-DC converter designed to convert power from a nominal 24V electrical system to a regulated 12V-class output. This specific version is equipped with binding-post DC connections, distinguishing it from the ORI241280020 version of the Orion 24/12-80.

With an adjustable output, 80A continuous output current, up to 90A maximum output current, remote on/off control, and temperature-controlled fan cooling, the Orion 24/12-80 provides substantial DC conversion capacity for compatible auxiliary equipment and supported battery-charging applications.

Key Technology

• High-Power 24V-to-12V Conversion
  Designed to provide regulated 12V-class power from a nominal 24V DC electrical system for compatible auxiliary loads and equipment.

• Adjustable Output Voltage
  The integrated potentiometer allows the output voltage to be adjusted for compatible loads and supported battery-charging applications.

• High Current Capacity
  Provides substantial continuous DC output capability for demanding lower-voltage equipment operating from a 24V source.

• Binding-Post Connections
  This specific ORI241280030 variant uses binding-post DC connections, providing an alternative terminal configuration to the M6-bolt version of the Orion 24/12-80.

• Battery Charging Capability
  Victron specifies that adjustable-output models in this Orion family can also be used as battery chargers, such as for a compatible 12V starter or accessory battery in a 24V system.

• Parallel Operation
  Adjustable-output models can be connected in parallel when additional output-current capacity is required, with Victron specifying support for up to five units.

• Remote On/Off
  Allows the converter to be controlled by a suitable low-power switch or engine run/stop signal without requiring a high-current switch in the main input wiring.

• Temperature-Controlled Fan Cooling
  Integrated fan-assisted cooling provides active thermal management during demanding operating conditions.

Best Uses

• 24V-to-12V Auxiliary Systems
  Suitable for operating compatible 12V-class equipment from a nominal 24V battery bank or DC electrical system.

• High-Current DC Loads
  Designed for systems requiring significant lower-voltage DC current for compatible electronics, controls, lighting, and auxiliary equipment.

• Auxiliary Battery Charging
  The adjustable output supports appropriately configured applications where a compatible 12V starter or accessory battery needs to be charged from a 24V system.

• Binding-Post Installations
  Ideal where the binding-post terminal configuration of this specific Orion variant is preferred for the system's DC wiring design.

• Expandable DC Power Systems
  Supported parallel operation provides a path for increasing available output current in properly engineered installations.

Product Specifications

High-Power 24V-to-12V Conversion with Binding-Post Connections

The Victron Energy ORI241280030 Orion 24/12-80 combines high-current DC conversion, adjustable output, supported battery-charging capability, remote control, active cooling, parallel operation, and binding-post DC connections. It provides a versatile solution for compatible systems requiring substantial regulated 12V-class power from a nominal 24V DC source.
